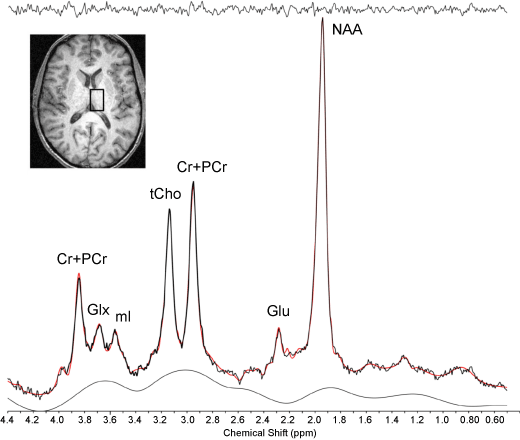

Figure 1: Sample Single Voxel Thalamic 1H Spectrum. Axial anatomical image illustrating the placement of a single voxel (2 x 2 x 3cm) in the right thalamus of a healthy subject acquired at 4.0 Tesla using 2D-JPRESS, and the associated 1H spectrum (below). Abbreviations: tCr (Cr + PCr), total creatine; Glx, glutamine/glutamine/GABA complex; mI, myo-inositol; tCho, total choline; Glu, glutamate; NAA, N-acetylaspartate.
