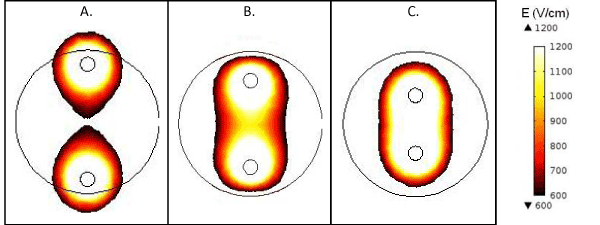

Figure 3: Electric Field Distribution Indicating Electroporated Volumes inside the Tumor Region of 10 mm Diameter for an Applied Voltage of 800 V across Electrodes. Electrodes Separation Distances: A)8mm, B) 6mm, C) 4 mm
