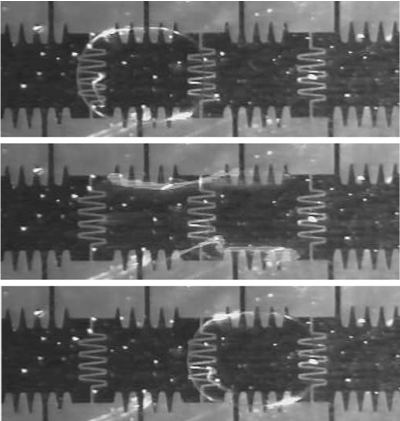

Figure 2: Transportation of a droplet by initially applying voltage to the electrode underneath the droplet in first frame, and then subsequently to the electrodes on the right in the second and third frames. Reprinted with permission from [16].
