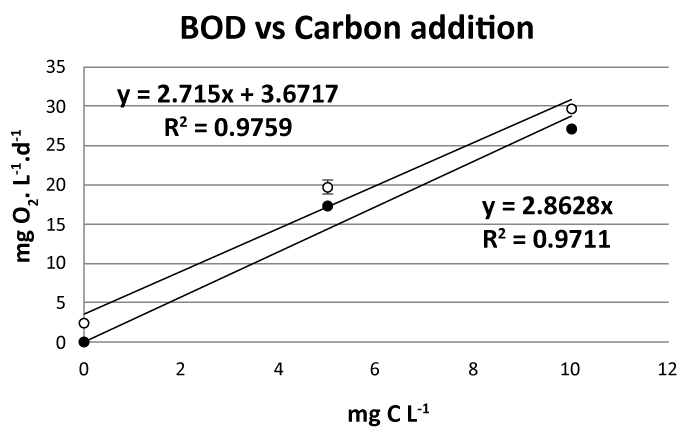

Figure 4: Relationship between BOD and organic carbon. Open circles are actual measured values. In order to determine the concentration of O2 needed to oxidize 1 mg of carbon, closed circles representing zeroed control were included. Each point represents the average of 4 replicates ± one standard deviation.
