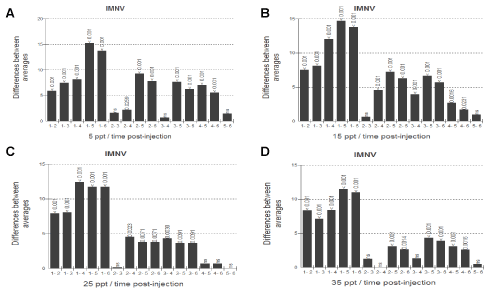

Figure 3: Significant differences in the replication of IMNV in infected shrimp over time. Differences between the logarithm of the mean copy number of IMNV in control shrimps (uninfected, numbered #1) and post-infected individuals at time 0 h (#2), 1.5 h (#3), 3 h (#4), 6 h (#5) and 12 h (#6). The significance level is indicated on top of the bar. The abbreviation “ns” denotes “no statistically significant difference”.
