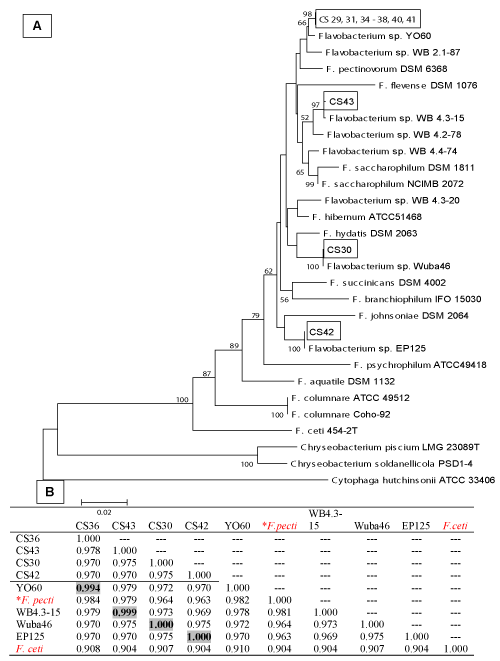

Figure 1: (A) Phylogenetic relationships of the 12 Flavobacterium isolates (CS29-31, 34-38, 40-43), retrieved from moribund coho salmon yolk sac and swim-up fry, identified by constructing a Neighbor-Joining tree with Kimura’s 2-parameter model based on 676bp region of 16S rRNA sequences. The sequences were aligned in RDP. Cytophaga hutchinsonii ATCC 33406 was used as an out group. Bootstrap values greater than 50 were shown in the figure. (B) Similarity index table constructed based on sequence identity of 676bp. CS36 represents the clade of 9 isolates. The highest similarities of the 12 isolates are highlighted.
