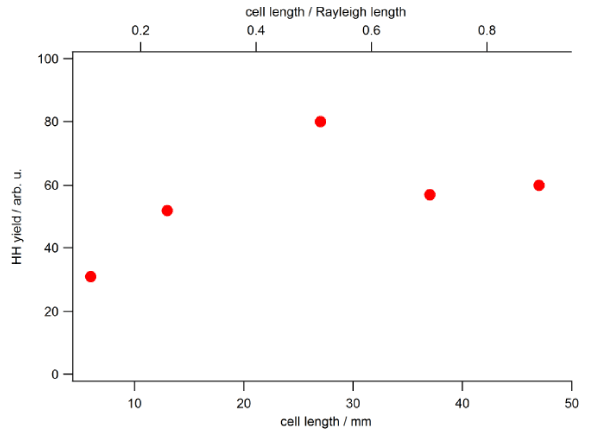

Figure 5:
Efficiency of HHG in argon as a function of HHG cell length. I
laser
= 6•10
13
W/cm
2
, f=2270 mm. The rise and decay is in qualitative agreement with a theoretical model in Ref. 48 assuming an absorption length in the few mm to cm regime.
