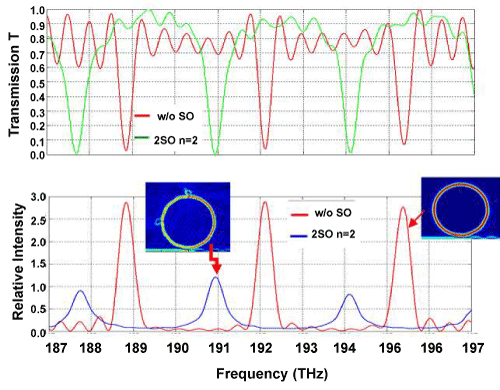

| Figure 6: Upper: transmission of the microring without sensing object (SO) (red) and of the microring with two sensing objects r=1micron and n=2.0 (green). Lower: Resonant modes (relative intensity inside cavity I2) in the microring without SO (red), and with two identical SOs r=1 micron, n=2.0 (blue). |
