Analytical Considerations When Monitoring Pain Medications by LC-MS/MS

Amadeo Pesce1*, Cameron West1, Robert West1, Sergey Latyshev1, David Masters-Moore1, Patrick Friel2, John M. Hughes2, Perla Almazan1, Elizabeth Gonzales1 and Charles Mikel1

1Millennium Research Institute, San Diego, CA, USA

2Agilent Technologies, Santa Clara, CA, USA

*Corresponding Author:
Amadeo Pesce
Millennium Research Institute, San Diego, CA, USA
E-mail: [email protected]

Received date: May 17, 2012; Accepted date: June 23, 2012; Published date: June 28, 2012

Citation: Pesce A, West C, West R, Latyshev S, Masters-Moore D, et al. (2012) Analytical Considerations When Monitoring Pain Medications by LC-MS/MS. J Anal Bioanal Techniques S5:003. doi: 10.4172/2155-9872.S5-003

Copyright: © 2012 Pesce A, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

Visit for more related articles at Journal of Analytical & Bioanalytical Techniques

Abstract

Background: Laboratory urine drug testing of patients on chronic opioid therapy requires providing a large test menu of medications commonly prescribed for this population as well as metabolites and illicit substances. It has been shown that liquid chromatography-tandem mass spectrometry (LC-MS/MS) is the preferred method to analyze urine specimens for these substances.
Purpose of the study: To describe the challenges and some of the techniques to validate the analytical procedures used to identify and quantify these medications and substances.
Methods: Using data obtained from testing over one million specimens, the authors developed a proposed test menu. Potential isobaric interferences were established by using literature references. A list of potentially interfering medications was obtained by using the proposed test menu and the most commonly prescribed medications. Finally, criteria were designed to detect possible carryover.
Results: The LC-MS/MS instrumentation eliminated all potential interferences and provided quantitative data over the test range needed to monitor these patients. Carryover could be eliminated by setting the carryover thresholds for each analyte.
Conclusions: Reference laboratories utilizing LC-MS/MS technology to conduct urine drug testing for pain clinicians should employ specific techniques described in this study to develop an optimal test menu and validate procedures that include isolating retention times for isobaric compounds, identifying interfering substances including impurities in medicinal and illicit substance preparations, monitoring ion suppression, and avoiding carryover.

Keywords

LC-MS/MS; Mass spectrometry; Chronic pain; Drug testing; Interference testing; Validation; Isobaric compounds

Introduction

Urine drug testing of patients on chronic opioid therapy is a recognized component of the standard of care for this population [1-3]. Because a significant portion of this population experiences symptoms of other conditions including anxiety and depression, treatment often involves multiple medications. Additionally, a small percentage of these people take non-prescribed medications and/or illicit substances [4-10].

Treating physicians often utilize urine drug testing to monitor patients’ use of their prescribed medications to ensure that they are receiving optimal treatment. This establishes that patients are taking their medications, minimizes the potential for drug-drug interactions, and informs the physician if and when a patient has used a nonprescribed medication or illicit substance that could place their health at risk [11,12].

Laboratories performing analyses for pain physicians must offer a wide menu of tests to encompass commonly prescribed medications as well as illicit substances [13]. In addition to identifying parent compounds, laboratories should also be able to identify metabolites of these medications or illicit substances, such as 6-acetylmorphine, which may be present at very low concentrations in urine specimens [14,15]. To meet these needs in an efficient manner, laboratories must accurately quantify a wide range of concentrations for a large number of compounds, and accomplish this expediently.

Several testing methods utilizing mass spectrometry technology are capable of determining the presence of specific compounds. Gas chromatography-mass spectrometry (GC-MS) has been used for chemical analysis since the 1970’s [16-19] and is employed by many laboratories, particularly those involved with workplace drug testing. However, the newer liquid chromatography-tandem mass spectrometry (LC-MS/MS) methods have become viable alternatives for urine substance analysis of clinical specimens [14,15,20]. Several advantages of LC-MS/MS as compared with GC/MS include: 1) less complex specimen preparation and consequently shorter preparation time, 2) fewer interferences with other substances, 3) potential to work with small specimen volume requirements, and 4) the ability to measure multiple analytes in a single method [21]. Additionally, when used with optimal concentration cutoffs and validated methods, LCMS/ MS analyses provide definitive results with no false positives or false negatives [20,22].

Although LC-MS/MS is an excellent technology, as with any method there are challenges that need to be met in order to provide optimal identification and quantification of test analytes [23]. In the interest of augmenting the existing body of literature on mass spectrometric techniques for monitoring the presence of multiple prescription medications, the present authors have endeavored to present the analytical considerations as well as the techniques used to validate LC-MS/MS procedures for urine drug testing.

Methods

Over one million urine specimens from patients being treated for pain with opioid therapy were submitted by treating clinicians for analysis at Millennium Laboratories, San Diego, CA, USA. The specimens were de-identified and the data aggregated. No human subjects were harmed and the retrospective data analyses were approved by Aspire® IRB, Santee, CA, USA. Each physician test requisition typically included a list of medications the patient was known to be taking as well as which specific tests were to be performed. No specimens were excluded.

Test methods

Quantitative, multi-analyte liquid chromatographic tandem mass spectrometric assays were used to identify and confirm the presence of the analytes listed in Table 1. These assays include many of the medications (as well as some metabolites) requested by physicians who treat pain. The assays also include some illicit substances and metabolites.

Compound Name Precursor Ion Product Ion 1 Product Ion 2
Buprenorphine-D4 472.4 59.2 N/A
Buprenorphine 468.3 396.1 55.2
Norbuprenorphine-D3 417.3 55 N/A
Norbuprenorphine 414.3 83 55
Naltrexone-D3 345.2 N/A N/A
Propoxyphene-D5 345.2 58.1 N/A
Naltrexol 344.2 N/A N/A
Fentanyl-D5 342.2 105.1 N/A
Naltrexone 342.2 N/A N/A
Propoxyphene 340.2 266.1 58.1
Zolpidem-COOH 338.2 N/A N/A
Fentanyl 337.2 188.2 105.1
Paroxetine-D6 336.2 N/A N/A
6-Acetylmorphine-D3 334.2 165.1 N/A
Paroxetine 330.2 N/A N/A
α-OH-alprazolam-D5 330.2 302 N/A
6-Acetylmorphine 328.2 211.1 165.1
Norpropoxyphene 326 252 44
α-OH-alprazolam 325.1 297 216
Oxycodone-D6 322.2 247.1 N/A
Lorazepam 321 275 229
Oxycodone 316.2 256.1 241.1
Fluoxetine-D6 316.1 N/A N/A
Zolpidem-D6 314.3 N/A N/A
Methadone-D3 313.2 105 N/A
Methadone 310.2 265.1 105
Fluoxetine 310.1 N/A N/A
Zolpidem 308 N/A N/A
Codeine-D6 306.2 115 N/A
Hydrocodone-D6 306.2 202.2 N/A
Temazepam-D5 306 260 N/A
Oxymorphone-D3 305.3 201.1 N/A
Oxymorphone 302.3 227 198
Norfluoxetine-D6 302.2 N/A N/A
Noroxycodone 302.2 284 187
Duloxetine-D3 301.2 N/A N/A
Temazepam 301 255 177
Codeine 300.2 152 115
Hydrocodone 300.2 199? 128
Duloxetine 298.1 N/A N/A
Norfluoxetine 296.1 N/A N/A
Benzoylecgonine-D3 293.3 171.4 N/A
Hydromorphone-D6 292.2 128.1 N/A
Morphine-D6 292.2 152.1 N/A
Oxazepam-D5 292.1 246.1 N/A
Benzoylecgonine 290.3 168.3 105.3
Oxazepam 287 241 104
Hydromorphone 286.2 185 128.1
Morphine 286.2 165.1 152.1
Norhydrocodone 286.1 199.1 115.1
7-NH2-clonazepam 286 222 121.1
Venlafaxine-D6 284.3 N/A N/A
Doxepin-D3 283.1 87 N/A
Amitriptyline-D3 281.2 91 N/A
EDDP-D3 281.2 234.1 N/A
Imipramine 281.1 86 58
Doxepin 280.1 107 84
Venlafaxine 278.4 N/A N/A
Amitriptyline 278.2 105 91
EDDP 278.2 234.1 186
Cyclobenzaprine 276.2 231 191
MDPV 276.2 N/A N/A
Nordiazepam 271 165 140
Carisoprodol-D7 268.2 183.3 N/A
Tramadol-13CD3 268.2 58.1 N/A
Desipramine 267.1 72 44
O-desmethylvenlafaxine 264.3 N/A N/A
Nortriptyline 264.2 233 155
Tramadol 264.2 58.1 N/A
Carisoprodol 261.2 176.1 97?
Meperidine-D4 252.3 224.2 N/A
Phencyclidine-D5 249.2 86.1 N/A
Meperidine 248.3 220.3 174.2
Phencyclidine 244.2 91.1 86.1
Secobarbital-D5 244 N/A N/A
Methylphenidate-D9 243.2 93 N/A
Ketamine-D4 242.1 224.1 N/A
Secobarbital 239 N/A N/A
Normeperidine-D4 238.3 164.2 N/A
Norfentanyl-D5 238.2 84.1 N/A
Ketamine 238.1 125 89.1
Phenobarbital-D5 238.1 N/A N/A
Methylphenidate 234.2 84.1 56.2
Normeperidine 234.1 188.1 160.1
Norfentanyl 233.2 84.1 56
Phenobarbital 233.1 N/A N/A
Ritalinic acid-D10 230.2 93.1 N/A
Butalbital-D5 230 N/A N/A
Meprobamate-D7 226.2 165.2 N/A
Butalbital 225 N/A N/A
Norketamine 224.1 207.1 115.1
Tapentadol 222.1 107.1 77.1
Ritalinic acid 220.1 84.1 56.1
Meprobamate 219.1 158.1 69.1
Methylone-D3 211.1 N/A N/A
Methylone 208.1 N/A N/A
MDMA 194.1 163.1 135
Gabapentin-D10 182.1 N/A N/A
Mephedrone-D3 181.1 N/A N/A
Mephedrone 178.1 N/A N/A
Gabapentin 172.1 N/A N/A
Pregabalin-D6 166.2 N/A N/A
Pregabalin 160.1 N/A N/A
Methamphetamine-D5 155.1 92.1 N/A
Methamphetamine 150.1 119.1 91.1
Amphetamine-D5 141.1 124.1 N/A
Amphetamine 136.1 119.1 91.1

Table 1: Test menu, internal standards, precursor ions, product ion one and product ion two for monitoring pain medications arranged by m/z value of the precursor ion generated in the positive mode of ESi.

Chemicals and reagents

The following chemicals are employed to perform the quantification of substances in urine by LC-MS/MS analysis: Water, HPLC-grade (Fisher Scientific®, cat# WS-4), stable for 1 year at room temperature (RT); acetonitrile, LCMS-grade (Fisher Scientific®, Chromasolvbrand, cat# 34967). stable for 1 year at RT; methanol, HPLC-grade (Burdick and Jackson, cat# 230), stable for 1 year at RT; formic acid, ACS grade, 88% purity (EMD Science, cat# FX045-5), stable for 1 year at RT.

Analyte and deuterium-labeled internal standards are purchased from Cerilliant®Corporation, Round Rock, TX, USA. Each standard is certified by Cerilliant® to be the true, pure compound. See Table 1 for the full list of compounds analyzed.

The analytical methods used in this study have previously been described [22,24-26]. Briefly, an Agilent® 1200 series binary pump SL Liquid Chromatography system, well plate sampler, thermostated column compartment, paired with an Agilent® 6410 QQQ mass spectrometer and Agilent® MassHunter software was used for analysis of all substances. The method used an acetonitrile-aqueous formic acid gradient running at 0.4 mL/min. A 2.1 x 50 mm, Poroshell 120 EC-18 or SB-18 of particle size 2.7 micron column was used for chromatography. The column temperature was 50°C. Mobile phase A = 0.1% formic acid in water, B = 0.1% formic acid in acetonitrile. The Agilent® 6410 Triple Quadrupole mass spectrometer was used in the positive ESI mode. The nitrogen drying gas temperature was 350°C, and the flow was 12 L/ min, nebulizer gas (nitrogen) 40 psi, and the capillary voltage was 3000 V. Fragmentor voltage was optimized for each analyte. Dwell times were calculated by Agilent® MassHunter Acquisition, depending on the number of concurrent MRMs. HPLC water, acetonitrile, methanol, and formic acid HPLC grade were obtained from VWR, Westchester, PA, USA.

Cycle times were set to 500 milliseconds. In the MRM mode, 2 transitions were used to identify and quantitate a single compound (see Table 2). A quantitative transition was used to calculate concentration based on the quantifier ion, and a qualitative transition was used to ensure accurate identification of the target compound based on the ratio of the qualifier ion to the quantifier ion.

Substance Test Concentration (ng/mL) Substance Test Concentration (ng/mL)
6-Monoacetylmorphine 1,280 Desmethylcitalopram 250
11-Nor-9-carboxy THC 512 Desmethylclomipramine 500
6-Acetyl morphine 5 Desmethylsertraline 250
7-Amino clonazepam 125 Dextromethorphan 500
7-Amino flunitrazepam 125 Diazepam 500
Acetaminophen 25,000 Dihydrocodeine 100,000
α-OH-alprazolam 2,560 Diltiazem 500
Alprazolam 250 Diphenhydramine 500
Amantadine 250 Doxepin 500
Amitiptyline 500 Doxylamine 500
Amoxapine 600 Duloxetine 500
Amphetamine 12,800 Ecgonine methyl esther 500
Antipyrine 1000 EDDP 12,800
Atomoxetine 500 Ephedrine 100,000
Benzocaine 500 Fentanyl 256
Benzoylecgonine 3,200 Flunitrazepam 125
Brompheniramine 50 Fluoxetine 500
Bupivacaine 500 Flurazepam 125
Buprenorphine 1,280 Hydrocodone 6,400
Bupropion 500 Hydromorphone 6,400
Bupropion metabolite 1,000 Ibuprofen 25,000
Butalbital 5,000 Imipramine 500
Carbamazepine 5,000 Ketamine 500
Carisoprodol 6,400 Lamotrigene 5,000
Chlordiazepoxide 125 Lidocaine 1,000
Chlorpheniramine 500 Lorazepam 5,120
Chlorpomazine 500 Loxapine 250
Citalopram 250 Maprotiline 1,250
Clomipramine 125 MCPP 250
Clonazepam 500 MDA 100
Clonidine 250 MDEA 100,000
Clozapine 500 MDMA 12,800
Cocaethylene 100 Meclizine 600
Cocaine 100 Meperidine 500
Codeine 6,400 Meprobamate 6,400
Cyclobenzaprine 100 Mesoridazine 500
Desalkyflurazepam 500 Methadone 6,400
Desipramine 500 Methamphetamine 12,800
Desmethyldoxepin 500 Methylphenidate 50
Metoclopramide 500 Pentazocine 500
Midazolam 125 Phencyclidine 640
Midazolam 100 Phenobarbital 5,000
Mirtazepine 250 Phenylpropanolamine 100,000
Morphine 6,400 Phentermine 100,000
    Phenytoin 5000
Naproxen 100,000 Promethazine 500
Morphine-3-glucuronide 250 Propoxyphene 12,800
Norbuprenorphine 1,280 Psuedoephedrine 100,000
Norcodeine 100,000 Quetiapine 250
Nordiazepam 5,120 Sertraline 500
Norfentanyl 1,024 Strychnine 500
Norfluoxetine 500 Temazepam 6,400
Normeperidine 500 Thioridazine 500
Normorphine 100,000 Topiramate 5,000
Norpropoxyphene 12,800 Tramadol 3,200
Nortriptyline 500 Trazodone 1,000
Norverapamil 500 Triazolam 125
O- desmethylvenlafaxine 500 Trimethobenzamide 500
Olanzapine 600 Trimethoprim 500
Oxezepam 5,120 Varapamil 500
Oxycodone 6,400 Venlafaxine 500
Paraxanthine 100,000 Zolpidem 250
Paroxetine 500 Zopiclone 125

Table 2: Substances tested for interference in LC-MS/MS with test concentrations.

Ion suppression and ion enhancement were evaluated by tabulating the deuterated internal standard (ISTD) responses within 96-well plate batches. The reference (i.e. no ion suppression) values for ISTD area responses were defined as the mean ISTD area responses for the eight blank specimens included in each batch.

Methanolic standards were obtained from Cerilliant® Corporation. The methanolic standards for each substance were spiked into synthetic urine.Specimens and calibrators were prepared for injection by incubating 25 μL of urine with 50 units of β-glucuronidase. The efficiency of the hydrolysis procedure was determined by use of a morphine glucuronide control. Hydrolysis of the control material was considered acceptable if the value of the recovered morphine was above 90% of the nominal concentration.

Five microliters of specimens, controls and calibrators were injected.

Method Validation and Assay Performance

The upper limit of linearity (ULOL) was determined by the replicate analysis (N =3) of progressively increasing high level standards against the production calibration curve. The ULOL is the highest concentration tested that can be identified and quantified within 20% of the target value. The lower limit of quantitation (LLOQ) was determined by the replicate analysis (N=8) of progressively decreasing low level standards against the production calibration curve. The LLOQ is the lowest concentration tested that can be identified and quantified within 20% of the target value. Assay performance data are listed in Table 3. The criteria for identification are transition ratios within 20% and relative retention times within 2% of the midrange calibrator with acceptable chromatography.

ISTD Maximum Ion Suppression (%) Median Ion Suppression (%) Maximum Ion Enhancement (%)
Morphine-D6 76.1 39.2 10
Oxymorphone-D3 63.5 29.1 16.3
Hydromorphone-D6 72.6 27.2 10.3
Amphetamine-D5 47.8 8.7 7.7
Codeine-D6 49.1 17.4 9.2
Oxycodone-D6 57.2 23 13.3
Methamphetamine-D5 79.4 8.9 3.4
Oxycodone-D6 57.2 23 13.3
Hydrocodone-D6 55.4 13.3 9.3
Methamphetamine-D5 79.4 8.9 3.4
Hydrocodone-D6 55.4 13.3 9.3
6-Acetylmorphine-D6 52.8 5.7 14
Ritalinic acid-D10 56.2 7.9 14.7
7-NH2-clonazepam-D7 88.3 37.9 16.3
Ketamine-D4 56.9 5.6 8.9
Benzoylecgonine-D3 59.4 9.6 6.2
Ketamine-D4 56.9 5.6 8.9
Norfentanyl-D5 56.9 10 13.2
Methylphenidate-D9 48.3 5.6 5.7
Tramadol-13CD3 53.1 5.1 6.4
Tramadol-13CD3 53.1 5.1 6.4
Normeperidine-D4 42.8 6 3.9
Meperidine-D4 44.2 4.9 5
Meprobamate-D7 57 16.8 8.4
Norbuprenorphine-D3 49.8 16.6 13.2
Phencyclidine-D5 28.3 3.6 7.3
Fentanyl-D5 24.9 3.3 4.5
Doxepin-D3 33.8 7 9.2
EDDP-D3 26.1 2.7 4.9
Buprenorphine-D4 41 5.4 4.6
Amitriptyline-D3 31.9 4.2 8.6
Amitriptyline-D3 31.9 4.2 8.6
Amitriptyline-D3 31.9 4.2 8.6
α-OH-alprazolam-D5 22.8 3 16.8
Amitriptyline-D3 31.9 4.2 8.6
Oxazepam-D5 31.4 15.2 12.2
Propoxyphene-D5 30.8 2.6 5.6
Amitriptyline-D3 31.9 4.2 8.6
Propoxyphene-D5 30.8 2.6 5.6
Methadone-D3 19.4 2.9 5.5
Oxazepam-D5 31.4 15.2 12.2
Temazepam-D5 27.5 11.7 9.9
Carisoprodol-D7 40.6 9.1 6.8
Temazepam-D5 27.5 11.7 9.9

Table 3: Ion suppression as a function of elution.

Deuterated internal standards were used to improve quantitative accuracy and minimize the effects of ion suppression that can occur at high analyte concentrations or with the coelution of other concentrated substances or contaminants. Suppression effects were measured by comparing the response of the internal standard at the cutoff with the response at the ULOL. When deuterated internal standards are used, quantitative accuracy can usually be obtained with a 50% suppression of the internal standard response at the ULOL.

Integration peak area thresholds were established for each target compound by a user-defined script in MassHunter Quantitative Analysis, based on compound-specific calibrator responses and potentials for ion suppression. Four calibrators, four QC specimens, and eight blanks were run as part of each 96-well plate. Data quality for each batch was verified by calibrator and QC accuracy, calibration curve linearity and r2, ISTD response, and visual review of chromatography for all positive results.

It was made certain that the chromatography could separate any potential isobaric interfering compounds. This was accomplished by establishing that retention time differences between the isobaric pairs were greater than 0.1 minute. We eliminated another possible interference from compounds with atomic mass units that were within 1 dalton of any internal standard listed in Table 1. This was accomplished by adjusting the chromatography times and gradients so that there was no overlap between these compounds and the internal standards. This is important because of the isotope cascade (a+1 effect), where the contribution of naturally occurring 13C can contribute to the area counts of a compound one mass unit higher if they coelute [27]. The analyses were optimized for groups of substances. A single injection for all the substances was not used.

A list of potentially interfering medications was generated from the proposed test menu (Table 1) and a list of commonly prescribed medications [28] (Table 2). These compounds were added to a control specimen to show that all of the analytes of interest were quantified to within +/- 20% of target concentrations.

Carryover was evaluated by the analysis of synthetic negative urine following the ULOL standards.Carryover limit (CL) was determined in the following manner: single analyte specimens were prepared from reference standards in blank urine. Certified Cerilliant® and Sigma® standards of either 1,000,000 ng/ml or 100,000 ng/ml were diluted in synthetic urine to achieve the spiked concentrations shown in Table 4. Blanks containing internal standards were injected between each ULOL specimen to determine if analyte carryover was occurring. This was repeated 3 times. The results of the carryover experiments are presented in columns 4,5, and 6 of Table 4. Carryover was deemed to have occurred, if a substance was detected, and the qualifier ions were acceptable within 20% of the expected values. The average percent carryover is presented in the last column of Table 4.

Analyte Limit of Quantitation Upper Limit of inearity Analyte Limit of Quantitation Upper Limit of Linearity
6-Acetylmorphine 10 5,000 Methylone 10 25,000
7-Amino-clonazepam 20 50,000 Methylphenidate 50 50,000
Alpha-hydroxyalprazolam 20 50,000 Morphine 50 100,000
Amitriptyline 50 50,000 Naltrexol 10 50,000
Amphetamine 50 100,000 Naltrexone 10 50,000
Benzoylecgonine 50 100,000 Norbuprenorphine 20 5,000
Buprenorphine 10 5,000 Nordiazepam 40 50,000
Butalbital 200 100,000 Norfentanyl 8 5000
Carisoprodol 50 100,000 Norfluoxetine 25 100,000
Codeine 50 100,000 Norketamine 50 50,000
Cyclobenzaprine 50 50,000 Normeperidine 50 100,000
Desipramine 50 50,000 Norpropoxyphene 50 100,000
Desmethylvenlafaxine 100 100,000 Nortriptyline 50 50,000
Doxepin 50 50,000 Oxazepam 50 50,000
Duloxetine 25 100,000 Oxycodone 50 100,000
EDDP 100 100,000 Oxymorphone 50 100,000
Fentanyl 2 2,000 4-OH-3-OMe-paroxetine 25 100,000
Fluoxetine 25 100,000 Paroxetine 25 100,000
Gabapentin 100 100,000 Phencyclidine 50 100,000
Hydrocodone 50 100,000 Phenobarbital 200 100,000
Hydromorphone 50 100,000 Pregabalin 100 100,000
Imipramine 50 50,000 Propoxyphene 50 100,000
Ketamine 50 50,000 Ritalinic acid 50 50,000
Lorazepam 40 50,000 Secobarbital 200 100,000
MDMA 50 100,000 Tapentadol 50 100,000
MDPV 10 25,000 Temazepam 50 50,000
Meperidine 50 100,000 THC 15 50,000
Mephedrone 10 25,000 Tramadol 100 100,000
Meprobamate 50 100,000 Venlafaxine 100 100,000
Methadone 50 100,000 Zolpidem 10 50,000
Methamphetamine 50 100,000 Zolpidem-COOH 10 50,000

Table 4: Lower limits of quantitation and upper limits of linearity.

Analyte Test Concentration Limit of Detection Measured Concentration for BLANK- A Measured Concentration for BLANK- B Measured Concentration for BLANK- C % Carryover
6-acetylmorphine 20,000 5 0 0 0 0
Buprenorphine 20,000 3 0 0 0 0
Carboxy-THC 20,000 5 61.71 0 9.235 0.03
Fentanyl 20,000 1 0 3.8273 0 0.012
Norbuprenorphine 20,000 3 0 0 0 0
Norfentanyl 20,000 2 0 0 0 0
7-amino-clonazepam 50,000 10 0 0 0 0
Alpha-hydroxyalprazolam 50,000 10 0 0 0 0
Amitriptyline 50,000 20 0 0 0 0
Benzoylecgonine 50,000 15 0 0 0 0
Cyclobenzaprine 50,000 20 0 0 0 0
Desipramine 50,000 20 0 0 0 0
Doxepin 50,000 20 0 0 0 0
Imipramine 50,000 20 0 0 0 0
Lorazepam 50,000 10 0 15.5281 0 0.003
Meperidine 50,000 20 0 0 0 0
Nordiazepam 50,000 10 0 0 0 0
Normeperidine 50,000 20 0 0 0 0
Norpropoxyphene 50,000 50 0 0 0 0
Nortriptyline 50,000 20 0 0 0 0
Oxazepam 50,000 20 0 0 0 0
Phencyclidine 50,000 15 0 0 0 0
Propoxyphene 50,000 25 0 0 0 0
Temazepam 50,000 10 0 0 0 0
Amphetamine 50,000 25 0 0 0 0
Amphetamine 100,000 25 0 0 0 0
Carisoprodol 50,000 25 0 0 0 0
Carisoprodol 100,000 25 0 0 0 0
Codeine 50,000 20 0 0 0 0
Codeine 100,000 20 0 0 0 0
EDDP 50,000 50 0 0 0 0
EDDP 100,000 50 0 0 0 0
ETG 100,000 100 366.822 0 617.22 0.061
ETS 100,000 100 149.591 153.301 150.605 0.015
Hydrocodone 50,000 20 0 0 0 0
Hydrocodone 100,000 20 0 0 0 0
Hydromorphone 50,000 20 0 0 0 0
Hydromorphone 100,000 20 0 0 0 0
MDMA 50,000 25 0 0 0 0
MDMA 100,000 25 0 0 0 0
Meprobamate 50,000 50 0 0 0 0
Meprobamate 100,000 50 0 0 0 0
Methadone 50,000 50 0 0 0 0
Methadone 100,000 50 0 0 0 0
Methamphetamine 50,000 25 0 0 0 0
Methamphetamine 100,000 25 0 0 0 0
Morphine 50,000 20 0 0 0 0
Morphine 100,000 20 0 0 0 0
Norhydrocodone 50,000 20 0 0 0 0
Norhydrocodone 100,000 20 0 0 0 0
Noroxycodone 50,000 20 0 0 0 0
Noroxycodone 100,000 20 0 0 0 0
Oxycodone 50,000 20 0 0 0 0
Oxycodone 100,000 20 0 0 0 0
Oxymorphone 50,000 20 0 0 0 0
Oxymorphone 100,000 20 0 0 0 0
Tapentadol 50,000 50 0 0 0 0
Tapentadol 100,000 50 0 0 0 0
Tramadol 50,000 50 0 0 0 0
Tramadol 100,000 50 0 0 0 0

Table 5: Carryover limit.

The frequency at which parent substance-metabolite pairs were observed was scored. For the purposes of this calculation the LCMS/ MS cutoff concentrations of the parent substance and metabolite were set at the lower limit of quantitation. The analytical limit of quantitation or LOQ was used as the cutoff point for both parent substance and metabolite. If the concentration of either the substance or the metabolite was below the LOQ then that pair was not used in the calculation. The numbers of specimens tested for each analyte are presented in the summary Tables 6a and 6b.

High Positive Concentration, X (ng/mL) Following Specimen Concentration, Y (ng/mL) Conclusion
X > 100,000 Y > 50 Repeat analysis after blank
100,000 > X ≥ 50,000 Y < 50 No action required
100,000 > X ≥ 50,000 50 < Y < 200 Repeat analysis after blank
100,000 > X ≥ 50,000 Y > 200 No action required

Table 6: Carryover evaluation criteria for benzoylecgonine. Values for other medications will vary. The ULOL and carryover limit for benzoylecgonine is 100,000 ng/mL.

The analysis was carried out using the following method: the parent substance was considered to be present if it was above the cutoff concentration. Similarly the metabolite was considered to be present if it was above the gap should be there The number of times the metabolite failed this scoring procedure was noted and those parent substance values were separated for review.

When both parent substance and metabolite were present (i.e. above the cutoff concentration) then the pairing was scored as positive. When the parent substance was present but metabolite was not found to be present (below cutoff concentration), the observation was scored as negative (Table 7a).

Substance LC-MS/MS Cutoff (ng) Metabolite LC-MS/MS Cutoff (ng) Positive Substance Count Number of Times Observed For Each Substance Number of Times Not Observed For Each Observed Median Substance Concentration When Observed Median Substance Concentration When Not Observed Percent Matching
Methamphetamine 100 Amphetamine 100 62 55 7 6,589 701 89
Methadone 50 EDDP 50 803 781 22 2,269 355 97
Buprenorphine 10 Norbuprenorphine 20 108 105 3 65 131 97
Fentanyl 2 Norfentanyl 8 711 698 13 44 10 98
Carisoprodol 50 Meprobamate 50 598 588 10 457 174 98
Hydrocodone 50 Hydromorphone 50 3,005 2,076 929 1,540 341 69
Oxycodone 50 Oxymorphone 50 2,129 1,972 157 2,139 450 93

Table 7a: Observations on the occurrence of parent medication and metabolite (concentration in ng/mL).

To obtain additional information we conducted another analysis to determine how often metabolite was found when parent substance was not observed (see Table 7b). The cutoffconcentrations were the same as for the previous analysis.

Metabolite LC-MS/MS Cutoff (ng/mL) Substance LC-MS/MS Cutoff (ng/mL) Positive Metabolite Count Number of Times Metabolite Found With Parent Medication Number of Times Metabolite Found Without Parent Medication Median Metabolite Concentration With Parent Medication Median Metabolite Concentration Without Parent Medication Percent Metabolite Without Parent
EDDP 50 Methadone 50 810 781 29 3,960 96 3.5
Norbuprenorphine 20 Buprenorphine 10 131 105 26 323 58 20
Norfentanyl 8 Fentanyl 2 752 698 54 304 18 7.1
Meprobamate 50 Carisoprodol 50 993 588 405 24,448 3,815 40.7

Table 7b: Observations on the occurrence of metabolite without parent medication (concentration in ng/mL).

Results

Table 1 lists the parent substances and metabolites that were tested in this cohort as well as the precursor ions and product ions. Table 2 lists the commonly prescribed medications that were tested to ensure there was no interference during analysis. There was no interference from any of the compounds listed in Tables 1 and 2.

The ion suppression varied depending on the test analyte (Table 3).In general, there was more ion suppression in the earlier eluting peaks than the later eluting ones (Figure 1). Also, there was more ion suppression in the more highly concentrated specimens. This is shown in Figure 2. Instrument response and the effect of ion suppression did not affect the ability of the method to give linear results over a wide range of concentrations (Table 4).

analytical-bioanalytical-techniques-function-retention

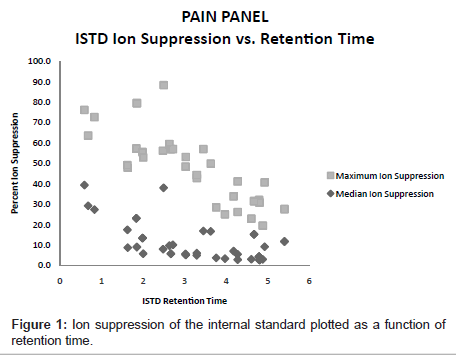

Figure 1: Ion suppression of the internal standard plotted as a function of retention time.

analytical-bioanalytical-techniques-analytes-morphine

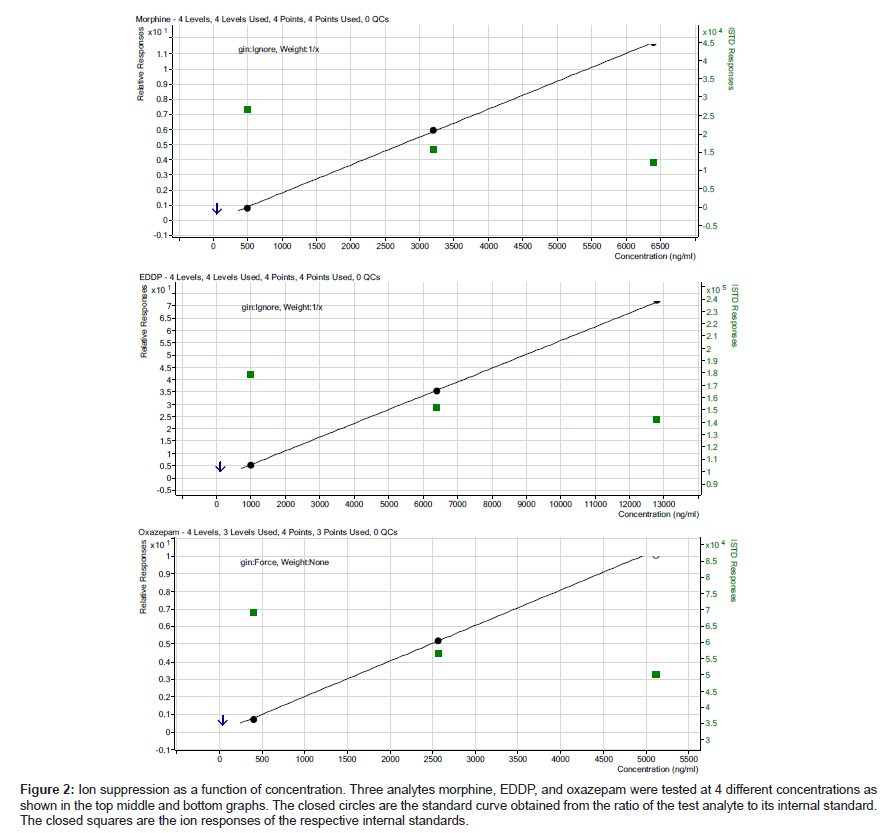

Figure 2: Ion suppression as a function of concentration. Three analytes morphine, EDDP, and oxazepam were tested at 4 different concentrations as shown in the top middle and bottom graphs. The closed circles are the standard curve obtained from the ratio of the test analyte to its internal standard. The closed squares are the ion responses of the respective internal standards.

Evaluations for carryover were identified using the data presented in Table 5 and resulted in the following rule set:

1.A specimen above the measured ULOL (upper limit of linearity) followed by a positive of any value: re-inject specimen after a blank run. If the re-injected specimen is still positive, then rerun a fresh aliquot of the specimen. This will eliminate any needle carryover contaminating the specimen.

2.A high level positive (defined for each substance) that is below the ULOL followed by a result below the LOQ: The low level may be the result of carryover, but, as the level is below the LOQ the carryover incident is moot and the specimen is reported as negative. No further action is required.

3. A high level positive (level defined for each substance) that is below the ULOL, followed by a specimen above the LOQ and below a level defined for each substance. Re-inject the specimen after blank.

4. A high level positive (level defined for each substance) that is below the ULOL, followed by a specimen above a level defined for each substance. Carryover may have added to the second high level; however the addition is a nominal percentage of the measured level (i.e. less than 20%), and as such, the second high level specimen is a true positive and no further action is required.

A small number of specimens (about 1%) had excreted concentrations of analyte (particularly morphine and oxycodone) that exceeded 100,000 ng/mL. These observations indicated the necessity of having a method to detect and address carryover. The established method to minimize the possibility of carryover is summarized in Table 6.

Tables 7a and 7b show the correlation between seven parent substance and metabolite pairs observed in urine drug tests. Between one and five percent of the specimens did not show the presence of the metabolite. Table 8 shows the prevalence with which non-listed medications were present in this population’s urine specimens. The most prevalent non-listed medication class was benzodiazepines (23%). The second most widely used non-listed medication class was opiates (19.2%).

Medication/ Medication Class Observed Frequency
Amphetamine 1.4%
Benzodiazepines 23.0%
Buprenorphine 1.0%
Carisoprodol 4.6%
Fentanyl 1.5%
Meperidine 0.4%
Methadone 2.2%
Opiates 19.2%
Propoxyphene 2.7%
Tapentadol 0.2%
Tramadol 4.1%

Table 8: Prevalence non-reported medications observed in 290,627 specimens.

Discussion

The validation procedure for any assay should establish accuracy, precision, analytical sensitivity, analytical specificity, and the reportable range, as well as determination of calibration and control procedures [17]. These procedures are laid out in the Clinical Laboratory Standards Institute (CLSI) document on mass spectrometry in the clinical laboratory [23].

Analyses for pain medications as well as illicit substances typically involve dozens of analytes. This differs from other types of analyses commonly utilized by physicians that may test for only one or two analytes (e.g., immunosuppressive agents, cyclosporine and tacrolimus). Table 1 presents a list of the medications commonly requested by pain management clinicians. But there are additional substances that the pain population could be taking. The analyses showed that testing only for the listed prescribed medications and illicit substances would not provide a complete picture of what substances a patient was taking.

Despite the ability of LC-MS/MS technology to be highly specific (and considering the wide range of medications and other substances that must be tested for to accommodate pain clinicians’ needs), the laboratory must identify any substance that could potentially produce analytical interference, no matter how remote, in order to assure optimal accuracy. The logical place to begin ruling out interference is with those medications listed in Table 1.

The analytical challenge of monitoring this many substances was met by use of deuterated internal standards and elimination of potential isobaric interferences using appropriate chromatography.

Isobaric interferences can be minimized by reviewing the molecular characteristics of commonly prescribed medications. A list of these medications is presented in Table 2. A more complete list along with other properties including molecular weights are found in the previously mentioned CLSI document [23]. As a general rule, it is not necessary to test those commonly prescribed medications that are not isobaric.

Medications other than those can potentially cause interference, of course. Their identification can be more difficult and may entail running a significant number of patient specimens to identify them. In some cases, testing for the presence of both parent substance and metabolite can identify interference. For example, when a specimen is positive for a metabolite such as normeperidine, but the parent substance (in this case, meperidine) is absent, and the parent substance was not listed as a prescribed medication, further analysis specifically for normeperidine may show that interference had occurred.

The classic false positive involves identifying methamphetamine in the presence of large concentrations of pseudoephedrine by GC-MS [29]. In this example, the presence of 500,000 ng/mL of pseudoephedrine caused a false positive methamphetamine result. The interference occurred on the GC separation by distorting chromatography, (peak shape or retention times), and by the formation of methamphetamine from the breakdown of the derivatized pseudoephedrine in the hot injection port of the GC. In LC-MS/MS,in-source fragmentation or rearrangement can occur before the first quadrupole, and can only be evaluated by experimentation. Compounds that are not isobaric generally will not cause a false positive, but can cause a false negative by preventing ionization of the analyte of interest. Experiments should include the interferants at levels expected in urine, which can be very high for some medications.

The liquid chromatography component of the analysis should be optimized so that the retention times of isobaric compounds do not overlap, that is, that there is chromatographic separation. It is possible to have the precursor ions generate the same m/z product ions. However, these generally have different product ion ratios. If this occurs, a good practice would be to use different transitions. It is also essential to monitor ion ratios when performing this type of analysis.

In the case of isobaric compounds which are not in the target compound list, but could conceivably appear in specimens, it is also accepted practice to demonstrate non-interference of such a compound both for identification (presence of the isobar does not affect qualifier ratios for the target compounds) and quantification (presence of the isobar does not affect the measured concentration of the target compound). The interference study is typically carried out with the possible interfering isobar at a concentration substantially above that which might be expected. Some examples of isobaric pairs are ephedrine/pseudoephedrine, morphine/hydromorphone, codeine/ hydrocodone, and methamphetamine/phentermine.

Ion suppression is another important variable that needs to be evaluated during method development. Ion suppression can occur when the ionization process is saturated, or when electrospray droplet formation and/or evaporation are altered. Deuterium labeled internal standards help correct for ion suppression and are an essential component of “dilute and shoot” methods. By monitoring the intensity of the internal standard area counts, analysts can monitor ion suppression.

One way to explain why LC-MS/MS is inherently free of interference is to consider the probability of an interfering substance having the same properties as the test compound. For example, if the chromatography separates compounds into sixty 0.1 minute segments, this may be considered a 60 fold separation, If the first quadrupole separates compounds by 1 amu, then for compounds in the molecular weight range of 100 to 600 amu, this is a 500 fold discrimination. If the second quadrupole also discriminates based on collision energy and the third quadrupole separates the two product qualifier ions by 1 amu each, this is additional 200 fold discrimination. Finally, the ratio of the productions (qualifier ratio) adds 10 to 20 fold discrimination. In total this adds up to at least 60 X 500 X 200 X 10 = 60,000,000 fold discrimination ability. That is the odds are less than 1 in 60,000,000 that there would be a match by another compound.

For monitoring of patients on chronic opioid therapy, quantifying the presence of the metabolites of the prescribed medications is very useful. The data can be used to show the patient has taken the medication and is likely to be metabolizing the medication is a manner consistent with other patients. Unexpected results may also possibly indicate that the patient is a fast or slow metabolizer, information that can help the clinician provide optimal care.

The observation that some specimens only contained the parent drug and no metabolite indicated the possibility of abnormal metabolism or potential attempts by patients to make the physician believe that they were taking the medication when they were not. This would have been done by “shaving” a small piece of prescription medication into the urine specimen. In these instances, the patient would have been unaware that actually ingesting the medication facilitates metabolism of the substance and therefore produces the drug’s metabolite [30-34].

The LC-MS/MS instrumentation provides quantitative data over the potential range of concentrations needed to monitor these patients (Table 3). Patients can excrete a wide range of concentrations of medication. Fortunately, LC-MS/MS techniques have a wide dynamic range (up to 10,000 fold). This high sensitivity and specificity may produce positive results for certain substances that are not necessarily medically relevant but are merely trace level impurities in pharmaceutical preparations. Table 9 shows the percentage of allowable impurities in various opioid medications [35-38]. Thus the analyst must be aware of true positive results caused by medication impurities.

Formulation Process Impurities Allowable Limit (%) Typically Observed (%)
Codeine Morphine 0.15 0.01-0.1
Hydrocodone Codeine 0.15 0-0.1
Hydromorphone Morphine Hydrocodone 0.15 0.1 0-0.025 0-0.025
Morphine Codeine 0.5 0.01-0.05
Oxycodone Hydrocodone 1 0.02-0.12
Oxymorphone Hydromorphone Oxycodone 0.15 0.5 0.03-0.1 0.05-0.4

Table 9: Known impurities in medication formulations (30-33).

Conclusions

Laboratories using LC-MS/MS as a tool for monitoring patients on polymedication therapy must address a number of considerations to assure that they provide the highest level of accuracy possible. These considerations include 1) avoiding isobaric interferences, 2) determining that ancillary medications do not interfere, 3) evaluating the extent and impact of matrix effects, including ion suppression and ion enhancement, and 4) developing procedures to minimize potential carryover and procedures to identify and deal with any likely carryover. When taking these potential issues into consideration, LC-MS/MS is an accurate and reliable method of analysis.

References

Select your language of interest to view the total content in your interested language
Post your comment

Share This Article

Relevant Topics

Recommended Conferences

Article Usage

  • Total views: 11729
  • [From(publication date):
    specialissue-2014 - Aug 20, 2017]
  • Breakdown by view type
  • HTML page views : 7913
  • PDF downloads :3816


Post your comment

captcha   Reload  Can't read the image? click here to refresh

Peer Reviewed Journals

Make the best use of Scientific Research and information from our 700 + peer reviewed, Open Access Journals
International Conferences 2017-18

Meet Inspiring Speakers and Experts at our 3000+ Global Annual Meetings

Contact Us


© 2008-2017 OMICS International - Open Access Publisher. Best viewed in Mozilla Firefox | Google Chrome | Above IE 7.0 version
adwords
