Araceli Espinoza-Vázquez*, Sergio Garcia-Galan and Francisco Javier Rodríguez-Gómez
Faculty of Chemistry, Department of Metallurgical Engineering, Universidad Nacional Autónoma de México, C.U., Distrito Federal, 04510, Mexico
Received date: August 26, 2015; Accepted date: September 30, 2015; Published date: October 07, 2015
Citation: Espinoza-Vázquez A, Garcia-Galan S, Rodríguez-Gómez FJ (2015) Nicotine as Corrosion Inhibitor for 1018 Steel in 1M HCl under Turbulent Conditions. J Anal Bioanal Tech 6:273. doi:10.4172/2155-9872.1000273
Copyright: © 2015 Espinoza-Vázquez A, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
Visit for more related articles at Journal of Analytical & Bioanalytical Techniques
An electrochemical impedance technique for determining corrosion inhibition of nicotine in HCl on AISI 1018 steel under concentrations from 0 to 50 ppm found that the organic compound is a better corrosion inhibitor under static conditions. The inhibition efficiency (IE) increased with inhibitor concentration reaching an IE>90%, at 10 ppm. For [nicotine] ≤ 50 ppm, the IE value reached 71%, at 40 rpm, but diminished then to 33% upon changing the working electrode rotation speed to 500 rpm. The thermodynamic analysis showed a process ruled by physisorption according to the Langmuir adsorption model mechanism. Furthermore, the inhibition kinetics study showed that nicotine gave good protection against corrosion up to 72 hours of immersion with IE ≤ 87%. Finally, with increased temperature the IE values diminished from 90% at 25°C to 57% at 70°C, concluding that at high temperatures nicotine is ineffective at inhibition, because the temperature decrease, persistence layer easily desorbs.
AISI 1018 steel; Nicotine; Corrosion inhibition
The transport of hydrocarbons in the oil industry depends on the use of pipelines that can be damaged by corrosion, causing large impacts on production, significant damage to property, as well as pollution, and risk to human lives .
Corrosion inhibitors [2-5], such as molybdates, phosphates, and ethanolamines, are effective, but they are very toxic. The development of corrosion inhibitors, non-toxic and compatible with the environment, is an area of great importance in the science and technology of corrosion [6-8]. Inhibitor substances extracted from plants offer environmental and cost advantages; for example alkaloid extracts from Oxandra asbeckii plant , Hibiscus sabdariffa , Geissospermum leave  Euphorbia falcate  show 89% inhibition efficiency, Morinda tinctoria has a 70% at 30% v/v ; they have been tested, but there is a lack in assessing and identyfing the active substance.
Nicotine ((S)-3-(1-methylpirrolidin-2-il) pyridine) is an organic compound belonging to the alkaloids: a liquid, oily, and colorless derivative of the ortinina, Figure 1, synthesized in the areas of high activity in the roots of tobacco plants, and transported by the sap to the greens. Structurally, this compound is formed by a pyridine and a pyrrole that could have bifunctional activity from nitrogen atoms. Given its chemical structure, this organic compound is a candidate for the protection of petroleum pipeline systems, since it is of natural origin, readily found in tobacco plants (nicotiana tabacum), in which it is the major active chemical component. Futhermore, the nicotiana tabacum extract has been reported by Njokua et al. and they demonstrated that the best concentration was 1200 mg/L with 89% IE  and Bhawsar et al.  found to have inhibitory corrosion properties for mild steel in acidic medium, attaining 94.13% IE at an optimum concentration of 10 g/L under static conditions for 6 hours at 303 K.
In the oil industry the hydrocarbon flow is typically turbulent, when the Reynolds number (Re) is greater than 1000. Laboratory standard testing (ASTM G170 and ASTM G-185) of corrosion inhibitors using rotating cylinder electrodes recommend flow rates from 100 to 500 rpm corresponding to hydrocarbon transport of 194 and 970 L/min, respectively.
Many substances, able to be adsorpted, have been introduced as corrosion inhibitors, for example azol derivatives [16-20], so it is important to evaluate candidates to determine the conditions under which they might be effective.
Consequently, our interest in evaluating this organic molecule as pure compound has been demonstrated inhibition properties against corrosion thus making it an eco-friendly material equally proper for engineering uses under different hydrodynamic conditions and temperatures, which simulates the transport of hydrocarbons.
The inhibition efficiency of nicotine, IE, can be calculated as :
where Rp is the polarization resistance with (“inhibitor”) or without inhibitor (“blank”).
The value of polarization resistance is an important parameter that can be obtained from electrochemical impedance spectroscopy to estimate the rate of corrosion, by using small polarization, i.e., no damage on the electrode is caused due to experiment.
Inhibitor solution 0.01M nicotine (Aldrich 97% purity) was prepared in water, with different aliquots taken from this solution, with concentrations ranging from 5 to 50 ppm added to the 1M HCl electrolyte, prepared through dilution of the HCl analytical grade reagent at 37% with doubly distilled water.
The electrochemical impedance study was performed at room temperature using the Gill AC workstation, applying a sinusoidal ± 10 mV perturbation, within the 10-1 Hz to 104 Hz frequency range to an electrochemical cell with a three-electrode setup. A saturated Ag / AgCl electrode was used as reference, with a graphite rod as counter electrode, while the working electrode (rotating cylinder electrode, RCE) was the AISI 1018 steel sample with ~ 3.92 cm2 exposed area, duly prepared through standard metallographic procedures. The working electrode was first immersed into the test solution for 30 min to establish steady-state open-circuit potential.
The study under hydrodynamic conditions was carried out at 0, 40, 100 and 500 rpm. In addition, a study of kinetic inhibition of nicotine (50 ppm) for immersion times of 30 days maximum was performed, observing the effect of temperature at the same concentration from 30 to 70°C, with ± 2°C error.
Effect of concentration

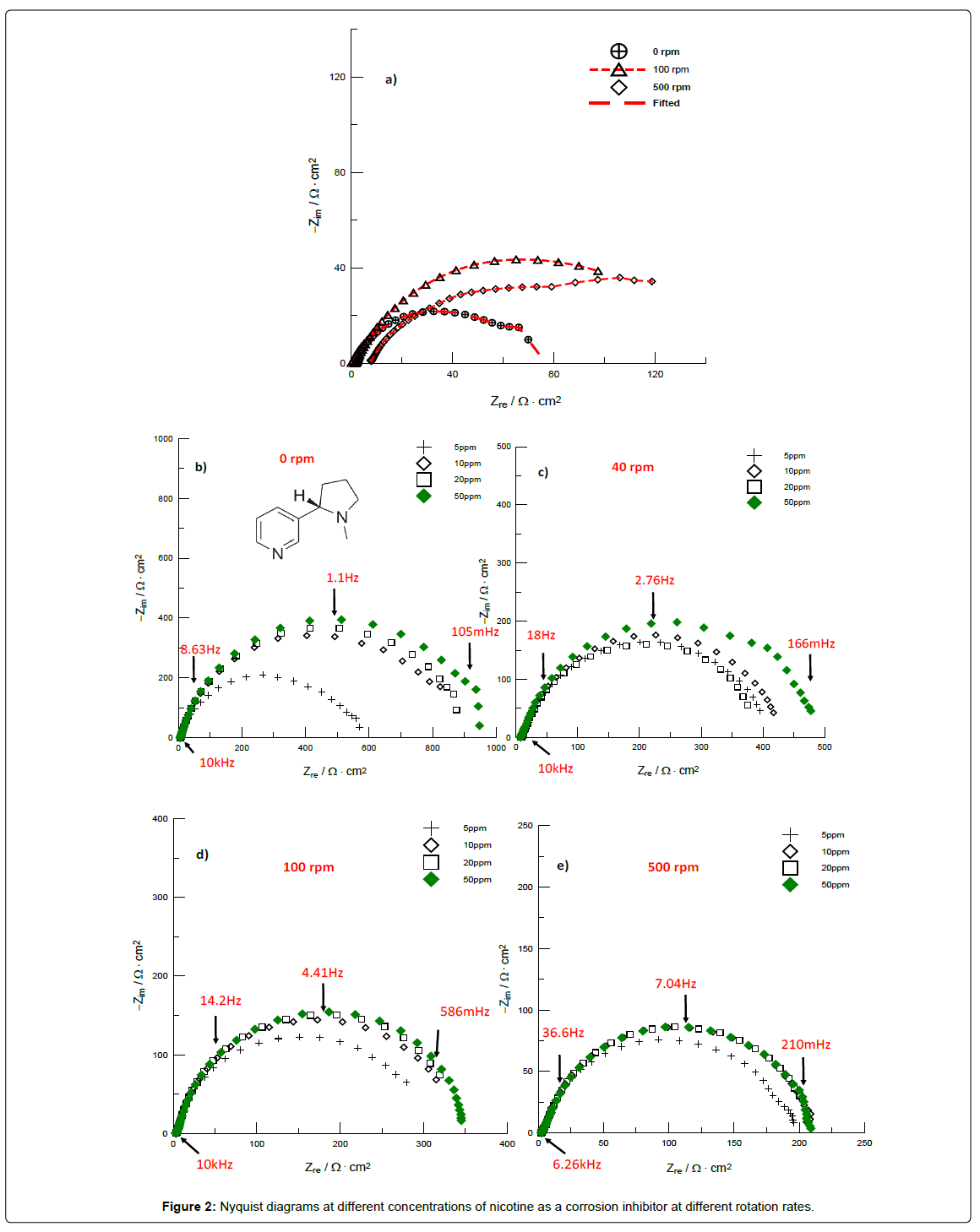

Figure 2a shows impedance diagrams for the immersed metal, with an increase in the value of Zre at higher rotation rates in 1M HCl due to the increase of mass transfer and localized attack .
Figure 2b-2e show the results for different rotation rates; the diameters of semicircles in Nyquist plots increas with increasing the inhibitor concentration. Analysis of the shape of the Nyquist plots revealed the curves were approximated by two semicircles: one timeconstant at high frequency associated with a corrosion process, while the second time-constant at low frequency would likely be associated with inhibitor adsorption [23,24].
When the RCE was at static condition (0 rpm) and at 10 ppm a Zre of 900 Ω·cm2 was found, slightly increasing to 1000 Ω·cm2 at 50 ppm. On the other hand, at 100 rpm, Figure 2d, Zre decreases to 350 Ω·cm2 at 50 ppm, attributable to a desorption of organic molecules on the electrode surface .

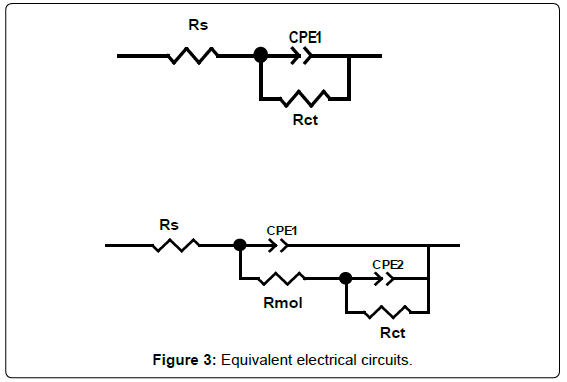

To determine electrochemical parameters of nicotine for different rotation rates (static and turbulent flows), simulation using electrical circuits was carried out using the Zview program, which are shown in Figure 3. Electrical equivalent-circuit diagram in Figure 3a corresponds to the metal/solution interface (double layer between the metallic surface and acid solution). Figure 3b describes a two-time-constant model, corresponding to the metal/solution interface and the inhibitor adsorption. Rs is the solution resistance, Rct the charge transfer resistance, Rmol the molecular resistance, CPE1 and CPE2 the constant phase elements corresponding to the Rmol and Rct, respectively.
The value of polarization resistance is calculated as:
For the description of a frequency-independent phase shift between an applied AC potential and its current response, a constant phase element (CPE) is used, which is defined in impedance representation as:
where Y0 is the CPE1 or CPE2, n is the CPE exponent that can be used as a gauge of the heterogeneity or roughness of the surface, j the unit imaginary number, and ω is the angular frequency in rad/s. Depending on n, CPE can represent a resistance (ZCPE=R, n=0); capacitance (ZCPE=C, n=1); a Warburg impedance (ZCPE=W, n=0.5); or inductance (ZCPE=L, n=-1). The equation to convert Y0 into double layer capacitance (Cdl) is given by ref. [26-28]:
Tables 1-4 show the corresponding values from the simulation of the experimental data, demonstrating that in all cases the concentration has greater polarization resistance compared with non-inhibitor.
|C/ppm||Rs/Ω cm2||n||Cdl/μF cm-2||Rp/Ω cm2||IE/%|
Table 1: Electrochemical parameters of nicotine (0 rpm).
|C/ppm||Rs/Ω cm2||n||Cdl/μF cm-2||Rp/Ω cm2||IE/%|
Table 2: Electrochemical parameters of nicotine/solution interface (40 rpm).
|C/ppm||Rs/Ω cm2||n||Cdl/μF cm-2||Rp/Ω cm2||IE/%|
Table 3: Electrochemical parameters of nicotine/solution interface (100 rpm).
|C/ppm||Rs/Ω cm2||n||Cdl/μF cm-2||Rp/Ω cm2||IE/%|
Table 4: Electrochemical parameters of nicotine/solution interface (500 rpm).
Adequate corrosion protection was found when nicotine was assessed under static conditions, since at 10 ppm it reached 90%, attributable to the organic compound being adsorbed more easily under these conditions.
However, for rotation rates greater than 40 rpm (turbulent flow) the polarization resistance and the inhibition efficiency were reduced. This effect could be due to the high Reynolds number regime causing the partial desorption of inhibitor at higher wall shear stresses [29,30].
Thus, Table 1 indicates that Cdl decreases at greater inhibitor concentration, because increase the thickness of the inhibitor layer or decrease in local dielectric constant [31,32]. Also, inhibition efficiency is higher than for turbulent flow (Tables 2-4). Therefore, with agitation the inhibitor-adsorbed layer is thinner than in static conditions, and even be heterogeneous and non-persistent. It can be assumed that the decrease of Cdl is caused by the gradual replacement of water molecules by adsorption of inhibitor molecules on the mild steel surface [33,34].

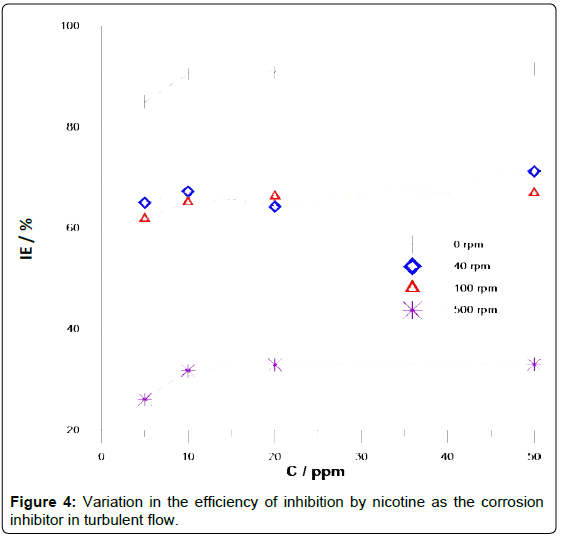

Figure 4 shows the IE at different rotation rates, noting that good protection is achieved in the static condition, reaching 90% IE at 10 ppm, attributed to the presence of electrodonor groups (pairs of free electrons in atoms in nitrogen) that favor the adsorption of nicotine on the metal surface.
The adsorption of organic compounds can be described by two types of interaction: physisorption and chemisorption . To determine the value of the standard Gibbs energy (ΔG°ads) we used Equations 5 and 6, where Kads is the adsorption equilibrium constant and θ is surface coverage, R is the universal gas constant, C is inhibitor molar concentration and T is the absolute temperature:
The results in Table 5 indicate that the process is physisorption (electrostatic interaction), since the value of ΔG°ads obtained from the linear fit shown in Figure 5 is less than -20 kJ/mol for the four rotation rates tested [36-39].
|Rotation rate/rpm||Ln kads||ΔG°ads/KJ mol-1||Regression Equation Lineal/mM||R2 (correlation coefficient)|
Table 5: Thermodynamic analysis of nicotine at different rotation rate by the Langmuir adsorption model.
Strong correlation coefficient (R2 ≥ 0.9979) of the Langmuir adsorption isotherm for nicotine was observed. The Langmuir
adsorption isotherm assumes that the adsorption of organic molecules on the adsorbent is a monolayer. The high values of the adsorption equilibrium constant reflect the high adsorption ability of the nicotine molecules on the steel surface.
Effect of immersion time
Corrosion inhibitors are often evaluated in order to determine their performance under different conditions, such as the concentration, but few evaluated for persistence of the layer inhibitor. It is important to study the effect of immersion time to optimize concentration [40,41].

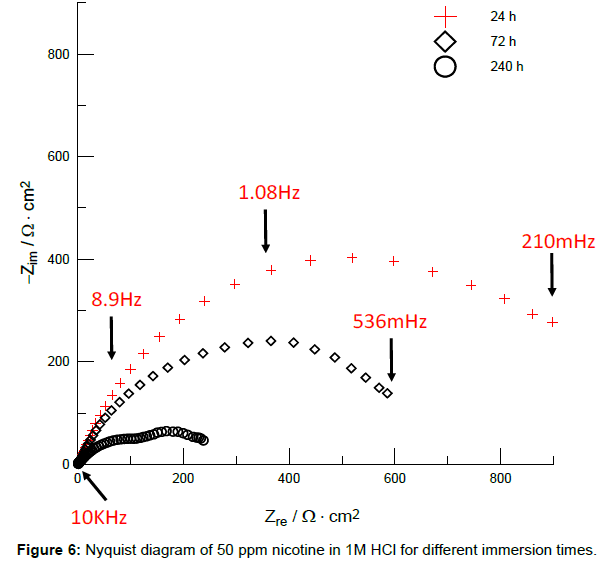

In the Nyquist plot of Figure 6, some examples of impedance curves at three different immersion times in the presence of 50 ppm of nicotine in 1M HCl are shown, with 24 hours of immersion producing a maximum Zre value of 854 Ω·cm2. After that time, this value decreases; at 240 hours it is remarkable to observe two time-constants, one attributed to the charge transfer resistance (corrosion process) and a second time-constant corresponding to an adsorped molecular layer . In Table 6, the values of corresponding resistances for each immersion time are summarized.
Table 6: Performance parameters of nicotine as a function of immersion time at 50 ppm.
In order to clarify the behavior of nicotine (50 ppm) as a function of immersion time, Figure 7, a maximum inhibition period of 72 hours provides adequate protection (87%), after which this value decreases considerably to ~50%, due to a degradation of the nicotine adsorbed during the corrosion process.
Effect of Temperature

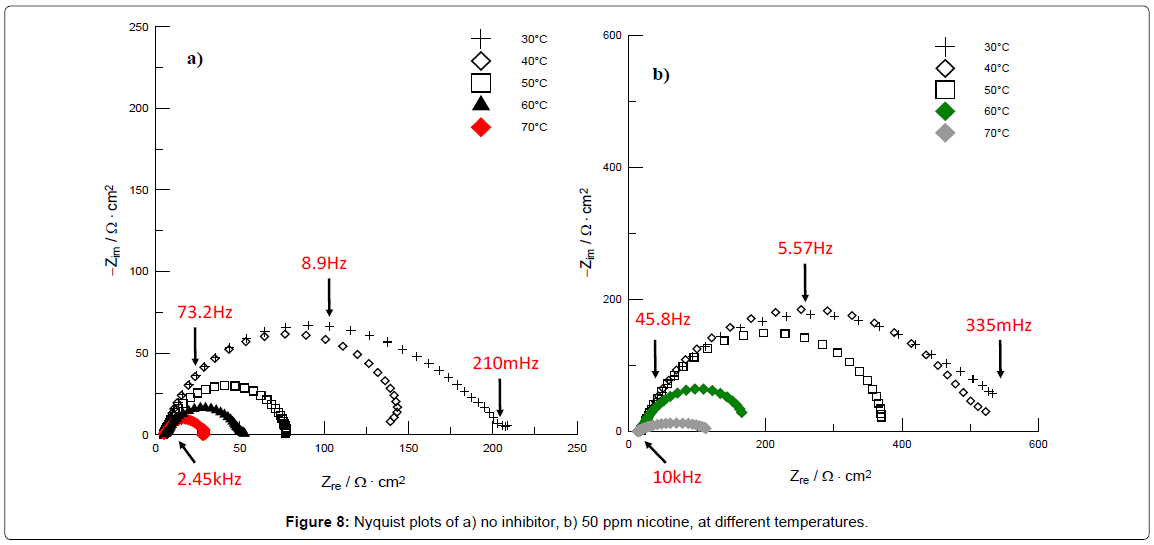

It has been observed that temperature can modify the interaction between the metal and the inhibitor . In Figure 8, Nyquist plots are shown corresponding to: a) steel immersed in 1M HCl, and b) steel immersed in 50 ppm nicotine in the corrosive medium, at different temperatures.
Figure 8a shows that the value of Zre decreases with increasing temperature, attributable to the 1M HCl solution causing material (steel) loss due to a faster corrosion process. When the inhibitor is added (50 ppm at Figure 8b), the previously mentioned effect in immersion time with temperature is also shown, with low charge transfer resistance at high temperature, as can be seen in Table 7. This fact is attributed to the inhibitor formed on the metal surface, thus a decrease in strength of the adsorption process at elevated temperature, suggesting physical adsorption  or desorption of the organic molecules (nicotine) at higher temperatures .
|T/C||Rctblank/Ω cm2||Rctinh/Ω cm2||IE/%|
Table 7: Effect of temperature in the presence of 50 ppm of 1M nicotine in HCl.
It was demonstrated that nicotine is an efficient corrosion inhibitor in HCl under static conditions, but only up to 10 ppm with efficiencies around ~ 90%. However, turbulent flow conditions (>40 rpm) affected the corrosion inhibition with IE less than 70%.
The nicotine is adsorbed on the metallic surface consistent with the Langmuir isotherm model.
The inhibitors behavior is affected with increase in temperature decreasing the persistence of the layer due to desorption process; according to the ASTM G 170 standard, this inhibitor is not suitable for high temperatures.
According to the ASTM G48 or G78 standard, the inhibitor is accepted when there is persistence of a test layer after 72 hours immersion. The inhibitors for this research meet that criterion.
