Agronomic Performance, Genotype X Environment Interaction and Stability of Black Cumin Genotypes Grown in Bale, Southeastern Ethiopia

Miheretu Fufa*
Adami Tulu Agricultural Research Center, PO Box 31, Ziway, Ethiopia
*Corresponding Author: Miheretu Fufa, Adami Tulu Agricultural Research Center, PO Box 31, Ziway, Ethiopia, Tel: +251911530715, Email: miheretufufag@gmail.com

Received: 09-Mar-2018 / Accepted Date: 28-Apr-2018 / Published Date: 05-May-2018 DOI: 10.4172/2329-8863.1000358

Abstract

Twenty Black Cumin genotypes were evaluated across locations to assess their agronomic performance, genotype by environment interaction and seed yield stability during 2011 and 2012 at Sinana, Goro and Ginir in randomized complete design with three replications. Except the number of capsules per plant, the analysis of variance indicated that there was highly significant variation (p<0.01) among the genotypes in days to flower, plant height, primary branches, days to maturity, biomass yield and seed yield. The combined analysis of variance indicated that the genotype x environment interaction was highly significant (p<0.01) indicating that there is a need to know which component of the interaction is contributing to the variation. The genotype by environment interaction explained contributed to the majority (79.16%) of the variation while the genotype and environment respectively explained 19.72 and 1.12% of the total sum of squares. The variation is majorly contributed by the genotype x environment interaction than genotype indicating that there was substantial difference in genotypic response across environments. AMMI stability analysis revealed that all the four AMMI components are highly significant. The first and second principal components contributed 70.85% and 17.0% of interaction sum of squares respectively. The PCA1 and PCA2 had sum of squares greater than that of genotypes and cumulatively contributed to 87.86% of the total GEI. Based on the calculated AMMI stability value, BC-DM-9 was the most stable genotypes followed by ACBC- 6 and AC-BC-19. On the other hand, genotype AC-BC-10 was the most unstable followed by MAB-057, ACBC- 8, Local and AC-BC-4. AMMI biplot of seed yield indicated that BC-DM-11 Xereta-1, AC-BC-9 and MAB-018 expressed a highly interactive behavior while genotype 394640-539 showed low interaction and thus stable in its seed yield (kg/ha).

Keywords: Black cumin; GXEI; Stability and agronomic performance

Introduction

Black Cumin (Nigella sativa L.) is an annual herbaceous plant belonging to the family Ranunculacea [1]. It has been used since antiquity for culinary, seasoning, medicinal and pharmacological purposes [2]. Its seed constituents have unique chemical properties with more than one hundred different chemical components [3]. It is also a valuable source of carbohydrates, proteins, essential fatty acids, vitamins, and minerals. Because of its characteristic properties, there is an increasing demand in the domestic and international markets [1]. Black Cumin is one of the seed spices grown in Ethiopia with a great capacity in income generation at local as well as international market. Owing to this, Black Cumin is included in the crops prioritized in the agricultural strategy and specialization program of Ethiopia with a potential of fulfilling the agriculture-led industry development policy of the country. Even though the crop is with a great potential contribution in the economic development of the country, its productivity and production was too low. One of the reasons that contributed to its low production and productivity is lack of stable improved cultivar with wider adaptability in the past for it has been neglected in the research system of the country. As a result, the country was not getting the benefit that would be incurred from the genetic potential and diversity the crop had. Since 2003, however, the crop was included in the crop improvement research of the country to evaluate the available landraces and generate improved cultivars that are stable and have wide adaptability in their performance.

Crop performance depends on the genotype and environment as well as their interaction. Thus, testing genotypes over diverse environments is universal practice to ensure the stability of performance of the genotypes [4]. Generally, genotypes that perform well over a wide range of environmental conditions are preferred [5]. This can be achieved through the evaluation of performance of genotypes across locations and years [6]. However, identification and recommendation of superior genotypes is complicated and severely limited by genotype x environment interaction [7]. The reason is that, in the presence of GEI, yield is less predictable and cannot be interpreted based on genotype and environmental means alone [8,9] for GEI confound the genotypic performance with environmental effects [5,10-12].

Several statistical models and procedures have been developed and exploited for studying the GEI effect and stability of genotypes [6,7,10,13]. One of the models is the Additive Main effect and Multiplicative Interaction (AMMI). Additive Main Effect and Multiplicative Interaction (AMMI) is the model of first choice when main effects and interaction are both important to increase accuracy [12]. It is a powerful tool for effective analysis and interpretation of multi-environment data structure in breeding programs and is useful for understanding GEI [4,6]. This method integrates analysis of variance and principal component analysis (PCA) into a united approach [13]. Plant breeders frequently apply AMMI model for explaining GEI and analyzing the performance of genotypes and test environments [14,15].

With the intention to meet the national agricultural development policy and the specialization program, Black Cumin genotypes were under evaluation at multi-location in order to identify stable genotypes with wider adaptability and better agronomic performance. Stability in performance is one of the most desirable properties of a genotype to be released as a variety for wide cultivation [16]. Most of the works so far done on Black Cumin, however, focused on its nutritional as well as medicinal properties. Thus, the information documented on its breeding aspect is scanty. Accordingly, this paper assesses agronomic performance, genotype x environment interaction (GEI) as well as seed yield stability of Black Cumin genotypes under Bale, Southeastern Ethiopia using joint regression analysis and AMMI analysis.

Materials And Methods

Twenty genotypes of Black Cumin were evaluated across locations in a randomized complete block design with replications at Sinana, Goro and Ginir during 2011 and 2012. Sinana is located at an altitude of 2400 m.a.s.l. Sinana has a range of mean annual rainfall of 563-1018 mm with minimum and maximum temperature of 7.9°C and 24.3°C, respectively. The soil type is dark-brown with slightly acidic reaction [17]. Goro and Ginir are located at altitudinal range of 1557-2032 m.a.s.l. and 1860-2337 m.a.s.l respectively. The genotypes were sown on a plot area of 2.4 m2 having four rows which are 30 cm apart and 2 m long. Three times hoeing, and weeding were applied without any fertilizer and chemical applications (Table 1).

Genotype/ Variety name Origin/Source Genotype/ Variety name Origin/Source
BC-DM-11  SARC AC-BC-15 SARC
MAB-057 ,, AC-DM-4 ,,
AC-BC-19 ,, MAB-065 ,,
MAB-018 ,, AC-BC-10 ,,
MAB-050 ,, AC-BC-6 ,,
AC-BC-7 ,, MAB-042 ,,
BC-DM-9 ,, AC-BC-8 ,,
AC-BC-16 ,, AC-BC-9 ,,
Local ,, AC-BC-4 ,,
Darbera ,, Xereta-1 ,,

Table 1: List of studied Entries and their Origin/Source. SARC=Sinana Agricultural Research Center.

Data collection: The variables were gathered from ive plants selected randomly from the middle rows from each replication at harvest.

Days to flower: Days to flower was recorded on plot basis when 50% of the plants get flowered.

Plant height (cm): Average height in centimeter measured from ground level to the tip.

Number of capsules per plant: Average number of seed bearing capsules from the five plants.

Numbers of primary branches: Average number of primary branches from the five plants.

Days to maturity: Number of days to reach physiological maturity, on plot basis, was recorded when capsules turned brown.

Biomass yield per plant: The average biomass yield in grams, including seeds per plant, from the 5 sample plants.

Seed yield per plant (g): Average seed yield in gram from the five plants.

Data analysis

The combined analysis of variance was performed across test environments of location and years on the average of the variables using SAS version 9.2 [18]. The Additive Main Effects and Multiplicative Interactions (AMMI) statistical model and biplot were produced using Irristat software [19]. Furthermore, AMMI’s stability value (ASV) was calculated in order to rank genotypes in terms of stability using the formula suggested by Purchase [20] as shown below:

equation

Where, SS=Sum of squares; IPCA1=interaction principal component analysis axis 1 and IPCA2=interaction principal component analysis axis 2.

Results and Discussion

Agronomic performances

The combined analysis of variance for agronomic traits and seed yield of Black Cumin genotypes evaluated across locations were indicated in Table 2. The analysis of variance indicated that there was highly significant variation (P<0.01) among the genotypes evaluated across location with respect to days to flower, plant height (cm), number of primary branches per plant, days to maturity, biomass yield (Kg/ha) and seed yield (kg/ha). On the other hand, non-significant variation was observed among the genotypes with respect to number of capsules per plant. The seed yield ranged from 731.77 kg/ha to 1238.81 kg/ha while the overall mean seed yield recorded was 1057.31 kg/ha. The minimum (731.77 kg/ha) and maximum (1238.81 kg/ha) mean seed was produced by Xereta-1 and BC-DM-11 respectively. The overall mean seed yield produced during the 2011-2012 at Sinana, Ginir and Goro respectively was 1466.37 kg/ha, 924.05 kg/ha and 790.37 kg/ha. Lowest mean seed yield at Goro was recorded due to the shortest rainfall period prevailing at this location as a result of which much of the flowers get aborted and hence resulted in minimum yield. The reverse is true for Sinana, where the rainy season is too long for each flower of the genotypes to set fruit bearing capsules. The minimum and maximum number of days needed to flower was 84 and 93 respectively while the mean number of days to flower was 88. The maximum mean plant height (58.68 cm) was recorded by the genotype AC-BC-9 while genotype MAB-050 was the shortest (41.83) while the overall mean value of plant height was 52.78 cm. The mean primary branch per plant ranged from 3.82 to 5.14 with the overall mean record of 4.37. The mean number of capsules per plant ranged from 10.53 to 14.44 with the overall mean value of 12.81. The overall mean number of days required to reach maturity was 146. It took 142 and 150 days respectively for the early (MAB-018) and late (AC-DM-4) maturing genotypes to mature. The overall mean biomass yield of Black Cumin genotypes was 5199.61 kg/ha. The minimum and maximum biomass recorded was 3046.2 kg/ha and 7197.5 kg/ha respectively (Table 3). Similar result was also reported by Ermias et al. regarding seed yield, plant height, days to flower and days to maturity [21]. Ali et al.[22] also reported similar result on plant height, number of capsule per plant and number of primary branches.

Mean Square
Source DF Days to flower PH PB CPP DM BY SY
ACC 19 115.35881*** 625.233*** 1.569*** 19.576*** 78.858*** 16282837*** 323853.70***
LOC 2 17228.29793*** 36928.448*** 44.165*** 221.679*** 59014.259*** 2547849909*** 15669609.72***
Year 1 357.16560*** 145.339** 1.907** 29.221** 2429.442*** 25539591*** 114258.28***
ACC*LOC 38 1899.29413*** 120.478*** 1.141*** 16.513*** 37.867*** 15494803*** 517139.35***
ACC*Year 19 285.33106*** 76.845*** 0.601ns 6.807ns 26.311*** 2191800*** 116534.07***
LOC*Year 2 177.17120*** 3252.476*** 0.246ns 60.648*** 712.765*** 35044366*** 1048417.44***
ACC*LOC*Year 38 570.66213*** 51.049*** 0.652*** 5.163ns 32.414*** 2410063*** 71257.26***
LOC*Year*REP 12 784.96372*** 541.299*** 1.323*** 10.342** 350.524*** 648848ns 1570.15ns
Error 228 3.42024 22.7553 0.375386 5.021629 10.1467 460033 2222.44
R2   0.98 0.95 0.72 0.640849 0.982615 0.98 0.99
CV   2.09 9.04 4.0471 17.49854 2.184317 13.04 4.46
Mean   88.33 52.77 4.36 12.81 145.83 5199.6 1057.309

Table 2: Combined analysis of variance for agronomic traits and seed yield of Black Cumin genotypes evaluated across locations in Bale, Ethiopia. NB: PH=plant height, PB=primary branch, CPP=capsules per plant, DM=days to maturity, BY=biomass yield (Kg/ha) and SY=seed yield (Kg/ha). ns, ** and ***=non-significant, significant and highly significant at 0.05 and 0.01 level of significance, respectively.

ACC Seed yield Agronomic Characters
  Ginir Goro Sinana Over all mean DF PH PB CPP DM BY (Kg/ha)
BC-DM-11 718.61 594.07 2403.75 1238.81a 86.94fghi 42.70f 4.68ab 14.16a 145.08cdef 4806.6fghij
AC-BC-15 984.07 1085.51 1613.15 1227.58a 88.08defg 55.80abc 4.34abc 13.92a 148.39abc 5948.2bcd
MAB-057 947.58 810 1810.4 1189.33ab 85.41hi 44.27ef 4.33abc 13.23abc 143.06ef 4090.2j
AC-DM-4 757.18 729.99 1972.29 1153.14bc 91.58ab 59.42a 4.23bc 12.57abc 149.53a 5693.4bcdef
AC-BC-19 1149.26 781.81 1514.28 1148.45bc 91.08abc 56.51abc 4.57abc 13.48abc 148.08abcd 5824.6bcde
MAB-065 721.99 861.53 1770.83 1118.12cd 85.83ghi 50.80bcd 4.24bc 13.70ab 143.61ef 3046.2k
MAB-018 807.04 1093.72 1430.18 1110.31cd 84.50i 44.71edf 4.01bc 10.82bc 141.78f 4522.0hij
AC-BC-10 1122.92 844.96 1351.35 1106.41cde 90.69bc 57.83a 3.92bc 11.88abc 147.16abcde 4976.3efghij
MAB-050 927.46 742.22 1622.92 1097.53cde 84.50i 41.83f 4.51abc 11.72abc 146.19abcde 4380.0hij
AC-BC-6 923.33 676.25 1691.24 1096.94cde 89.73bcde 54.10abc 4.56abc 12.62abc 145.16bcdef 4681.4ghij
AC-BC-7 1002.5 535.79 1695.94 1078.08de 89.97bcd 56.76ab 4.28bc 12.67abc 146.53abcde 6544.1ab
MAB-042 952.96 732.88 1517.85 1067.89def 85.67ghi 44.96edf 4.41abc 12.36abc 143.78edf 4265.5ij
BC-DM-9 1037.08 638.83 1520.21 1065.38def 90.14bcd 57.94a 5.14a 14.44a 146.36abcde 6233.9bc
AC-BC-8 902.92 812.78 1471.96 1062.55def 88.97cdef 56.71abc 3.82c 10.53c 146.08abcdf 7197.5a
AC-BC-16 798.61 969.31 1369.08 1045.67ef 89.16bcdef 56.03abc 4.51abc 12.16abc 147.28abcde 5287.8defgh
AC-BC-9 1233.47 971.57 823.9 1009.65f 87.39efgh 58.68a 4.34abc 13.2abc 145.61abcdef 4894.8fghij
Local 881.25 814.86 1081.25 925.79g 87.42efgh 50.28cde 4.02bc 13.02abc 143.89edf 5538.3cdef
AC-BC-4 1013.99 502.74 1193.32 903.35g 90.42bcd 54.81abc 4.37abc 13.79ab 144.94cdef 5921.8bcd
Darbera 650.24 659.9 998.19 769.44h 93.22a 53.34abc 4.58abc 13.39abc 149.42ab 5137.1fghi
Xereta-1 948.61 948.61 475.36 731.77h 85.92ghi 58.01a 4.58abc 12.47abc 144.66cdef 5002.5efghij
Mean 924.05 790.37 1466.37 1057.31 88.33 52.78 4.37 12.81 145.94 5199.61

Table 3: Overall means for seed yield (Kg/ha) and agronomic characters of Black Cumin genotypes grown in Bale, Ethiopia during 2011-2012. Means with the same letter are not significantly different. NB: SY=seed yield (Kg/ha), DF=days to flower, PH=plant height, PB=primary branch, CPP=capsules per plant, DM=days to maturity and BY=biomass yield (Kg/ha).

Genotype x environment interaction

The combined analysis of variance indicated that the genotype x environment interaction was highly significant indicating that there is a need to undertake stability analysis to know which component of the interaction is contributing more to the variation. The genotype by environment interaction explained the majority (79.16%) of the total sum of squares while the genotype and environment respectively explained 19.72 and 1.12% of the total sum of squares. The variation is majorly contributed by the genotype x environment interaction than genotype. The magnitude of the genotype by environment sum of squares was four times larger than that of genotypes, indicating that there was substantial difference in genotypic response across environments.

AMMI stability analysis

The pooled analysis of variance for seed yield of Black Cumin indicated that all the four AMMI components are highly significant (p<0.01) (Table 4). The first principal component contributed 70.85% of interaction sum of squares. The second principal component, on the other hand, explained 17.01% of the interaction sum of squares. The PCA1 and PCA2 had sum of squares greater than that of genotypes and cumulatively contributed to 87.86% of the total GEI.

The mean, AMMI stability value was indicated in Table 5. Based on the AMMI stability value, BC-DM-9 was the most stable genotypes followed by AC-BC-6 and AC-BC-19. On the other hand, genotype AC-BC-10 was the most unstable followed by MAB-057, AC-BC-8, Local and AC-BC-4.

Both genotypes and environments differed in their interaction as well as main effects for seed yield (Figure 1). Genotype 19 (Xereta-1) and genotype 20 (BC-DM-11) were the lowest and highest in their seed yield respectively. Environment F was highly productive while environment D was poor in seed yield. Genotypes 20 (BC-DM-11), 7 (MAB-057), 8 (AC-BC-10), 4(AC-DM-4), 6 (AC-BC-6), 17 (ACBC- 7), 2 (BC-DM-9), 10 (MAB-042) and 9 (AC-BC-8) interacted positively with environment C and F. On the other hand, genotypes 1 (MAB-050), 3 (AC-BC-19), 5(AC-BC-16), 7 (MAB-057), 11 (ACBC- 9), 12 (AC-BC-4), 13 (AC-BC-15), 14 (Local), 15 (MAB-018), 16 (Darbera), 18 (MAB-065) and 19 (Xereta-1) interacted negatively with environments A, B, D and E. Genotype 16 and 19 found adaptable to poor environments. On the other hand, genotypes 20 and 13 were suitable to productive environments.

advances-crop-science-technology-accessions

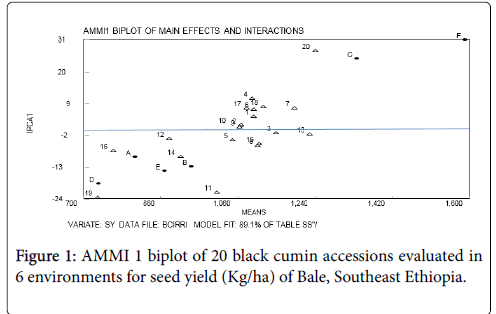

Figure 1: AMMI 1 biplot of 20 black cumin accessions evaluated in 6 environments for seed yield (Kg/ha) of Bale, Southeast Ethiopia.

AMMI biplot of seed yield of the 20 accessions tested in six environments during 2011-2012 was indicated in Figure 1. The distance from the origin (0, 0) is indicative of the amount of interaction that was exhibited by genotypes either over environments or environments over genotypes (9). Genotype 20 (BC-DM-11), 19 (Xereta-1), 11(AC-BC-9) and 15(MAB-018) expressed a highly interactive behavior (positively or negatively) while genotype 2 (394640-539) show low interaction and thus stable in its seed yield (kg/ ha) as indicated in the Figures 1 and 2.

advances-crop-science-technology-interaction

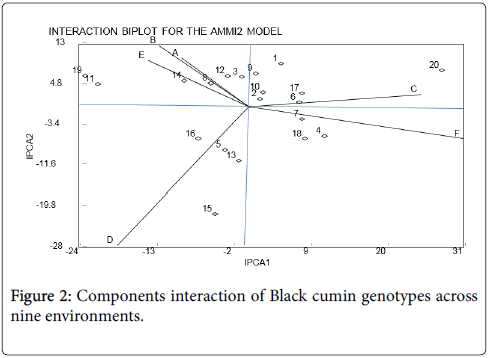

Figure 2: Components interaction of Black cumin genotypes across nine environments.

Genotypes: 1=MAB-050, 2=BC-DM-9, 3=AC-BC-19, 4=AC-DM-4, 5=AC-BC-16, 6=AC-BC-6, 7=MAB-057, 8=AC-BC-10, 9=AC-BC-8, 10=MAB-042, 11=AC-BC-9, 12=AC-BC-4, 13=AC-BC-15, 14=Local, 15=MAB-018, 16=Darbera, 17=AC-BC-7, 18=MAB-065, 19=Xereta-1 and 20=BC-DM-11.

Environments: A=ENV1, B=ENV2, C= ENV3, D=ENV4, E= ENV5 and F= ENV6.

Conclusion

The current study focused only on the agronomic performance evaluation. Thus, it is recommended to consider chemical characterization such as the fatty acids and oil content analysis in the future study. The present study indicated that the genotype showed excellent agronomic performance in the study areas implying that the areas are conducive for black cumin production. As AMMI analysis result revealed BC-DM-9 was the most stable genotypes followed by AC-BC-6 and AC-BC-19 and they can be released and used for production across locations.

References

  1. Hammo YH (2008) Effect of high levels of nitrogen and phosphorus fertilizer, pinching, and seed rate on growth and yield components of Nigella sativa L. 1-Vegetative growth and seed yield. Mesopotamia Journal of Agriculture 36: 34-32.
  2. Shah SH (2008) Effects of nitrogen fertilisation on nitrate reductase activity, protein, and oil yields of nigella sativa l. as affected by foliar GA_ {3} application. Turkish Journal of Botany 32: 165-170.
  3. Bardideh K, Kahrizi D, Ghobadi ME (2013) Character association and path analysis of black cumin (Nigella sativa L.) genotypes under different irrigation regimes. Notulae Scientia Biologicae 5: 104.
  4. Sadeghi SM, Samizadeh H, Amiri E, Ashouri M (2011) Additive main effects and multiplicative interactions (AMMI) analysis of dry leaf yield in tobacco hybrids across environments. African Journal of Biotechnology 10: 4358-4364.
  5. Thillainathan M, Fernandez GC (2002) A novel approach to plant genotypic classification in multi-site evaluation. HortScience 37: 793-798.
  6. Asfaw A, Alemayehu F, Gurum F, Atnaf M (2009) AMMI and SREG GGE biplot analysis for matching varieties onto soybean production environments in Ethiopia. Scientific Research and Essays 4: 1322-1330.
  7. Eberhart ST, Russell WA (1966) Stability parameters for comparing varieties 1. Crop Science 6: 36-40.
  8. Ebdon JS, Gauch HG (2002) Additive main effect and multiplicative interaction analysis of national turfgrass performance trials. Crop Science 42: 497-506.
  9. Voltas J, Van Eeuwijk F, Igartua E, Garcia del Moral LF, Molina-Cano JL, et al. (2002) Genotype by environment interaction and adaptation in barley breeding: basic concepts and methods of analysis. Barley Science: Recent Advances from Molecular Biology to Agronomy of Yield and Quality.
  10. Finlay KW, Wilkinson GN (1963) The analysis of adaptation in a plant-breeding programme. Australian Journal of Agricultural Research 14: 742-754.
  11. Shafii B, Price WJ (1998) Analysis of genotype-by-environment interaction using the additive main effects and multiplicative interaction model and stability estimates. Journal of Agricultural, Biological and Environmental Statistics, pp: 335-345.
  12. Zobel RW, Wright MJ, Gauch HG (1988) Statistical analysis of a yield trial. Agronomy Journal 80: 388-393.
  13. Crossa J (1990) Statistical analyses of multilocation trials. In Advances in Agronomy 44: 55-85.
  14. Gauch HG (2006) Statistical analysis of yield trials by AMMI and GGE. Crop Science 46: 1488-1500.
  15. Yan W, Kang MS, Ma B, Woods S, Cornelius PL (2007) GGE biplot vs. AMMI analysis of genotype-by-environment data. Crop Science 47: 643-653.
  16. Singh RK, Chaudhary BD (1979) Biometrical methods in quantitative genetic analysis. Biometrical Methods in Quantitative Genetic Analysis.
  17. Geremew E, Tilahun G, Aliy H (1998) A decade of research experience. SARC (eds.). Bulletin No. 4. Sinana agricultural research center, agricultural research coordination service, Oromia agricultural development bureau.
  18. SAS Institute Inc. (2008) SAS/STAT ®9.2 User’s Guide.Cary, NC: SAS Institute Inc.
  19. Stat IRRI (2003) International rice research institute. Metro Manila, Philippines.
  20. Purchase JL (1997) Parametric stability to describe GxE interactions and yield stability in winter wheat. South Africa.
  21. Assefa E, Alemayehu A, Mamo T (2015) Adaptability study of Black Cumin (Nigella sativa L.) Varieties in the Mid-and Highland areas of Kaffa Zone, South West Ethiopia. Agriculture, Forestry and Fisheries 4: 14-17.
  22. Ali MMK, Hasan MA, Islam MR (2016) Influence of Fertilizer Levels on the Growth and Yield of Black Cumin (Nigella sativa L.). The Agriculturists 13: 97-104.

Citation: Fufa M (2018) Agronomic Performance, Genotype X Environment Interaction and Stability of Black Cumin Genotypes Grown in Bale, Southeastern Ethiopia. Adv Crop Sci Tech 6:358. DOI: 10.4172/2329-8863.1000358

Copyright: © 2018 Fufa M. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
