Species Selective Measurement of 10 B. anthracis-Sterne Spores within 10 Minutes by Surface-Enhanced Raman Spectroscopy

Chetan Shende1, Hermes Huang2, Jay Sperry3 and Stuart Farquharson1*


1Real-Time Analyzers Inc., 362 Industrial Park Road, Unit 8, Middletown, CT-06457, USA

2Smiths Detection, 14 Commerce Drive, Danbury, CT 06810, USA

3University of Rhode Island, 45 Lower College Road, Kingston, RI 02881, USA

*Corresponding Author:
Stuart Farquharson
Real-Time Analyzers Inc.
362 Industrial Park Road
Unit 8, Middletown, CT-06457, USA
Tel: 860-635-9800

Received Date: January 20, 2016; Accepted Date: February 27, 2016; Published Date: March 03, 2016

Citation: Shende C, Huang H, Sperry J, Farquharson S (2016) Species Selective Measurement of 10 B. anthracis-Sterne Spores within 10 Minutes by Surface-Enhanced Raman Spectroscopy. J Anal Bioanal Tech 7:302. doi:10.4172/2155-9872.1000302

Copyright: © 2016 Shende C, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

Visit for more related articles at Journal of Analytical & Bioanalytical Techniques


The use of biological warfare agents by terrorists remains a global concern. While there has been substantial effort since the 2001 distribution of Bacillus anthracis spores through the US Postal System to develop analyzers to detect this and other biological agents, the analyzers lack sensitivity, lack specificity (produce high false-positive rates), are too slow, or cannot be fielded. For the past decade we have been investigating the ability of Surface Enhanced Raman spectroscopy (SERS) to overcome these limitations. Recently, we developed an assay by functionalizing silver nanoparticles with various peptides to selectively bind B. anthracis, and then adding acetic acid and silver colloids to release and detect, respectively, dipicolinic acid as a biomarker by SERS. Here we describe the successful measurement of B. anthracis-Sterne spores with a 10- to 20-fold selectivity over other Bacillus species at 105 spores/mL, using the peptide functionalized SERS assay with a sensitivity capable of detecting 10 spores in a 103 spores/mL sample in 6.5 minutes. This measurement represents 6 orders-of-magnitude improvement over our previous peptide based SERS assay measurements.


Bacillus anthracis; Anthrax; Biological warfare agents; Surface-enhanced Raman spectroscopy


During the most recent 2011 Biological Weapons Convention held in Geneva, US Secretary of State Hillary Rodham Clinton stated “Unfortunately, the ability of terrorists to develop and use these weapons is growing. Terrorist groups have made it known they want to acquire these weapons [1].” Consequently the need for a portable technology that can rapidly identify biological warfare agents with high specificity (no false-positive responses) and sensitivity (e.g. 104 spores for B. anthracis [1]) in the field remains. During the past decade, various techniques have been developed to detect and identify biological agents. Notable techniques include mass spectrometry [2], fluorescence [3], luminescence [4], infrared [5,6], and Raman spectroscopy [7], as well as the polymerase chain reaction (PCR) [8]. While all of these techniques have been employed for biological agent detection to some extent (e.g. identification of anthrax on mail sorting equipment by PCR), none of them satisfy all of the requirements of speed, sensitivity, selectivity, and field ruggedness, especially the latter as required by military personnel.

The most successful field techniques are based on immunoassays, such as enzyme-linked immunosorbent assays (ELISA) [9,10]. In an effort to improve upon this technique, a number of other antigenantibody based binding event reporter methods have been investigated. These techniques include cantilever [11,12], electrochemical [13], magnetic [14], piezoelectric [15], and surface plasmon resonance (SPR) based devices [16]. While these techniques are relatively fast, inexpensive, and easy to use, they suffer from high false-positive and false-negative rates due to a lack of specificity and sensitivity [17]. In the specific case of B. anthracis, other Bacillus spores, such as B. cereus, are common in the environment, and they share the same surface antigens used for antibody binding [18], increasing the false-positive rate.

Recognizing the limitations of all the techniques mentioned above, we have been developing a surface-enhanced Raman spectroscopy (SERS) based assay for the detection of trace quantities of biological agents, since it is capable of amplifying Raman signal intensities by 6 orders of magnitude or more [19]. We demonstrated the potential of SERS to detect Bacillus spores by performing the first measurements of dipicolinic acid (DPA) as a biomarker more than a decade ago [20]. DPA is a suitable biomarker, as it represents approximately 10% of the spore mass in the form of calcium dipicolinate (CaDPA) [21]. In the past few years, we developed and patented a method to extract DPA using acetic acid [22]. This method allowed detecting ~200 spores within 3 minutes [23,24], which is well below the estimated infectious dose of 104 spores for B. anthracis [2]. Although the use of DPA as a biomarker is a logical approach, the chances of false-positive identification are significant, since both Bacillus and Clostridium bacteria contain CaDPA in their protective outer layers. To overcome this limitation, we have been investigating the possibility of functionalizing silver nanoparticles with peptides that specifically bind B. anthracis, so that these spores can be selectively measured by SERS. Recently, several peptides have been identified that demonstrate high selectivity towards B. anthracis versus other Bacillus [25,26]. Peptides offer several advantages over the traditional antibody-antigen binding assays, in that they can be easily synthesized, functionalized, and covalently attached to sensor surfaces. Furthermore, they are more tolerant to heat and moisture, which extends their usable lifetime making them suitable for field use.

Previously, we reported the ability of this approach to detect 109 B. anthracis-Sterne spores per mL in less than 20 minutes [27]. Unfortunately, the addition of the peptide likely dampened the plasmon field responsible for the SER effect. Here we describe the addition of a second SER-active material to the assay in the form of a silver colloid to measure 10 B. anthracis-Sterne spores in a 103 spores/mL sample within 10 minutes, representing an improvement in sensitivity of 6 orders-of-magnitude!

Materials and Methods


All chemicals, reagents, and solvents, including those used to prepare the SER-active sol-gels, were purchased and used as received from Sigma-Aldrich (Milwaukee WI). All Bacillus samples were obtained from the American Type Culture Collection (Manassas, VA) and prepared by Professor Jay Sperry (University of Rhode Island) [28]. Stock solutions were serially diluted to produce the measured concentrations. Concentrations were verified by direct count of spores in 4 × 10-3 μL triplicate samples using a light microscope [25]. The concentrations of these samples were determined to be 5.7 × 109, 1.7 × 1010, 5.5 × 109, and 6.1 × 109 spores/mL for B. anthracis-Sterne, B. cereus, B. megaterium and B. subtilis, respectively. The ATYPLPIR peptide [26] used in this study was custom synthesized by New England Peptide (Gardner, MA). Glass capillaries, tubing, syringes and syringe ports were obtained from VWR Scientific (Arlington Heights, IL).

SER-active sol-gel capillaries

SER-active capillaries (Simple SERS Sample Capillaries, RTA) were prepared according to published procedures [28,29] by mixing a silver amine precursor and an alkoxide precursor at 1:1 v/v. The silver amine precursor consisted of a 1:1:2 v/v/v ratio of 1N AgNO3/28% NH4OH/CH3OH, while the alkoxide precursor consisted of methyltrimethoxysilane. The SERS capillaries were prepared by drawing 20 μL of the silver-doped sol-gels into 10 cm long, 0.8 mm inner diameter glass capillaries to produce ~1 cm long sol-gel segments. The segments were allowed to gel and cure for 12 hours, after which the incorporated silver ions were reduced with dilute NaBH4. Silver colloids were prepared from AgNO3 and NaBH4 according to literature [30] with modifications.

Peptide functionalized SERS capillaries

A cysteine residue was attached to the C-terminus of the peptide sequence, and served to link the peptide to the SER-active metal surface. Cysteine forms a strong covalent bond with silver via the sulfur of its thiol side chain. The peptide functionalization of silver nanoparticles was carried out by adding 10 μL of peptide solution to the SER-active sol-gel segments immobilized within the glass capillaries. After the peptide was allowed to react with the SER-active metal, water was passed through the capillary to remove any unbound peptide.

SERS analysis

For measurements the SERS capillaries were mounted on an XY stage (Conix Research, Springfield, OR) such that the focal point of an f/0.7 aspheric lens of a fiber optic probe was just inside the capillary glass wall. A software program developed in-house was used to measure 1 min spectra at 9 points spaced 1 mm apart along the length of the metaldoped sol-gel segment. A Fourier transform Raman spectrometer (Real-Time Analyzers, Middletown, CT), equipped with a 785 nm diode laser (Innovative Photonic Solutions, Monmouth Junction, NJ) and a Si-photo-avalanche detector (Perkin Elmer, Stamford, CT) was used to deliver 80 mW of power and collect spectra at 8 cm-1 resolution.

Results and Discussion

Functionalization of silver nanoparticles with the B. anthracis specific peptide was investigated in terms of reaction times and peptide concentrations. In each case, 10 μL of peptide was added to a previously prepared glass capillary, which was sufficient to saturate the 1 cm segment of the SER-active sol-gel. After each experiment, the SER-active sol-gel was flushed with 10 mL of HPLC grade water to remove any unbound peptide. Peptide functionalization to the silver nanoparticles was verified by observing the SERS of the peptide. Initially, 1 mg/mL peptide was allowed to react with the silver for 8 hours to ensure success. This time was decreased by factors of 2 until the SERS intensity of the peptide decreased. This occurred at binding times below 0.5 hours. As shown in Figure 1A, the SER spectrum of the peptide is very similar to cysteine, both dominated by the peak at 657 cm-1 due to the sulfur-silver vibrational mode, as well as cysteine peaks at 863, 1067, and 1394 cm-1 due to a CC stretch, CN stretch, and CH2 wag, respectively [31]. The other amino acids of the peptide do not contribute significantly to the spectrum.


Figure 1: SERS of A) 1 mg/mL i) ATYPLPIRC peptide specific to B. anthracis functionalized in a SER-active capillary and ii) cysteine in a SER-active capillary. B) 100 μg/mL DPA added to SER-active capillaries treated with i) 5, ii) 10, and iii) 50 μg/mL peptide. Sample conditions: 0.5 hr peptide reaction time, DPA measured immediately. Spectral conditions: 75 mW of 785 nm laser excitation, 9 min acquisition (nine 1-min points along capillary averaged), 8 cm-1 resolution using RTA’s FT-Raman analyzer. Spectra are displayed on the same intensity scale, but offset for clarity.

In addition to the reaction time it was important to determine the peptide concentration that would provide monolayer coverage of the silver, so that chemicals or biochemicals introduced with a sample would not produce interfering SER spectral features. To establish monolayer coverage, a high concentration of DPA, 100 μg/mL, was added to the silver nanoparticles functionalized with various amounts of peptide. Since DPA is a highly SER-active molecule, it would produce a spectrum through interaction with any silver surface uncovered by the peptide. DPA produces several characteristic SERS peaks at 659 (coincident with the dominant peptide peak), 812, 1007, and 1381 cm-1, which have been previously assigned to a CC ring bend, a CH out-ofplane bend, the symmetric pyridine ring stretch, and OCO symmetric stretch, respectively [8]. It was found that the DPA spectrum was relatively intense, barely discernible, and absent at 5, 10 and 50 μg/ mL peptide, respectively (Figure 1B). Based on these measurements, peptide functionalized capillaries were prepared by reacting 100 μg/mL peptide for 0.5 hours to ensure monolayer coverage.

Measurements of B. anthracis-Sterne spores, an avirulent strain of B. anthracis, were performed at the University of Rhode Island to determine optimum sample and reagent volumes, and reaction (binding) time for detecting B. anthracis by SERS. Once determined, these conditions were used to demonstrate selective binding of the B. anthracis peptide versus B. cereus, B. megaterium, and B. subtilis, as well as to determine the limit of detection for B. anthracis-Sterne. For each of the Bacillus samples, initial 1 mL wet suspensions of the spores were diluted by a factor of 300. These samples were then diluted to produce serial concentrations of 105, 104, 103 and 102 spores/mL. A starting concentration of 105 spores/mL was selected as based on 1) a previous measurement of 10 ng/mL chemical DPA using unfunctionalized SERactive capillaries [32], and 2) the fact that 10 ng DPA corresponds to ~105 spores. The latter assumes that 10% of the spore mass is DPA [22], and that 1 spore has a mass of ~1 pg [33,34].

The following steps were found to repeatedly produce quality spectra for B. anthracis-Sterne at 105 spores/mL: 1) draw 10 μL of spores into the peptide functionalized, SER-active capillaries; 2) allow the spores to bind to the peptides; 3) draw 50 μL of water through the capillary to remove unbound spores; 4) draw 10 μL of silver colloid as prepared [31] into the capillary to coat the spores; 5) draw 10 μL acetic acid solution into the capillary to cause DPA to be released from the spores; 6) mount the capillary on the XY stage of the Raman spectrometer; and 7) measure the SERS at 9 points along the capillary. Measurements of 105 B. anthracis-Sterne spores/mL using this procedure produced intense DPA spectra for binding times of 30, 15, and 5 minutes (Figure 2). Since one of the goals was to establish the minimum time to perform the measurement, the 5 min binding time was used for the B. anthracis-Ames samples, as it produced a sufficiently intense DPA spectrum.

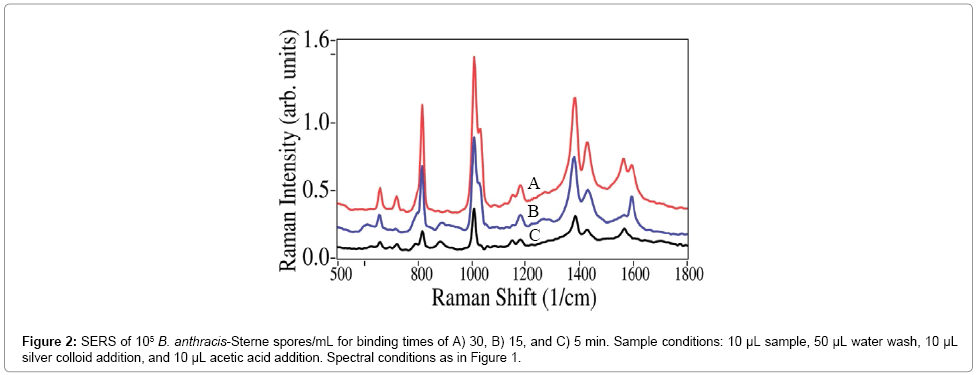

Figure 2: SERS of 105 B. anthracis-Sterne spores/mL for binding times of A) 30, B) 15, and C) 5 min. Sample conditions: 10 μL sample, 50 μL water wash, 10 μL silver colloid addition, and 10 μL acetic acid addition. Spectral conditions as in Figure 1.

Next, the other bacilli at 105 spores/mL were measured on the B. anthracis specific peptide functionalized SERS capillaries. Again, measurements followed the above procedure, but in this case 15 min binding times were used to better represent the selectivity of the peptide. As shown in Figure 3A, the intensities of the 1007 cm-1 peak for B. cereus, B. megaterium and B. subtilis are ~10%, 6%, and 5%, respectively, of that for B. anthracis-Sterne. The presence of DPA in the spectra for these bacilli is not surprising, since it is known that some non-specific binding occurs [27]. The lower discrimination against B. cereus has been attributed to its closer relation to B. anthracis [26]. It should be noted that the inability to completely flush these spores out of the porous sol-gel structure could also contribute to the lack of specificity. While this level of discrimination by itself may not suffice for positive B. anthracis, the use of a second assay, such as one for B. cereus, could be used to rule out false positives.

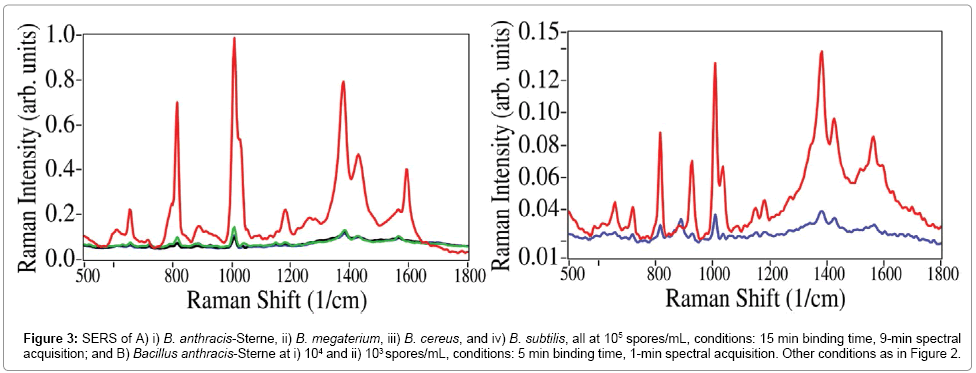

Figure 3: SERS of A) i) B. anthracis-Sterne, ii) B. megaterium, iii) B. cereus, and iv) B. subtilis, all at 105 spores/mL, conditions: 15 min binding time, 9-min spectral acquisition; and B) Bacillus anthracis-Sterne at i) 104 and ii) 103 spores/mL, conditions: 5 min binding time, 1-min spectral acquisition. Other conditions as in Figure 2.

Finally, B. anthracis-Sterne was measured at 104 and 103 spores/ mL to determine the limits of detection (Figure 3B). At these lower concentrations, other weak spectral features become noticeable, such as a peak at 930 cm-1 due to acetic acid (AA), a peak at 1044 cm-1 due to nitrate (NO3-) from the silver nitrate used to prepare the colloid, and a broad feature from 1200 to 1800 cm-1 due to glass luminescence from the capillary. It is worth noting that the actual number of spores in the 103 spores/mL sample is ~10 spores, since only 10 μL of sample was introduced into the capillary. Furthermore, the signal-to-noise ratio (S/N) is 28 using the baseline corrected 1007 cm-1 peak height and the standard deviation noise between 1700 and 1800 cm-1. Based on a limit of detection defined as a S/N of 3, this suggests that a single spore could be detected, or 100 spores/mL assuming the SERS signal intensity is relatively linear in this range. Finally, both spectra presented in Figure 3B were acquired in 1 minute, so that the entire measurement time was ~6.5 minutes (5 min to load the sample, 0.5 min to load the reagents, and 1 min to measure the sample).


A method was successfully developed to selectively detect 10 B. anthracis-Sterne spores from a 103 spores/mL sample in 6.5 minutes. This was accomplished by functionalizing silver nanoparticles within a porous sol-gel with a B. anthracis specific peptide, and then adding acetic acid and silver colloids to release and detect, respectively, DPA by SERS as a biomarker. The assay provided a 10- to 20-fold discrimination against B. cereus, B. megaterium and B. subtilis at 105 spores/mL. Current research is aimed at developing an automated flow system coupling the output of an aerosol collector to the capillaries. The technology, once developed should prove invaluable for real-time monitoring of biological agents at potential terrorist targets.


The authors are grateful for funding from the National Science Foundation (DMI-0349687, IIP-0810335, and II-0956170) and the Defense Advanced Research Projects Agency (N10PC2077 and D11PC20171).
