The Effect of Alterations of Calcaneal Height on the Ankle and Chopart’s Joint: A Cadaveric Study

Yousri T, Wright SE* and Atkins R

Deprtment of Orthopaedic, Foot & Ankle Unit, Royal National Orthopaedic Hospital, Stanmore, United Kingdom

Corresponding Author:
Wright SE
Senior Orthopaedic Fellow, Deprtment of Orthopaedic
Foot & Ankle Unit, Royal National Orthopaedic Hospital
Stanmore, United Kingdom
Tel: 07973702074
E-mail: [email protected]

Received Date: July 05, 2017; Accepted Date: July 25, 2017; Published Date: July 31, 2017

Citation: Yousri T, Wright SE, Atkins R (2017) The Effect of Alterations of Calcaneal Height on the Ankle and Chopart’s Joint: A Cadaveric Study. Clin Res Foot Ankle 5:242. doi: 10.4172/2329-910X.1000242

Copyright: © 2017 Yousri T, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

Visit for more related articles at Clinical Research on Foot & Ankle

Abstract

Fracture of the calcaneum is common, and the majority are displaced intra-articular fracture patterns. Over the last three decades there have been considerable advances in the management of this injury. Open reduction and internal fixation is an accepted treatment for displaced fractures, and percutaneous techniques are now emerging. However, surgical treatment remains controversial, and many fractures are still managed conservatively.

Non-operative management of displaced fractures may result in a disabling fracture malunion. The malunion is often a widened and depressed calcaneum, with subtalar joint disruption. This creates a five time risk of requiring a subtalar arthrodesis within 5 years of injury. Affected patients are frequently men of working age, with potentially significant socioeconomic consequences. Bone Block Distraction Arthrodesis (BBDA) is a technique used for the management of calcaneal malunion. In BBDA, restoration of the talocalcaneal height has been described for reconstitution of the talocalcaneal relationship. By restoring the talo calcaneal height, anterior tibio-talar impingement is relieved and ankle dorsiflexion range improved.

In our clinical experience we have also noted a rotational change in the talus with loss of calcaneal height. We hypothesised that depression of the calcaneal articular surface causes extension of the talus in the sagittal plane, causing anterior tibiotalar impingement, but additionally, incongruity of the talonavicular joint. This hypothesis is important in surgical correction, because classical BBDA may need to be modified to include reversal of the abnormal talar rotation to restore Chopart’s joint alignment. Appropriate restoration of the subtalar joint surface and talonavicular joint anatomy is likely to reduce the need for arthrodesis, and improve function.

This cadaveric study is a proof of concept aiming to demonstrate changes in talar inclination and talo-navicular joint alignment following loss of calcaneum height, as is the case in calcaneum malunion, and then following restoration of the calcaneal height as in BBDA.

Keywords

Calcaneum; Fracture; Chopart; Cadaveric

Introduction

Fracture of the calcaneum is common, accounting for 60% of tarsal fractures and 2% of all fractures [1]. The majority are displaced intra-articular fracture patterns. Over the last three decades there have been considerable advances in the management of this injury. Open reduction and internal fixation has become an accepted treatment [2-6] with a good functional outcome [7,8]. Percutaneous techniques are also emerging. However, treatment remains controversial, and many fractures are still managed conservatively [9-13].

Non-operative management of displaced fractures may result in a disabling fracture malunion. Affected patients are frequently men of working age, with potentially significant socioeconomic consequences. Buckley’s RCT demonstrated a 5.5X risk of requiring a subtalar arthrodesis following non-operatively managed types II and III calcaneal fractures in patients followed up for 3 years [14]. Car et al. described Bone Block Distraction Arthrodesis (BBDA) for the management of calcaneal malunion. In BBDA, restoration of the talocalcaneal height has been described for reconstitution of the talocalcaneal relationship. By restoring the talocalcaneal height, anterior tibio-talar impingement is relieved and ankle dorsiflexion range improved [15].

In our clinical experience we have also noted a rotational change in the talus with loss of calcaneal height. We hypothesis that depression of the calcaneal articular surface causes extension of the talus in the sagittal plane, and not only do we get anterior tibio-talar impingement, but additionally, incongruity of the talonavicular joint.

This hypothesis is important in that surgical correction undertaken during classical BBDA may need to be modified to include reversal of the abnormal rotation of the talus to restore Chopart’s joint alignment.

This cadaveric study is a proof of concept aiming to demonstrate changes in talar inclination and talo-navicular joint alignment following loss of calcaneum height, as is the case in calcaneum malunion, and then following restoration of the calcaneal height as in BBDA.

Methodology

Ethical approval for this cadaveric study was granted from the local research and ethics committee. Four pairs of previously fresh frozen cadaveric adult lower limbs were thawed at room temperature. No gross pathology of the specimens was observed. All of the lower limbs were amputated at the level of the tibial diaphysis. An extended lateral approach was performed on all specimens [16]. The dissected fasciocutaneous flap was then removed to expose the calcaneum. All tendons were preserved during dissection. The peroneal tendons were released from their sheath and mobilised anteriorly to allow visualisation of the sulcus calcanei. To keep the bone blocks consistent across all specimens, reproducible anatomical landmarks were used to guide the osteotomies. A line was drawn from the sulcus calcanei to the lateral process (Line a, Figure 1). Another line was drawn 1 cm anterior and parallel to this line to mark the anterior limit of the osteotomies (Line b, Figure 1). The osteotomies were then made at 5 mm intervals parallel to the sole of the foot. The posterior limit of the osteotomies was the anterior edge of the achilles tendon. Uni-cortical osteotomies were made using a power a saw, preserving the medial cortex of the calcaneum (Figure 2). The osteotomies were completed after mounting the legs on the frame. To allow axial load through the ankle and hind foot each specimen was mounted on a frame. This consisted of a 2 ring Taylor Spatial Frame (TSF) connected together by 2 struts posteriorly and 2 threaded rods anteriorly. 3 half pins in the tibia were used to fix each specimen proximally. Inferiorly, a half ring was applied underneath the heel to provide a counter force. A 4th half pin was inserted into the 1st and second metatarsal to fix and control the forefoot in the frame (Figure 3).

clinical-research-foot-ankle-Specimen

Figure 1: Specimen showing the soft tissue dissection and the lines marked prior to proceeding to osteotomies.

clinical-research-foot-ankle-uni-cortical

Figure 2: Specimen showing uni-cortical osteotomies prior to mounting on the frame.

clinical-research-foot-ankle-Mounting

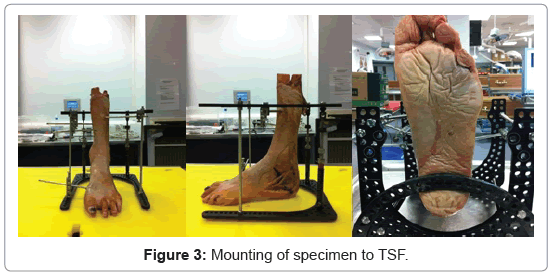

Figure 3: Mounting of specimen to TSF.

Radiographic assessment

Before removing the bone blocks from the calcaneum a lateral radiograph of the foot was taken. The most proximal block was then taken from the calcaneum by completion of the osteotomy. Shortening the struts and the rods was used to carry out axial compression. The compression was stopped when the bone surfaces were visualized to have come into contact. A lateral radiograph was then repeated. Similarly, the second and third osteotomy blocks were taken out and further axial compression was applied. Lateral radiographs were performed at each stage (Figure 4).

clinical-research-foot-ankle-Lateral-radiograph

Figure 4: Lateral radiograph following removal of 1.0cm of bone blocks.

The image intensifier was set up for each specimen at a standard distance of 1 meter and a trial lateral radiograph was then taken to ensure visualization of the hind foot. The position of the frame was marked on the table to avoid changes in radiograph projections with repeated images.

To study the effect of over restoration of the calcaneum height, blocks of 2.0 cm and 2.5 cm were positioned in the space created by removing the bone blocks only 1.5 cm in size. This simulated over distraction that could occur during calcaneal height restoration in BBDA. Lateral radiographs were performed after each of the blocks was positioned (Figure 5).

clinical-research-foot-ankle-subtalar-joint

Figure 5: Lateral radiograph following 1.0cm of over distraction of the subtalar joint.

Radiographic measurements

The axis of the talus was defined by a line passing through the anterior-superior corner of the talus bone and tangential to the superior aspect of the posterior process of the talus. The axis of the navicular bone was defined by drawing a line perpendicular to a line tangential to the concavity of the navicular bone. The mechanical axis of the tibia was defined by, drawing a line intersecting the midpoint of two parallel lines perpendicular to the cortex of the tibia (Figure 6).

clinical-research-foot-ankle-navicular

Figure 6: Axis of the tibia, talus and navicular on a lateral radiograph.

Wilcoxon signed rank test was used to assess correlation between the angles measured and the compression or distraction applied to the calcaneus. A p value of less than 0.05 was deemed significant.

Figure 7 shoes an example of the planned osteotomies (top left), bone resection with resultant compression (0.5 cm top right, 1.0 cm middle left, 1.5 cm middle right), followed by distraction (0.5 cm bottom left, 1.0 cm bottom right).

clinical-research-foot-ankle-planned-osteotomies

Figure 7: An example of the planned osteotomies (top left), bone resection with resultant compression (0.5cm top right, 1.0cm middle left, 1.5cm middle right), followed by distraction (0.5cm bottom left, 1.0cm bottom right).

Results

8 specimens (S1-S8) were examined. In 4 of the specimens, 3 osteotomies were undertaken as planned. 4 specimens had calcanei of a smaller height, and only 2 osteotomies were performed to maintain integrity of the specimen during testing (S5–S8).

Tables 1-3 show the measurements for tibio-talar, tibionavicular and talonavicular angles. These measurements were from the intact specimens, following 0.5 cm, 1.0 cm or 1.5 cm of compression, followed by 0.5 cm and 1.0 cm of distraction.

  (1)
Tibio-talar Angle
+10mm distraction
(2)
Tibio-talar Angle
+5mm distraction
(3)
Tibio-talar Angle
Normal
(4)
Tibio-talar Angle
-5mm compression
(5)
Tibio-talar Angle
-10mm compression
(6)
Tibio-talar Angle
-15mm compression
S1 85 77 75 70 68 65
S2 102 90 88 83 83 80
S3 90 88 85 85 83 76
S4 92 88 85 75 70 70
S5 92 90 88 82 76 -
S6 85 80 80 75 70 -
S7 100 95 89 84 80 -
S8 90 82 90 69 64 -

Table 1: Tibio-talar angles following compression and distraction of the calcaneum.

clinical-research-foot-ankle-Graphical-representation

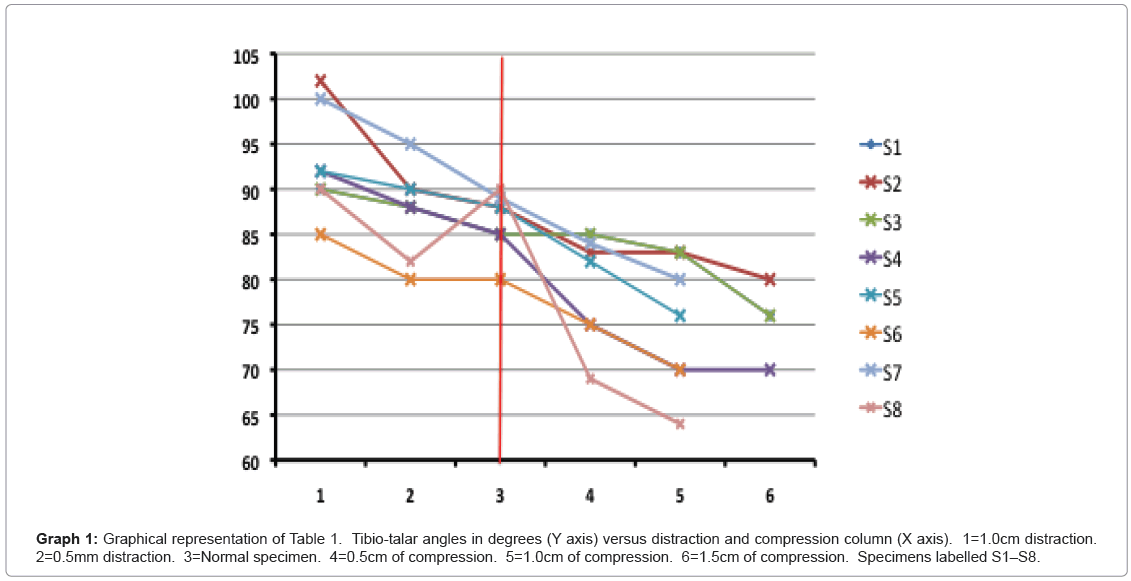

Graph 1: Graphical representation of Table 1. Tibio-talar angles in degrees (Y axis) versus distraction and compression column (X axis). 1=1.0cm distraction. 2=0.5mm distraction. 3=Normal specimen. 4=0.5cm of compression. 5=1.0cm of compression. 6=1.5cm of compression. Specimens labelled S1–S8.

  1)
Tibionavicular Angle
+10mm distraction
2)
Tibionavicular Angle
+5mm distraction
3)
Tibionavicular Angle
Normal
4)
Tibionavicular Angle
-5mm compression
5)
Tibionavicular Angle
-10mm compression
6)
Tibionavicular Angle
-15mm compression
S1 115 110 118 112 105 103
S2 128 120 121 115 115 115
S3 122 120 120 116 115 108
S4 118 105 113 110 105 102
S5 122 118 123 116 115 -
S6 111 111 110 107 105 -
S7 120 120 119 115 113 -
S8 115 113 121 103 103 -

Table 2: Tibio-navicular angles following compression and distraction of the calcaneum.

clinical-research-foot-ankle-compression-column

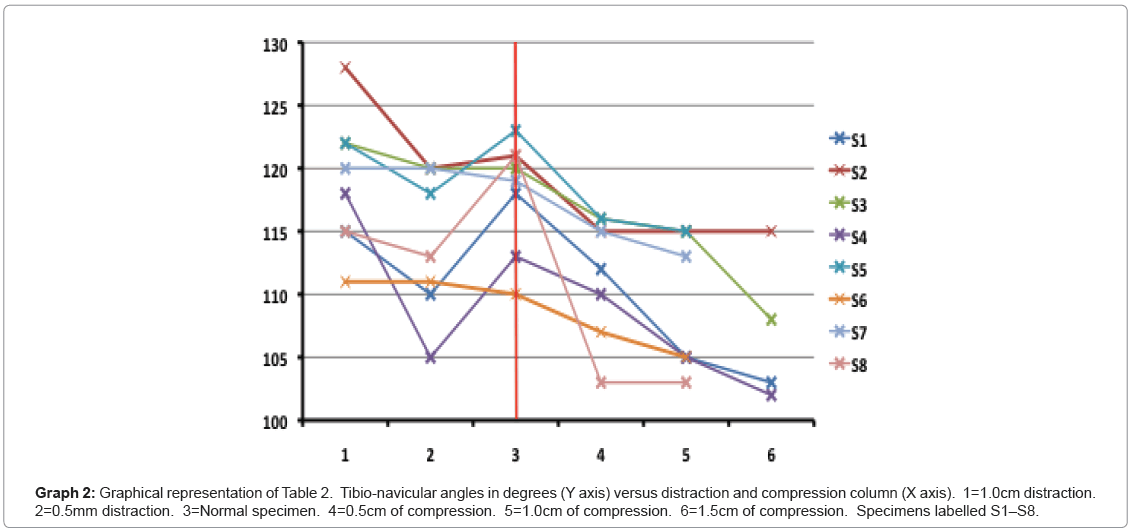

Graph 2: Graphical representation of Table 2. Tibio-navicular angles in degrees (Y axis) versus distraction and compression column (X axis). 1=1.0cm distraction. 2=0.5mm distraction. 3=Normal specimen. 4=0.5cm of compression. 5=1.0cm of compression. 6=1.5cm of compression. Specimens labelled S1–S8.

  Talonavicular Angle
+10mm distraction
Talonavicular Angle
+5mm distraction
Talonavicular Angle
Normal
Talonavicular Angle
-5mm compression
Talonavicular Angle
-10mm compression
Talonavicular Angle
-15mm compression
S1 32 35 42 42 38 40
S2 25 30 35 35 35 35
S3 32 35 35 30 32 35
S4 28 30 30 36 35 35
S5 30 30 35 35 36 -
S6 25 30 32 32 34 -
S7 22 25 30 30 33 -
S8 25 30 32 37 40 -

Table 3: Talonavicular angles following compression and distraction of the calcaneum.

clinical-research-foot-ankle-Talo-navicular

Graph 3: Graphical representation of Table 3. Talo-navicular angles in degrees (Y axis) versus distraction and compression column (X axis). 1 = 1.0cm distraction. 2 = 0.5mm distraction. 3 = normal specimen. 4 = 0.5cm of compression. 5 = 1.0cm of compression. 6 = 1.5cm of compression. Specimens labelled S1 – S8.

Tibio-talar angle

Results show that loss of calcaneal height (compression) was associated with a progressive decrease in the tibio-talar angle, whereby the talus extends in the sagittal plane with calcaneal collapse. Statistical analysis (Wilcoxon test) showed a statistically significant change in the axis of the talus to that of the tibia (P value: 0.012) with loss of calcaneum height.

As expected, following addition of the distraction blocks, a statistically significant change was noticed in the axis of the talus to that of the tibia with over correction of the calcaneum height, with progressive flexion of the talus with restoration of the calcaneum height, and an increase beyond the normal tibio-talar angle for that specimen with over distraction (P value: 0.018).

Tibio-navicular angle

A similar decrease in the angle between the axis of the navicular and tibia was shown with loss of calcaneal height (compression). Statistical analysis (Wilcoxon test) showed a statistically significant change in the axis of the navicular to that of the tibia (P value=0.012) with calcaneal collapse.

Following distraction, no significant change was noted in the tibionavicular axis. No specimens demonstrated return to pre-osteotomy value, 3 remained under corrected, and 5 became over corrected (P value=0.574).

Talo-navicular angle

The talo-navicular angle increased with loss of calcaneal height. Distraction was powerful at reducing the angle, and reduced it beyond normal for each specimen. The values observed were not statistically significant within this parameter despite the trend seen.

Discussion

This study demonstrates that with calcaneal collapse there is a significant change in the axis of the talus relative to the tibia, whereby the talus extends in the sagittal plane as it falls into the collapsed posterior calcaneal facet. Despite this the talus largely maintains its relationship with the navicular as this also extends relative to the anatomical tibial axis. With distraction, however, this relationship seems to be lost slightly with the talus flexing relative to the navicular.

Zwipp et al radio-graphically assessed the lateral talocalcaneal angle, talar declination angle and talus first metatarsal angle before and after subtalar BBDA in 31 patients with malunited calcaneum fractures and showed significant restoration of these angles towards normality with restoration of the calcaneal height [8]. Singh & Vinay evaluated over 300 patients with calcaneal fractures fixed with a plate, and compared those who were grafted, and those who weren’t [17]. Those grafted had better restoration of Bohler’s angle both immediately and after 2 years, and were able to bear weight earlier. Su et al showed that post-operative Bohler’s angle significantly correlates with improved functional scores [18].

We were expecting to see a more dramatic change in the talonavicular axis with calcaneal depression. It maybe that the changes we see in clinical practice are the result of chronic altered forces across the Chopart joints as a result of weight bearing with a collapsed calcaneum. It could be that in the acute calcaneal fracture, stabilising ligaments are disrupted, or there is involvement of the calcaneo cuboid joint, neither assessed in this study. Additionally, we only assessed the talonavicular joint on a lateral radiograph and therefore may have missed changes in their relationship in the coronal and axial planes. This is a cadaveric study and functional outcome implications cannot be made. Clinical papers are undecided whether a subtalar or triple fusion is the best salvage procedure following calcaneal fracture.

The concept is supported in our cadaveric model by statistically significant restoration of the talus axis with correction of the calcaneum height. Fixation to treat calcaneal fractures should aim to restore height to maintain anatomical relations of the talus.

Refrences
