Cholangiocarcinoma is a complex disease, in most cases unresectable at the diagnosis. The cornerstone of management is biliary drainage. The endoscopic approach, in particular, is the treatment of choice both preoperatively and in the forms that require palliation. It makes use of a wide range of stents: plastic, metal self-expanding, bare, covered. Complicated hilar strictures require appropriate work-up, technical skill, strategy. Photodynamic therapy has proved to offer significant advantages in terms of survival and quality of life and favorable results as neo-adjuvant and adjuvant therapy against a discrete tolerability and fewer side effects than chemotherapy.
Cholangiocarcinoma; Endoscopic biliary drainage; Photodynamic therapy; EUS; Quality of life
Cholangiocarcinoma (CC) is a relatively rare tumor, being second in frequency after hepatocarcinoma as regards to malignant liver tumors and being responsible for approximately 3% of all gastrointestinal invasive neoplasms .
It may affect both the intra- and extra-hepatic biliary tree. About 20-30% of them are localized in distal main biliary tract, approximately 10% of them have an intra-hepatic involvement, whereas about two thirds develop at the carrefour, being called Klatskin tumors
According to the Bismuth-Corlette classification , we recognize four types, based on involvement of hepatic left and right ducts. This classification is helpful not only in case of surgical treatment, but also in view of stent insertion both endoscopically and percutaneously. Endoscopic and percutaneous techniques allow access to obstructed bile ducts for subsequent diagnostic and therapeutic procedures. Both methods have advantages and disadvantages. Choosing between one or the other depends on several factors, such as anatomy of the upper gastrointestinal tract (for example, previous gastric resection), the stricture site and local expertise. Percutaneous approach (PTC) is more invasive and is usually adopted when endoscopic approach (ERCP) has failed or it could fail due to the stenosis difficulty . The cornerstone of management is biliary drainage, both for symptomatic relief and for prevention of potential hepatotoxicity due to the chemotherapic agents, should the patient have an indication to chemotherapy. Drainage achieved through PTC is deemed to have a higher success rate than through ERCP. In a recent retrospective comparison, however, no difference between the two techniques was observed in terms of incidence of cholangitis, overall complications, procedure-related mortality and stent patency  (Table 1).
|No. of patients [%] [n = 85]||Endoscopic||Percutaneous||P value|
|SEMS [%]||SEMS [%]|
|[n = 44]||[n = 41]|
|Successful||72 [84.7]||34 [77.3]||38 [92.7]||0.049|
|Procedure- related||26 [30.6]||13 [29.5]||13 [31.7]||13 [31.7]|
|Cholangitis||22 [25.9]||13 [29.5]||9 [22.0]||0.424|
|Procedure-related||1 [1.2]||1 [2.3]||0||0.229|
Table 1: [by Paik WH et al. Gastrointestinal Endoscopy 2009] Initial clinical outcomes after biliary decompression by biliary drainage procedure [long-term clinical outcomes in 72 patients who underwent initial successful biliary decompression and in all 85 enrolled patients] SEMS: selfexpandable metal stent.
The physiopathological premise of a pre-operative biliary drainage [PBD] should be to increase hepatic parenchyma resistance to ischemia, allowing it to overcome the surgically-induced damage. Through that way blood loss would also be reduced .
Coming to recent clinical studies, however, Liu et al.  – in a review published in 2011 – concluded that – by and large – there is no evidence of a clinical benefit in performing PBD in surgical candidates (Table 2).

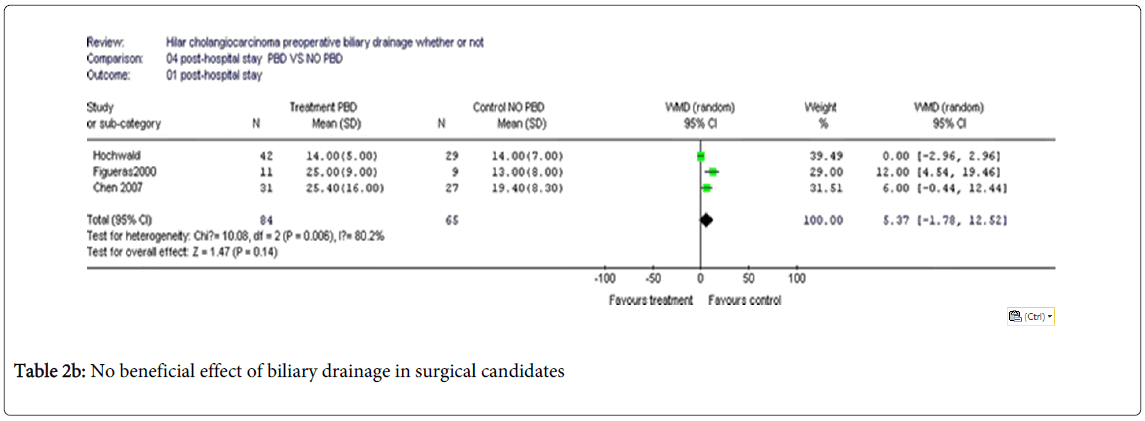

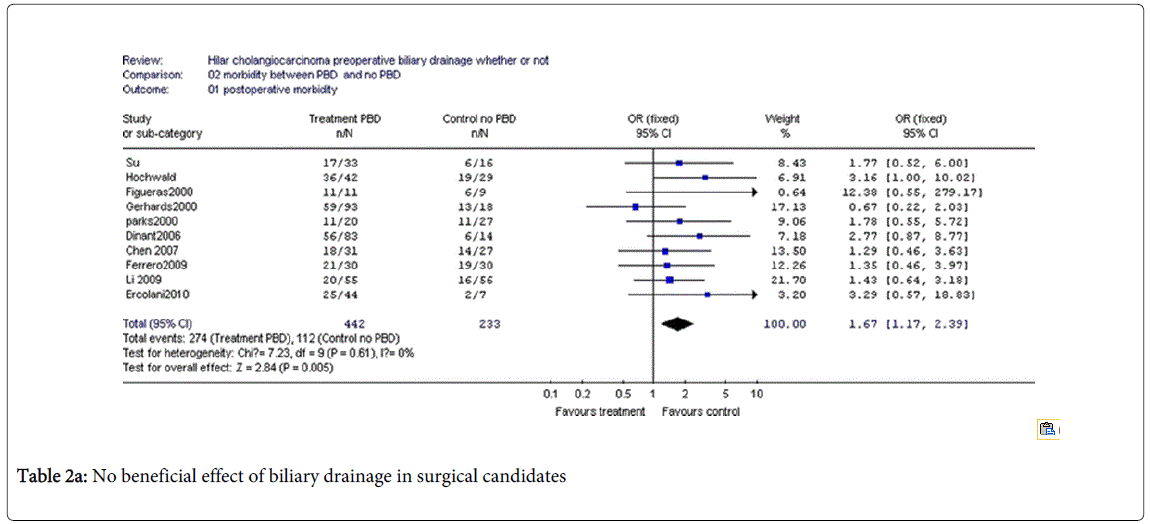

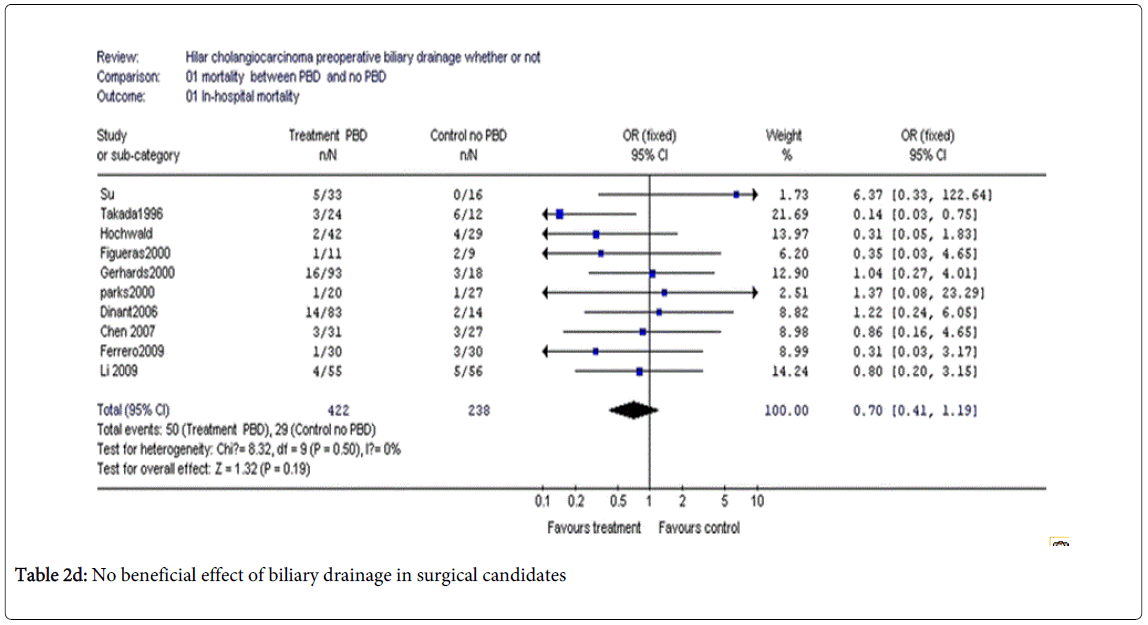

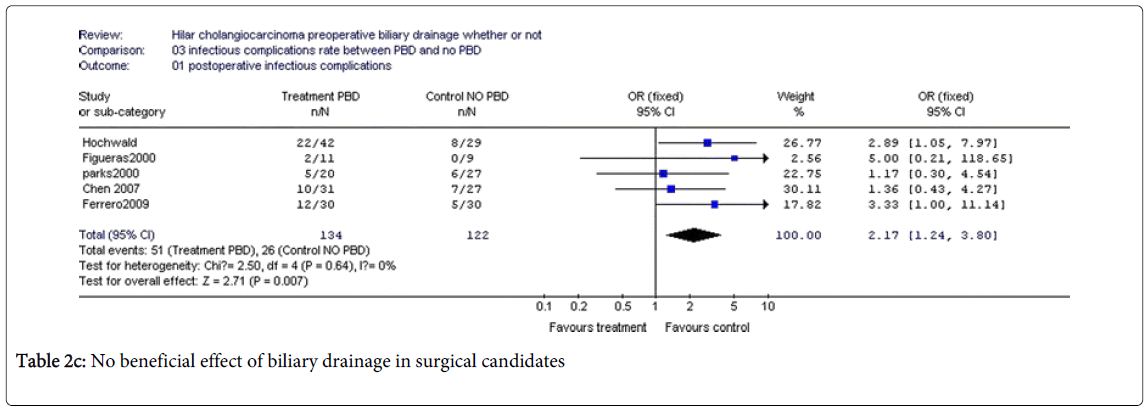

Series of Tables 2a-2d by Fei Liu  showing no beneficial effect of biliary drainage in surgical candidates. Nevertheless, they identified a few clinical exceptions, mainly portal embolization, a procedure used to induce hypertrophia in residual segments in case of enlarged hepatectomy, which is impaired by hyperbilirubinemia. The role of routine PBD in resectable hilar cholangiocarcinoma remains controversial mainly due to the potential procedure–related morbidity and mortality when using one of the three available methods [percutaneous transhepatic biliary drainage-PTBD, endoscopic retrograde biliary drainage-ERBD and endoscopic naso-biliary drainage-ENBD].
Each of the above mentioned methods have some advantages over the other in relation to the risk of complications, capability to clearly define the correct tumor morphology and extension, patient compliance and finally the surgeon’s preference and skillness.
The ENBD seems to be the most appropriate procedure of PBD, because of the lower risk of tract tumor seeding and inflammatory response . However, it implies the following drawbacks that make it unpopular and not accepted everywhere: poor tolerability, risk of accidental removal and a long hospital stay. So far, ERBD and PTBD continue to be the most common techniques worldwide adopted. However, regardless of the surgical center’s preferred technique, the main recommended concept is a short duration of PBD whenever a surgical procedure is scheduled.
In clinical practice, if the patient is due for surgery within two weeks, biliary drainage is considered not indicated, mainly because it carries a sensible complication rate [cholangitis, pancreatitis and perforation] . Otherwise, once the drainage is achieved, it needs a certain time frame to act. In fact, Liu et al. , relying on a study of Koyama , hypothesized a 4-6 weeks time necessary to the hepatocyte in order to recover from damage secondary to prolonged jaundice. A shorter interval could be insufficient, whereas a longer one could expose the patient to the risk of infection. The studies that analyzed pre-operative biliary drainage in hilar cholangiocarcinoma patients undergoing surgical resection are described in Table 3.
|Studies which have analyzed preoperative biliary drainage in hilarcholangiocarcinoma patients undergoing surgical resection|
|Ref.||Total number of patients with PBD||PBD associated morbidity||Serum bilirubin before surgery [mg/dL]||Duration of PBD [d]||Post-oper. morbidity||Postoperative complications||Infectious complications||5-year survival rate|
|Hochwaldet al, Arch Surg1999||42 [PTBD 23; ERBD 13; intraoperative 3; ENBD 1; PTBD and
ERBD 1; ERBD and ENBD 1]
5.6 ± 0.9
|Figueraset al, Liver Transpl 2000||11 [PTBD 11]||---||11 ± 9.4||16 ± 10||100%||9%||18%||25%|
|Ferrero et al, world J Surg 2009||30 [PTBD 18; ERBD 7; ERBD and PTBD 3;
|Kloeket al, j GastrointestSurg 2010||101
[PTBD 11; ERBD 90]
|76%||PTBD 1.1 ± 0.8;
ERBD 1.3 ± 1.2
|PTBD 11 [3-21];
ERBD 15 [4-29]
|Grandadamet al, Ann SurgOncol 2010||12 [PTBD 12]||25%||4.1 ± 2.5||32 ± 9||13%||0||---||42%|
|Kawakami et al, J Gastroenterol2011||128 [PTBD 48; ERBD
20; ENBD 60]
|Rattiet al,Worl J Surg 2013||55 [PTBD 51; ERBD 4]||18%||3.4 ± 1.5||24 [10-36]||46%||5%||7%||29%|
|Fargeset al, Br J Surg 2013||180 [PTBD 104; ERBD
63; PTBD and ERBD
Table 3: By Paik WH et al. Preoperative biliary drainage in hilar cholangiocarcinoma, World J Gastrointestinal Endosc 2014
All reports were retrospective studies. Data are expressed as mean ± SD or median [range]. PBD: Preoperative biliary drainage; PTBD: Percutaneous transhepatic biliary drainage; ERBD: Endoscopic retrograde biliary drainage; ENBD: Endoscopic nasobiliary drainage.
Based on the fact that around 80% of hilar CCs are inoperable at the time of diagnosis, most experiences in biliary stenting has taken place in palliation cases. Different studies have shown self-expanding metals stents (SEMS) to be more efficacious than plastic stents (PS) in the management of malignant biliary strictures [13,14]. Likewise, also in hilar complex malignant strictures SEMS have shown a longer patency, a lower rate of re-intervention and longer survival [15,16].
Of course plastic stents still have a role when diagnosis has not yet been confirmed, when there is a chance of subsequent surgery and when photodynamic therapy is in program.
In everyday clinical practice it is not infrequent that the endoscopic biliary drainage is carried out without having a clear etiologic diagnosis and an accurate staging of the lesion. For this reason, choosing a “definitive” option (uncovered metal stents are not removable) might compromise more appropriate solutions for the patient.
Covered metal stents are on the other hand not feasible due to the risk of occlusion of hepatic branches adjacent to the drained ones.
Finally, plastic stents could be substituted by metal stents in case of occlusion of the former, once the diagnosis and prognosis are known, confirming the indication thereof.
Our institution is a secondary referral center representative of Northern Italy scenario and serving a population of just above half a million people. In the last 6 years 53 cases of cholangiocarcinoma [29 hilar, 18 located at the proximal common bile duct-CBD – 6 located at the distal CBD] have been diagnosed over a period of time ranging from January 2007 to December 2012. This is a figure in keeping with the incidence reported in the United States, i.e. about 2 cases per 100000 people per year . Uncovered SEMS were initially positioned in 4 hilar cases and in 2 with a proximal CBD lesion; at this latter site, 3 further SEMS were subsequently inserted in substitution of obstructed plastic stents. None of the patients treated with SEMS underwent restenting. Histology and/or cytology confirmed diagnosis in 26 cases [49%], showing a doubtful finding in 7 further cases, whereas in the remaining it relied on imaging studies and clinical evidence. In a study by Domagk D et al. endoscopic transpapillary forceps biopsies had a similar diagnostic sensitivity and a specificity of 100% , while brush cytology alone has a much lower sensitivity . The peroral cholangioscopy is suggested to have a higher accuracy with regard to malignancy in patients with indeterminate biliary lesions . This might result advantageous in sparing further investigations and in shortening the diagnostic work-up. A recent prospective study, carried out by a group of Modena, Italy , shows that the SpyGlass system has a high accuracy for diagnosing or excluding malignancy in patients with indeterminate strictures or equivocal ERCP findings. They report sensitivity, specificity, positive predictive value and negative predictive value as 88, 94, 96 and 85% respectively. A similar conclusion is expressed by a Korean group  that conducted a small retrospective study. SpyGlass with SpyBite biopsies are still under evaluation in our center. The major concern about the system comes from the poor definition of the image. We need a technological improvement of the equipment before it can be considered a diagnostic standard.
There is growing evidence concerning improvement of quality of life [QoL] thanks to biliary drainage. Few studies have evaluated it in patients with malignant biliary obstruction, and variable methodology and scores were employed. Only recently a specific European Organization for Research and Treatment of Cancer [EORTC] questionnaire for biliary tumors has been implemented, QLQ-Bil 21 , and we await results on its applicability in everyday clinical experience.
Measurement of quality of life does not include only relief of itching and cosmetic effects on jaundice, but also the consequences of the disease on physical, relational and emotional well-being.
Whereas in distal malignant biliary strictures, the universal approach is to relieve jaundice no matter what associated symptoms are, with only few exceptions,[mainly the presence of a moribund patient], in hilar complex strictures the management is more articulated.
In particular, due to more difficult technical approaches and a higher rate of procedure-related complications, the anatomy of the lesion, a reasonable prognosis of the patient and the degree of both invalidating and ancillary symptoms must all be taken into consideration.
Nowadays various authors consider the use of metal stents to provide advantage in improving QoL [24,25] as well as survival [15,16]. A different, less optimistic view has been suggested by Robson et al.  who conducted a study on quality of life in patients treated with percutaneous drainage.
Negative aspects of endoscopic drainage include costs, complication rates, hospitalization for treatment of complications, further procedures for stent substitution due to clogging, migration, occlusion of an undrained hepatic segment. In fact, patients who undergo stent insertion might have a higher risk of cholangitis secondary to manipulation of the biliary tree and stent occlusion than for natural causes.
For these reasons we believe it is sound to be doubtful as regards stent positioning in elderly patients whose only symptom is painful jaundice or bed bound by irreversible disabilities. In these cases costs and/or complications may outweigh benefits
As far as Bismuth I strictures are concerned, there is unanimous consent as to the fact that a single stent is sufficient.
In more proximal strictures the most popular approach is to drain both hepatic lobes. Some Authors  have shown-in patients in whom a “complete drainage” had been reached through two plastic stents insertion – better survival, lower 30 days mortality, lower rate of cholangitis, lower rate of death due to sepsis.
Taking special precautions other Authors  have come to similarly encouraging results using a single stent: the operator should choose the obstructed duct easiest to cannulate, aiming at draining at least 25% of liver parenchyma ; administer antibiotic prophylaxis; inject a very low amount of contrast medium to avoid inappropriate filling of ducts not bound to be drained; once the access is gained, relieve pressure of the obstructed segment aspirating bile; shorten procedure times; perform aggressive treatment of the endoscopic failure through percutaneous approach.
In other words, should both lobes be reached by contrast, stents must be inserted bilaterally; if only one lobe is injected, unilateral drainage could be sufficient.
French Authors, estimating through Ct-scan volumetry of obstructed hepatic segments, have demonstrated that it is necessary to drain more than 50% of liver volume to obtain an efficacious palliation, particularly in Bismuth III strictures .
This implies almost invariably cannulation of two distinct liver territories and underlines the importance of pre-ERCP imaging [triphasic CT, cholangioRMN]. The latter allows tridimensional visualization of biliary tree, which offers to the operator information concerning which ducts to drain and which is wise to save injection to. These concepts are expressed in the recent European Society of Gastrointestinal Endoscopy guidelines to which we have spontaneously aligned over time .

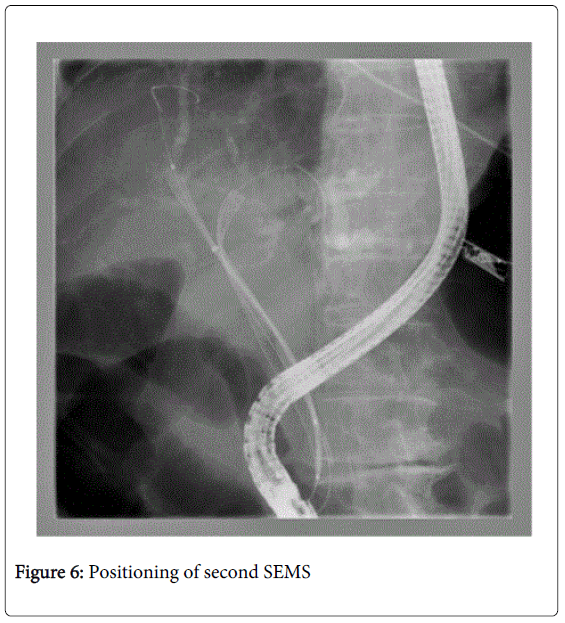

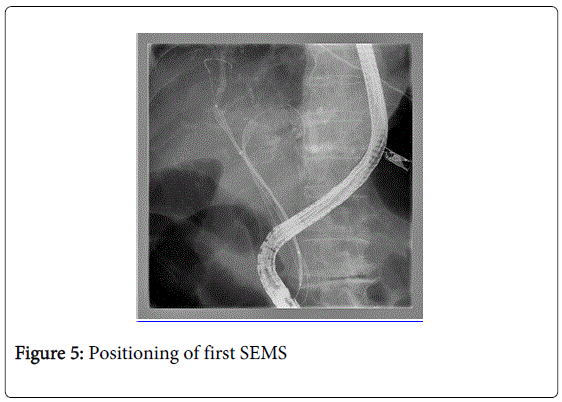

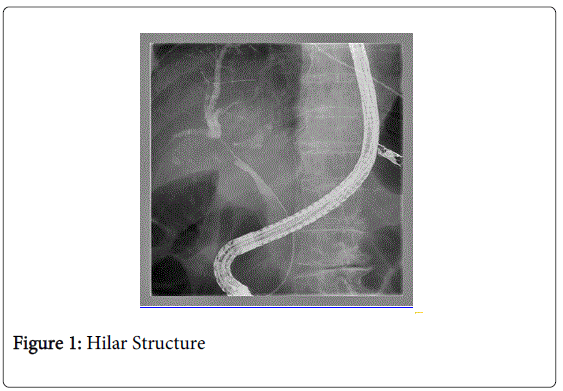

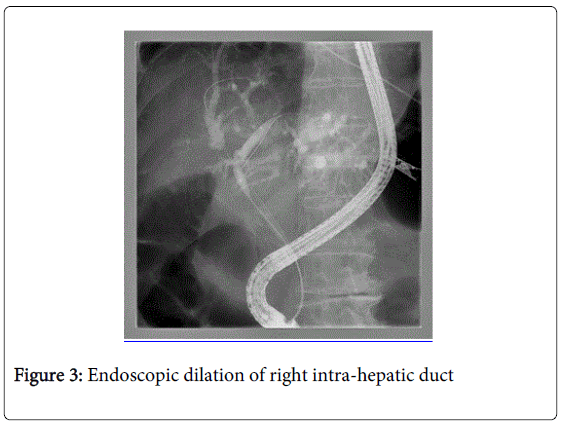

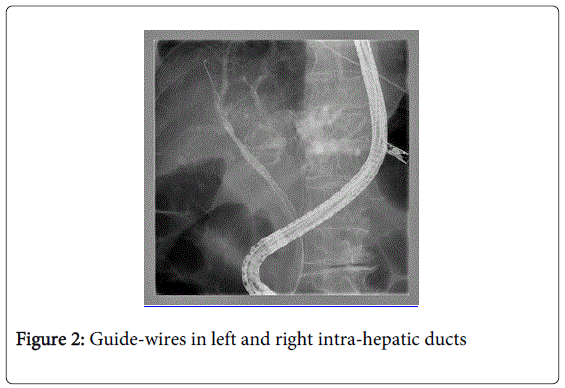

Endoscopic operating sequence (Figures 1-6): the methodology step-by-step is synthesized in our center through the acronimous “igwapri sphidiste”: imaging, guide-wire, aspiration, proximal injection [to the stricture], sphincterotomy, dilation, stenting.
Although EUS does not have a primary role in the treatment of CC, it may be considered in case of failure of the endoscopic drainage. In this context we need to mention the possibility to accomplish a EUS-guided rendez-vous procedure, as well as novel and partly experimental techniques of EUS-guided biliary drainage, which include: EUS-guided choledoco-duodenostomy and EUS-guided hepatico-gastrostomy.
EUS-guided rendez-vous – first described in 2004  – consists of a puncture of the obstructed biliary duct [after a failed ERCP-guided access], passing in anterograde fashion a guide-wire through the papilla to the duodenal lumen in order to make feasible a subsequent ERCP. The aim of this procedure is to avoid a percutaneous trans-hepatic biliary drainage [PTBD], both less safe and less appreciated by patients.
Although biliary tree dilation makes EUS approach easier, the possibility to get EUS-guided access even to a CBD with a less than 10 mm calibre has been described.
Global success rate of the procedure has been described in the range of 80%
EUS-guided biliary drainage  should be taken into consideration only in patients with proved biliary obstruction and after repeated failures of endoscopic drainage, with involvement of expert operators.
Choledoco-duodenostomy may be carried out in case of distal CBD obstruction , whereas – if the obstacle is proximal [hilar] – a EUS-guided intra-hepatic drainage is necessary [Hepatico-gastrostomy].
Post-surgical modifications of gastro-duodenal anatomy [gastrectomy with gastro-jejunostomy] make EUS-guided choledoco-duodenostomy impossible, because EUS visualization of choledocus typically occurs having the tip of the instrument in duodenal bulb or distal stomach.
Choledoco-duodenostomy has been first described in 2001 . More than 100 cases have been reported in the literature, and in expert hands success rate is higher than 90% .
The technique implies positioning of a plastic or fully covered metal stent, which creates a communication between the CBD and the duodenal lumen. Possible complications are generally of mild degree and include retro-or intra-peritoneal biliary leakage, stent clogging or migration and may be treated either conservatively or endoscopically; occasionally surgical intervention is required [frank peritonitis].
EUS-guided hepatico-gastrostomy has been described for the first time in 2003 [37,38]; more than 50 cases have been described in the literature, with – in expert hands-a success rate higher than 90% and a complication rate of approximately 20%.
Regarding this kind of biliary drainage, the choice of positioning SEMS is gaining more and more popularity , and this is mainly due to three reasons: better prevention of biliary drainage; longer patency; easier management of malfunctioning secondary to ingrowth or obstruction.
The risk of biliary peritonitis, which is related to shortening and subsequent dislocation of metal stent, must be taken in particular consideration, due to its severity.
In conclusion, these EUS-guided procedures, although relatively simple to describe in their logical sequence, are indeed invasive and complex and require expert operators and an accurate selection of patients.
Their role is still a second-line approach after ERCP failure and possibly before PTBD.
As stated above, CC has a dismal prognosis due to the fact that most cases come to our attention when the disease has already progressed to an inoperable stage. Furthermore, radiotherapy has shown disappointing results, and chemotherapy has also been demonstrated to be poorly effective only offering symptomatic palliation in occasional reports [40,41].
Biliary decompression-the main therapeutic goal in non-resectable cases – unfortunately affects prognosis only marginally, improving only slightly survival time [88-270 days in published series] .
Photodynamic therapy [PDT] is based on the injection of an intravenous porphyrin photosensitizer, followed by the endoscopic application of a particular wavelength light to the tumor tissue. The interaction between light and the photoagent-presumably by means of generation of oxygen free radicals – provokes cell death through a mechanism of apoptosis. Other effects of this interaction include an anti –angiogenetic effect and an immune-modulatory response, mainly due to a decrease of interleukin-6, a bile duct epithelium growth factor related to tumor mass.
After feasibility and promising phase II studies, the first randomized trial of PDT in the management of CC, utilizing Photofrin plus insertion of endoprosteses versus insertion of endoprostheses alone, had to be terminated because the survival advantage of additional PDT was highly significant [493 versus 98 days; p>0.0001], in addition to a relevant amelioration of jaundice and quality of everyday life .
These results have been confirmed in a subsequent European trial , in which a different photosensitizer was used [photosan].
A third randomized trial carried out in Korea  further confirms these figures (Table 4), whereas a study from Germany examines the problem from a different angle, suggesting that PDT plus stent insertion offers a similar survival to a R1/R2 surgical resection [approximately 12 months] .
|Study||Median Survival Time [days]||Mean Bilirubin Decrease [mg/dL]|
|Reference||Study Design||N [PDT/Stent]||PDT||Stent||Difference in means||CI 95%||p value||PDT||Stent||Difference in means||CI 95%||p value|
|Dumoulin ||Historical Control||44 [24/20]||297||168||129||2.29 - 255.71||0.05||-10.7||-5.8||-4.9||-8.73 - -1.07||0.01|
|Ortner ||RCT||39 [20/19]||493||98||395||172.07 - 617.93||0.00||-8.05||-0.95||7.1||-9.27 - -4.93||0.00|
|Zoepf ||RCT||32 [16/16]||630||210||420||296.94 - 543.06||0.01||-1.45||-1.2||0.25||-7.38 - +6.88||0.95|
|Witzigmann ||Controlled Cohort design||124 [68/56]||360||192||168||45.69 -290.31||0.01||-7.9||-4.3||-3.6||-6.83 - -0.37||0.03|
|Kahaleh ||Historical Control||48 [19/29]||486||222||264||11.41 - 516.59||0.04||-4.8||-6.5||1.7||+0.76 - +2.64||0.78|
|Quyn ||Controlled Cohort design||40 [23/17*]||425||169||256||59.81- 452.19||0.01||/||/||/||/||/|
|Cheon ||Historical Control||143 [72/71]||294||219||75||39.79 - 106.21||0.03||/||/||/||/||/|
Table 4: Controlled trials of PDT in the treatment of cholangiocarcinoma
Prasad et al.  have analyzed factors associated with increased survival after PDT: absence of a visible mass on imaging studies and a short time between diagnosis and PDT turned out to indicate a better response to treatment.
Further clinical aspects: A longer survival – although in a limited series of patients – has been observed extending the number of PDT sessions [beyond four ], associating in a few cases courses of chemotherapy . PDT has also been reported to have a favorable outcome as adjuvant and neo-adjuvant therapy for CC, although published series are indeed very limited and Bismuth subtypes variable . In the considered studies, palliative biliary stent placement was performed with either plastic or uncovered metal stents, which have shown a higher patency rate compared with the formers. However, uncovered metal stents have the potential disadvantage of damaging laser fibers used in PDT. Furthermore, stent removal is often necessary during PDT courses, and this is not possible with uncovered metal stents. For these reasons, plastic stent insertion is recommended in view of a possible PDT .
Tolerance: PDT seems to be a rather well-tolerated treatment, and side-effects are fewer than with chemo-or radio-therapy. Reports of cases of cholangitis have to be considered with caution, as they might be due to co-existing intra-hepatic strictures or insufficient endoscopic stenting after PDT.
PDT main adverse reaction-is photosensitivity: For this reason, treated patients should receive thorough explanations and advice. Their domestic situation, daily activities and support of relatives must be precisely assessed. Precautions and possible problems have to be discussed. A sun screen has to be provided, and emphasis should be put on the fact that the patient is highly photosensitive and sun creams alone are not able to protect them.
Trying to synthesize all the experiences available in the literature, we can conclude that PDT – if available as a reasonable opportunity – should be taken in serious consideration in patients with unresectable hilar CC with a life expectancy of at least 3 months, provided the option has been deeply discussed with the patient and an accurate informed consent has been taken, with particular care in dealing with precautions to be taken during treatment.
