Use of and Satisfaction with Ankle Foot Orthoses

Holtkamp FC1*, Wouters EJM1, van Hoof J1, van Zaalen Y1 and Verkerk MJ2,3
1Fontys University of Applied Sciences, Institute of Allied Health Professions, Dominee Theodor Fliednerstraat 2, 5631 BN Eindhoven, The Netherlands
2Eindhoven University of Technology, Department of Industrial Engineering & Innovation Sciences, PO Box 513, 5600 MB Eindhoven, The Netherlands
3Maastricht University, Department of Arts and Social Sciences, PO Box 616, 6200 MD Maastricht, The Netherlands
Corresponding Author : Fred Holtkamp
Fontys University of Applied Sciences
Dominee Theodor Fliednerstraat 2
5631 BN Eindhoven, The Netherlands
Tel: +31 651942732
Received April 14, 2015; Accepted May 28, 2015; Published May 30, 2015
Citation: Holtkamp FC, Wouters EJM, van Hoof J, van Zaalen Y, Verkerk MJ (2015) Use of and Satisfaction with Ankle Foot Orthoses. Clin Res Foot Ankle 3:167. doi:10.4172/2329-910X.1000167
Copyright: © 2015 Holtkamp FC, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
Related article at
DownloadPubmed DownloadScholar Google

Visit for more related articles at Clinical Research on Foot & Ankle


Objective: The aim of this study was to obtain insight in specific elements influencing the use, non-use, satisfaction, and dissatisfaction of ankle foot orthoses (AFOs) and the presence of underexposed problems with respect to AFOs.

Methods: A questionnaire was composed to obtain information from AFO users to investigate the variables associated with satisfaction and the relation between these variables. A specific feature of this study was the systematic analysis of the remarks made by the respondents about their AFO. Quantitative data analyses were used for analysing the satisfaction and qualitative analyses were used analysing the remarks of the respondents. A total of 211 users completed the questionnaire.

Results: Our survey showed that 1 out of 15 AFOs were not used at all. About three quarters of the AFO users were satisfied and about one quarter was dissatisfied. Females and users living alone reported relatively high levels of dissatisfaction, especially in the field of dimensions, comfort, weight, safety and effectiveness. Dissatisfaction with respect to off-the-shelf AFOs for the item durability was higher than that for custom-made AFOs. In the delivery and maintenance process the items ‘maintenance’, ‘professionalism’ and ‘delivery follow-up’ were judged to be unsatisfactory. A large number of comments were made by the respondents to improve the device or process, mainly by the satisfied AFO users. These comments show that even satisfied users experience many problems and that a lot of problems of AFO users are ‘underexposed’.

Conclusion: To improve user satisfaction, the user practice has to be identified as an important sub-process of the whole orthopaedic chain especially in the diagnosis and prescription, delivery tuning and maintenance, and evaluation phase.

Ankle foot orthosis; Assistive devices; Design; Evaluation; Integrated orthopaedic design model; Non-use; Use; User satisfaction.
In the pursuit of better products and more satisfied patients, the orthotic field is constantly evolving by improving existing and developing new devices such as ankle foot orthoses (AFOs). Despite many efforts by professionals in development and innovation in AFOs, three important problems can be defined in AFOs: non-use, dissatisfaction, and underexposed problems [1-6]. This study focuses on these three problems.
Studies on the use and non-use show large differences between various types of orthoses. Jannink [7] observed a percentage of non-use of orthopaedic shoes from 8 to 75% and de Boer et al. [8] a percentage of 48% of non-use of functional wrist orthoses for persons with rheumatoid arthritis. The non-use of assistive aids is mainly caused by neglecting the specific needs of users, the change in function after delivery, and the limitations caused by the prescribed aids [1]. The phenomenon of non-use is strongly influenced by the expectations of the patient and his/her environment. Personal characteristics such as age, sex, and living environment also play an important role [9-10]. It is remarkable that many patients choose not to use their device, despite the fact that non-use hinders daily activities and social participation [4,5-11].
It is generally acknowledged that satisfaction and dissatisfaction with orthopaedic devices have two components: the satisfaction and dissatisfaction with the product and the satisfaction and dissatisfaction with the process [12]. In order to be able to determine and manufacture a custom-made or, instead, choose an off-the-shelf AFO, the whole process from diagnosis and prescription, design, manufacturing, delivery and maintenance, to user experience, is of importance. In particular, the aspects where information of the patient should be retrieved or evaluated are important.
Satisfaction is positively influenced by product design, functioning and cosmesis [1]. Bosman et al. [13] observed that service provision and delivery by the orthotic service provider are also important satisfaction elements in the process. One would expect that patients who report a high satisfaction use their device without serious problems. However, Jannink et al. [14] reported a number of serious deficiencies in the performance of AFOs despite the fact that the overall satisfaction was 8.1 (scale 1-10). In other words, even a high satisfaction rate may cover up underexposed problems.
In the literature, there are two studies about the non-use of, the dissatisfaction with and underexposed problems concerning AFOs. Bulley et al. [15] from a qualitative study based on focus group interviews, reported reasons for dissatisfaction as: ‘uncomfortable, cumbersome, inflexible, difficulties in finding appropriate shoes with the AFO and remains in place even when not needed’ (p.229). The researcher stated that although technological developments advance on a daily basis, the satisfaction and use do not appear to improve at the same pace. Magnusson et al. [16] reported pain associated with use of the device and difficulties ambulating on challenging surfaces as an important reason for dissatisfaction in their study. The object of this study is to obtain insight into the specific elements that influence use and non-use, satisfaction and dissatisfaction of AFO users, and the presence of underexposed problems with respect to AFOs.
The quantitative part of the study was based on a questionnaire. The questionnaires were sent to 500 AFO users by five P&O service providers, who were geographically spread over the Netherlands. The selected service providers employed prosthetists and orthotists, who had received a university-level education and had experience or were familiar with scientific or applied research. AFO users were randomly selected from the database of the providers [17]. All participants younger than seven years of age, with an insufficient knowledge of the Dutch language, or using the AFO no longer than three months, were excluded. Both custom-made as well as off-the-shelf AFOs were included. No additional exclusion criteria were formulated.
Outcome measures
The outcome measures determined in this study were different variables of satisfaction with the product: use, safety, durability, and ease of use [18], comfort and effectiveness [19], and the process: delivery, maintenance, professionalism, follow-up after delivery, and services in general.
For this study we used a questionnaire composed out of four existing and validated questionnaires [13,20-22]:
The survey by Jannink is a questionnaire for usability evaluation of orthopaedic shoes [13]. It distinguishes four effectiveness items, one efficiency item and seven satisfaction items.
The D-quest is a survey for measuring satisfaction about the product and process. It consists of twelve items: user-friendliness, maintenance, effectiveness, durability, adjustment, comfort, delivery process, professional services, weight, safety and size [20,22].
The EuroQol 5 dimension descriptive self-completion system (EQ-5D) is a survey of mobility of amputees in Activities of Daily Living (ADL) [23,24]. It comprises five items: mobility, self-care, usual activities, pain/discomfort and anxiety/depression [23]. Respondents made an estimation of their health status by ticking the most appropriate statement in each of the five items. In this study, the mean health status was used as an outcome measure.
The mobility survey: a questionnaire for environmental and personal characteristics [25]. It consists of items related to the living environment and use of assistive aids, including use of stairs, bicycles, walking sticks, frames and walkers.
These four questionnaires were supplemented with 16 newlydeveloped questions in order to obtain additional information about the AFO device itself and the use of this device. Face validity of this part of the questionnaire was checked by applying a so-called member check, also known as a respondent validation. Member check was applied by comparing the results of the questionnaire to the open questions and remarks of the participants to check the internal validity [26].
The combination of these questionnaires resulted in an 88-item called Design in Orthopaedic Engineering Questionnaire for Usability Evaluation of Orthoses (DOE-quest) (Appendix 1). In summary (Table 1), the complete DOE-quest is divided into:
Questions 1-7 are general questions regarding gender, age, living situation, education;
Questions 8-17 are related to the AFO product and process (developed by the researcher);
Questions 18-37 are related to AFO use (derived from Jannink [7]);
Questions 38-45, 46-58, 59-66 are related to mobility (standing, walking, other activities (partly derived from Jannink [7] and partly developed by the researcher));
Questions 67-81: the D-Quest; [20];
Question 82 is related to the AFO product and process (developed by the researcher). Respondents were asked to name three items of which they think that improvements could be made on the AFO;
Questions 83-87: the EQ-5D [24];
Question 88: suggestions for comments on or improvement of the AFO, included as a blank comment field. This field was used to provide additional information with respect to the AFO (developed by the researcher).
The research was conducted within the boundaries set by the Helsinki declaration and approved by the Fontys Committee of Ethics in Research, Eindhoven, The Netherlands [27]. Participants were informed by means of an information letter and could withdraw from the study at any moment in time. All participants signed the informed consent document. If participants were younger than 18 years, informed consent was also given by their parents or guardians. Written permission was obtained from Euro Qol for use of the EQ-5D.
Data analysis
All statistical analyses were carried out in SPSS 21.0. Descriptive statistical analysis, such as frequencies and percentages, were applied. The answer possibilities ‘satisfied’ and ‘completely satisfied’ were combined in the analysis and defined as satisfied, and ‘completely dissatisfied’, ‘not satisfied’ and ‘average dissatisfaction’ was defined as dissatisfied. The total number of satisfied and dissatisfied respondents per item was used to calculate the percentages. The answers of the summary questions of the DOE-quest were not taken into account in calculating the average percentages.
A logistic regression analysis was performed. The relative contribution (association) of the categorical variables, sex, age, living arrangement, education, body mass index (BMI) and AFO type, on the outcome (whether satisfied or unsatisfied) was calculated for the D-Quest items.
Blank comment fields were used to retrieve information about the underlying cause of discontent. Respondents were offered the possibility to describe additional requirements and recommendations of interest for the design process of AFOs and to indicate why they were dissatisfied. For the qualitative analysis the comments were sorted into four groups of comments by: non-use and satisfaction (interpreted as: no problems experienced), non-use and dissatisfaction (major problems experienced), use and dissatisfaction (major problems experienced) and use and satisfaction (underexposed problems experienced) [28]. Denomination of the group ‘non-use and satisfaction’ may be confusing but used here in line with the followed structure. The four groups were analysed, labelled and classified into five main items in line with the topics of the questionnaire. These items were: health, product, user practice, functionality and process.
The item ‘health’ contains personal factors (pain, sense confinement, inflammation, skin damage, chafing and transpiration).
The item ‘product’ contains all elements related to dimensions, weight, size, finish, adjustability, materials, construction and durability. Environmental issues like acceptance, expectations, influence of the environment, looks, cosmesis, ambient conditions, damage, fitting, effectiveness, colour, ease of use, safety, comfort are covered in the item ‘user practice’.
The item ‘functionality’ is related to handling the AFO in daily practice and contains items such as lacing, freedom of movement, energy cost and hygiene.
The item ‘process’ covers the whole process of assessment and follow-up, evaluation, repairs, individual support, as well as involvement of the patient in the process, finance and professionalism of the staff.
The analyses were made by two independent researchers. Final classification of the comments was based on consensus. In case of disagreement a third researcher was involved. The grouped comments were counted and the frequency of each grouped comment was calculated.
First, the general respondent characteristics and the satisfaction with the product and process are described. Thereafter, the recommendations and comments given by the respondents are presented.
Respondents characteristics
In total 123 males (58%) and 87 females, with a mean age of 48.8 (SD=25.0) (normally distributed), completed the questionnaire (response rate of 44%). For one participant gender was not reported. Twenty per cent of the respondents were younger than 18 years. Eighty four per cent were living with others. Sixty nine percent of respondents indicated that they received education at basic level, 19% at a higher level (medium) and 4% at university level (high). The respondents’ mean (BMI) was 24.6 (SD=5.2), representative of a normal population [29]. The range of the EQ-5D scores (n=190) was .71 (SD=0.22) reflecting a representative group of the respondents population with respect to health problems [24]. Of the AFOs 84% were custom-made (Table 2). For six respondents the AFO type was unknown. Diagnoses leading to the AFO prescription were wide-ranging, and included cerebrovascular accident, cerebral palsy, multiple sclerosis, spinal disc herniation, osteophytes (bone spurs), et cetera.
Product and process dissatisfaction: The results of the DOEquest part showed a total mean score of satisfaction of 3.82, (range 1 completely dissatisfied – 5 completely satisfied), (SD=0.87) on the AFO as a whole and a 3.95 (SD=0.79) for service in general (Table 3A).
In general, dissatisfaction rates for AFO design and use (‘product’) and process of delivery and maintenance (processes) were 26% and 20% respectively (Table 3B).
Females, people under the age of 18 and people living alone scored 30%, 33% and 30% respectively on dissatisfaction regarding the AFO as a whole.
At the level of product dissatisfaction, statistical significant associations between sex and dimension, and sex and comfort were found. Females were very dissatisfied over dimensions (OR=0.41, p=0.008) and comfort (OR=0.44, p=0.014) (18% and 48% respectively). People living alone showed a statistical significant association for the items, safety (p=0.031) and effectiveness (p=0.046). On the other hand people not living alone were more dissatisfied over the weight of the AFO (p=0.025).
The item durability showed a statistical significant association in favour of the custom-made AFO (OR=4.1, p=0.018).
Dissatisfaction with the ‘delivery and maintenance process’ was mainly found for the items maintenance, professionalism and delivery follow-up.
People living alone showed a statistical significant association with maintenance (OR=0.40, p=0.020). Females, people living alone, and people with a higher BMI showed statistical significant associations (OR=0.28, p=0.005, OR=0.30, p=0.027, OR=0.31, p=0.025) for dissatisfaction with respect to professionalism. The delivery follow-up showed a significant association for dissatisfaction for people living alone (OR=3.45, p=0.012) and custom-made orthosis (OR=0.09, p=0.027). People with a BMI>25 were dissatisfied over service in general (OR=0.28, p=0.012).
For AFOs as a whole, the least dissatisfied group were males and users with a high level of education. The most dissatisfied group were users below 18 years of age, females, and people living alone.
The DOE-quest items that the respondents considered most important were ease of use (110 times) comfort (95 times), effectiveness (76 times), weight (67 times) and safety (57 times).

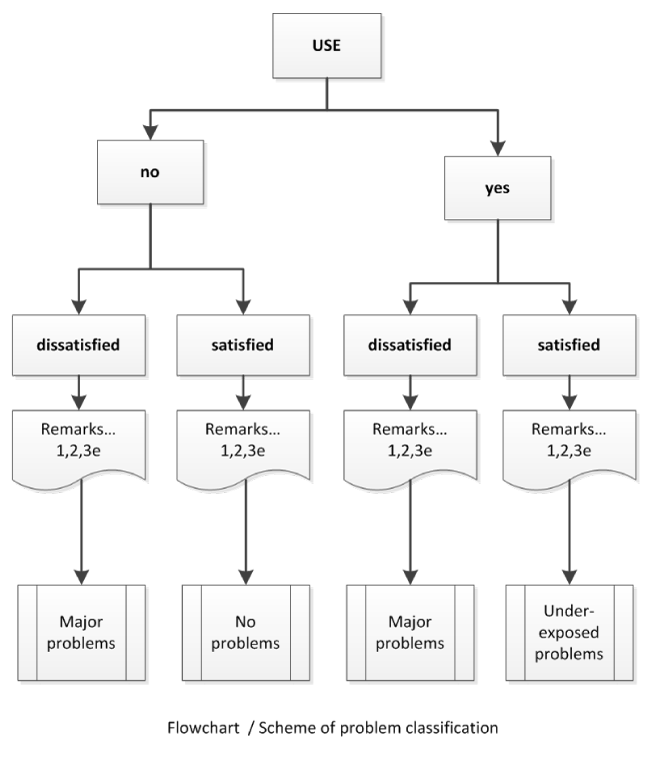

Remarks and recommendations of users and non-users: The starting point for the identification of the remarks was at the level of use (non-use) and (dis)satisfaction. In response to the questionnaire, a total of 185 remarks and recommendations were made by 92 respondents concerning the product and process satisfaction. Respondents were given the opportunity to add a maximum of three remarks or recommendations.
Four groups were identified: non-use and dissatisfied with remarks defined as ‘major problems’, non-use and satisfied with remarks defined as ‘no problems’, use and dissatisfied, remarks defined as major problems, and use and satisfied. In this last group the remarks were defined as ‘underexposed problems’ (Figure 1). The comments were coded into keywords and labelled as being within one of the five main groups; health, product, user practice, functionality and process (Table 4).
Examples of remarks made by the respondents were: ‘I never have been informed about the colour options of the AFO’, or ‘the AFO is damaging my clothes’, or ‘I wish that the material used was more permeable for moisture because I sweat a lot and it affects the skin of my foot’, ‘the AFO shouldn’t break down so fast’, or ‘the AFO doesn’t fit very well, I do need to use extra bandages’. Remarks such as ‘I was never informed about the colour options’, ‘There was no follow up’, ‘They didn’t really listen to my wishes’, were labelled as ‘involvement’ within the main group ‘process’. ‘Damaging clothes’ was labelled as ‘damage’ and is within user practice, as is ‘fitting’. Remarks with respect to ‘transpiration’ were classified within ‘health’. In this coding process each remark was individually analysed and labelled. The labelled remarks were then counted.
Non-use and dissatisfied: The group ‘non-use and dissatisfied’ consisted of 3% of the respondents and 5% of the comments. In total 10 remarks were made; 1 respondent reported 3 comments and 3 respondents 2 comments each. Comments made by the respondents were related to issues such as pain and chafing. One remark was made about AFO-induced inflammation. Critical comments were also made about comfort and dimensions.
Non-use and satisfied: The group ‘non-use and satisfied’ consisted of 4% of respondents and 3% of the comments. The comments made by respondents were mostly positive such as ‘The AFO has helped me well’ and ‘I do not need the orthosis anymore’.
Use and dissatisfied: The group ‘use and dissatisfaction’ consisted of 12% of respondents and 30% of the comments. About half of the respondents reported two and the other half of the respondents reported three comments. In the group ‘health’, pain and chafing were mentioned as reasons for dissatisfaction. Also, with respect to the AFO itself, 17 comments were made about items that should be improved such as size, weight, used materials, adjustability, finish, and durability. Twenty four comments referred to user practice with many comments about improvement of the comfort, ease of use and fitting. In the group ‘functionality’ recommendations were made about the handling of the AFO and the amount of required energy to use the AFO. Complaints about the follow-up, and not being involved in the design process, were classified part of the process item.
Use and satisfied: The group of satisfied users consisted out of 30% of the respondents. This group made the majority of all comments: 113 remarks, which is 62% of all remarks made. The item about which the greatest number of remarks were made was user practice; 52 in total. Most of the remarks referred to comfort and ease of use. These were the subject of many recommendations. Some respondents mentioned damaged clothing and furniture when using the AFO.
For effectiveness, the fitting and the way the AFO looks is mentioned often. The second largest group consisted of remarks about the product; 35 in total. Respondents made suggestions for improvements of the materials used (11 remarks), the dimensions (5 remarks), and the overall design (5 remarks), durability, adjustability, weight and finish of the AFO. In the group ‘health’ pain and chafing caused by the AFO was mentioned often (9 remarks). Safety, lacing, handling and effectiveness were issues raised for the functionality group with nine recommendations made. The subjects of items mentioned in the group process were comparable with those from the group use and dissatisfied.
Summary: main dissatisfaction categories: In all of the four distinguished groups (non-use and dissatisfied, non-use and satisfied, use and dissatisfied and use and satisfied) most observations made by the respondents were classified in the items ‘product’ and ‘user experience’ with 57 (30%) and 80 (43%) remarks respectively.
The data presented in this study cover a wide geographic area of the Netherlands. A great variety of foot and ankle problems were reasons for the prescription of an AFO to patients, either custom-made or offthe- shelf. Existing AFO satisfaction surveys mostly focussed on use and satisfaction with the AFOs. From this study, by focusing on the nonuse, dissatisfaction, and comments made by the users, new insights have come to the fore.
General satisfaction
In our study we found that a quarter of the respondents were dissatisfied about their AFO. Four out of nine elements in the ‘orthotic design and use’ (i.e., ‘product’) and three out of five elements in the ‘process delivery and maintenance’ (i.e., ‘process’) scored high percentages of dissatisfaction. Comfort was an aspect significantly differing in terms of percentage from overall satisfaction in an unfavourable manner. Our data are in agreement with data reported in literature. For example, previous studies of the Health Care Insurance Board in the Netherlands (CVZ) showed a mean overall rating of orthopaedic device user satisfaction of 80% [16]. The study of Malkin et al. [30] showed that 73% of their respondents considered their AFO ‘very’ or ‘fairly helpful’. Also in that study 27% of the respondents stated that the AFO was not helpful. More recently, Chen et al. [31] and Arfoui et al. [32] found comparable results with respect to overall satisfaction. This is in line with our result, which show approximately the same number of users to be not satisfied. It is recognised by the same studies that satisfaction is influenced by the product quality and the process of delivery, but these studies did not indicate exact causes of dissatisfaction.
A number of user characteristics relates to the dissatisfaction with the AFOs design and use, and process. The results found in this study are comparable with earlier studies [29-31] that include descriptions of user types. Women are apparently more critical about their bodies and issues that affect them such as cosmesis and appearance of the device. In addition, younger users, who have less self-reliance [33] and less experience with the shortcomings of the healthcare system, have higher expectations that cannot always be fulfilled, compared to older users [34]. People living alone depend in all aspects on the reliability and effectiveness of their AFO since one may assume that help is not directly available in case it is needed. These findings are supported by our results. The above items can be summarized under the term user practice. Apparently, thorough knowledge of this user practice is of great importance [35].
In our opinion, the percentages of dissatisfaction for all users are that high that efforts for improvement have to be focussed on at least these parts of the orthopaedic process, where information is obtained from the patient.
Remarks: Major problems and under-exposed problems
In this study we systematically investigated the remarks made by respondents. Remarks could be made after answering all 81 questions. One may assume that, after answering all questions, the remarks made reflect topics that greatly concern people. To our knowledge, no systematic study of the remarks made by respondents has been reported in the literature.
The four groups of respondents revealed a lot of information. The comments of the group ‘non-use and dissatisfaction’ clearly shows that parts from the whole process from diagnostics and prescription, design, manufacturing, delivery and maintenance, to user experience, in particular these parts where information of the patient should be obtained, failed. The comments of the group ‘non-use and satisfied’ shows an opposite picture: these users were satisfied because the therapy had ended or the AFO was no longer needed.
The group ‘use and dissatisfied’ reported serious problems. All remarks showed that important information and feedback from the patient during the whole process was not used to improve performance. The group ‘use and satisfied’, the majority of the respondents (75%), reveal the existence of many underexposed problems. One would expect that this group might vouch for a trouble-free use. However, our study shows that even the group of satisfied users still reports serious problems. This group made 113 remarks (62% of all remarks). Even the ‘fully’ satisfied users (13%) have serious comments that should be taken into account. Most of the comments were related to the product design and the environment in which the AFO had to be used. These remarks and recommendations show that ‘satisfaction’ distracts our attention from existing problems of users.
In this study we used four questionnaires and combined this with a number of additional questions regarding use and environment into one large complete questionnaire (DOE-quest). Our study, however, shows that the comments made by the users reveal new and important information, especially with regard to the product itself and the user practice. Therefore, it is of the utmost importance, not only in surveys, but also in daily practice, to give the patient he opportunity to make comments.
The remarks made by non-users (satisfied, dissatisfied) and users (satisfied, dissatisfied) showed that the main categories of dissatisfaction refer to the ‘user practice’ and ‘product’. Lower numbers of remarks belong to the categories ‘health’, ‘process’ and ‘functionality’.
From all these observations five conclusions can be drawn. First, in orthopaedic practice it appears that too little attention is paid to the experience of the user. It suggests that the experience of the user is not analysed systematically and that user practice is not seen as being integrated in the whole orthopaedic chain. Second, it shows that the prosthetist, orthotist, pays too little attention to the technical aspects of the product in relation to the experiences of the user. It seems that ‘hard’ aspects of the product (technical functionality) are considered more important than the ‘soft’ aspects of the product (user functionality). Third, the ‘self-proclaimed’ fully satisfied users provide important and valuable information revealed by the remarks they made, which can help to improve the product and process. Fourth, analysing the remarks made by the respondents systematically provides the orthotist a wealth of extra information which can be used to improve the product and the process. Finally, the research showed that the orthopaedic chain does not yet work in an optimal way. It should not be accepted by the professional that 6% of the respondents do not use the AFO because they are dissatisfied, and that one-fourth of the AFO users is dissatisfied overall. In addition, this study showed that satisfied users also report serious problems that can be associated with the user practise. This shows that a) the user experience has to be identified as an important part of the whole orthopaedic chain, b) the feedback loops in the whole chain have to be closed, and c) the quality standards in this field have to be defined much more from the perspective of the user and the standard of the performance has to be raised from ‘good’ to ‘excellent’. In summary, when the whole sector succeeds in integrating user experiences in the whole chain the performance of this chain for all groups of users will be improved considerably.
To increase the level of satisfaction with respect to the outcome of the analysis and additional comments made by the surveyed AFO users it is recommended to pay more attention to product and delivery process in general and more specific to the user practice. Patient assessment, evaluation and the frequency of this evaluation, also after delivery, can provide valuable information. Listening to the needs, concerns and experiences of the patients after delivery of orthopaedic devices by incorporation of the DOE-quest at several prosthetic and orthotic service providers, may help to increase the level of satisfaction. Thus, with the aid of future research, a large database should be filled out which can be used to retrospectively identify factors related to the product and user experience
Apart from creating a database, it is also worthwhile to define an integrated orthopaedic design model in which underlying mechanisms used in the design process are defined. Future studies that combine user practice with the AFOs biomechanical effect in relation to user satisfaction so as to verify if, and how many, of the AFOs are not fitted optimally (from a biomechanical perspective), can make user practice and satisfaction more explicit.
For this reason, future challenges for prosthetists, orthotists, lie in optimizing and recalibrating the whole orthopaedic device process. This process, visualised in Figure 2, consists out of a number of sub processes (SP): SP1 concerns diagnosis & prescription. Diagnosis and prescription are actually regarded as two separate parts, but in daily practice they are intertwined. SP2 relates to the design, SP3 is about the manufacturing, SP4 concerns the supply, tuning and maintenance, and finally, SP5 refers to evaluation and the user experience of the AFO. The various sub processes are important because in every part of the process specific information is available and needed but not always noticed.
In the diagnosis and prescription phase important information about the user is acquired. This is especially the phase when the user will share his information about user practice and daily use. In the evaluation phase this information should be checked.
The challenge lies in understanding this whole chain. An adequate design model should be developed which involves therapists, physicians, prosthetists, orthotists and users in the design and evaluation process.
This study also has some limitations. Participants were selected from five service providers. It is possible that participants from other service providers might yield different results. While the sample is diverse in terms of age and heterogenic in diagnosis and the sample size is sufficient to estimate item difficulties, it is not large enough to discern differences in sub-groups of specific AFOs. In this study with respect to dissatisfaction, no distinction has been made between the different types of AFOs.
Although parts of the questionnaire were validated, the questionnaire as a whole has not been validated. However the questionnaire was checked for face validity by applying a member check. The questionnaire used in this study consists partly out of newly developed questions. Additional work must be conducted to demonstrate the validity of the DOE-quest. In future studies with respect to satisfaction and user practice also the perspective of the prosthetist and orthotist should be subject of research.
In general, it seems that the use of AFOs and the overall satisfaction is high. However, from the perspective of the individual user the data are far less favourable: 1 out of 15 AFOs is not used at all and about 25% of the AFO users are dissatisfied.
Even the satisfied users made a large number of important comments that suggest an underexposed dissatisfaction. We recommend to improve user satisfaction, the user practice has to be identified as an important sub-process in the orthopaedic chain especially in the diagnoses and prescription, delivering - tuning- maintenance, and evaluation phase.
Additional contributions: The authors thank the orthopaedic companies and the consumers of Eemland Orthopedie, Heckert Orthopedie, Orthopedie Techniek de Hoogstraat, Noppe Orthopedie, Westland Orthopedie for their active participation in this study. Ms. A. Aprea (photographer), Ms. C. Kars and Mr. M. van der Pluijm are acknowledged for making the photographs for Figure 2.
Financial disclosures: The authors have declared that no competing interests exist.
Funding/Support:This work was based on funding by Fontys University of Applied Sciences, Eindhoven, The Netherlands.
Institutional review: This study was approved by the Fontys Committee of Ethics in Research, Eindhoven, The Netherlands. All participants gave written informed consent.
Participant follow-up: The authors have no plans to notify the study participants of the publication of this article because of a lack of contact information.


  1. value="1" id="Reference_Titile_Link">Wessels R, Dijcks B, Soede M, Gelderblom GJ, de Witte L (2003) Non-use of provided assistive technology devices: a literature overview. DisabilRehabil Assist Technol 15: 231-238.

  2. value="2" id="Reference_Titile_Link">Fisher LR, Mclellan DL (1989) Questionnaire assessment of patient satisfaction with lower limb orthoses from a district hospital. Prosthetics and Orthotics International 13:29-35.

  3. value="3" id="Reference_Titile_Link">Van Netten JJ, Jannink MJA, Hijmans JM, Geertzen JHB, Postema K (2010) Long-term use of custom-made orthopedic shoes: 1.5-year follow-up study. J Rehabil Res Dev 47:643-52.

  4. value="4" id="Reference_Titile_Link">Phillips B, Zhao H (1993) Predictors of assistive technology abandonment. Assist Technol 5: 36-45.

  5. value="5" id="Reference_Titile_Link">Scherer M. Living in the state of stuck (2005). Brookline Publishers, Brookline, MA, USA.

  6. value="6" id="Reference_Titile_Link">Burris JE, Johnson TP, O’Rourke DP (2003) Validating self-reports of socially desirable behaviours. American association for public opinion research-section on survey research methods 32-36.

  7. value="7" id="Reference_Titile_Link">van Netten JJ, Jannink MJ, Hijmans JM, Geertzen JH, Postema K (2004) Use and Usability of custom-made orthopaedic shoes. J Rehabil Res Dev 47: 73-81.

  8. value="8" id="Reference_Titile_Link">de Boer IG, Peeters AJ, Ronday HK, Mertens BJA, Breedveld FC, VlietVlieland TPM (2008) The usage of functional wrist orthoses in patients with rheumatoid arthritis. DisabilRehabil  30: 286-295.

  9. value="9" id="Reference_Titile_Link">Scherer M (1996) Outcomes of assistive technology use on quality of life. DisabilRehabil 18: 439-448.

  10. value="10" id="Reference_Titile_Link">Alker AE (2007) Multiple chronic diseases and quality of life: Patterns emerging from a large national sample. Chronic Illn 3:202-218.

  11. value="11" id="Reference_Titile_Link">Groner G (2014) AFO tuning: Balancing function and satisfaction. Lower extremity review.

  12. value="12" id="Reference_Titile_Link">Halsne EG, Peaco AD, Hafner BJ (2011) Satisfaction outcome measures in orthotics: A systematic literature review. American Academy of Orthotists&Prosthetists 37th Academy Annual Meeting and Scientific Symposium, Orlando, FL. p 44.

  13. value="13" id="Reference_Titile_Link">Bosmans J, Geertzen J, Dijkstra PU (2009) Consumer satisfaction with the services of prosthetics and orthotics facilities. ProsthetOrthotInt 33: 69-77.

  14. value="14" id="Reference_Titile_Link">Jannink MJA, Vries J, Stewart R, Groothoff, W. Lankhorst G (2004) Questionnaire for usability evaluation of orthopaedic shoes: Construction and reliability in patients with degenerative disorders of the foot. J Rehabil Med 36: 242-248.

  15. value="15" id="Reference_Titile_Link">Bulley C, Shiels J, Wilkie K, Salisbury L (2001) User experiences, preferences and choices relating to functional electrical stimulation and ankle foot orthoses for foot-drop after stroke. Physiotherapy 97: 226-233.

  16. value="16" id="Reference_Titile_Link">Magnusson L, Ahlström G, Ramstrand N, Fransson E I (2013) Malawian prosthetic and orthotic users' mobility and satisfaction with their lower limb assistive device. Journal of Rehabilitation Medicine 45: 385.

  17. value="17" id="Reference_Titile_Link">Cushman LA, Scherer MJ (1996) Measuring the relationship of assistive technology use, functional status over time, and consumer-therapist perceptions of assistive technology. Assist Techol 8:103-109.

  18. value="18" id="Reference_Titile_Link">Venkatesh V (2000) Determinants of perceived ease of use: Integrating control, intrinsic motivation, and emotion into the technology acceptance model. Information Systems Research 11: 342-365.

  19. value="19" id="Reference_Titile_Link">Metcalf J (1998) DK illustrated Oxford dictionary: Ed. Metcalf J. Alderton, D. Oxford: Dorling Kindersley.

  20. value="20" id="Reference_Titile_Link">Demers L, Weiss-Lambrou R, Ska B (1996) Development of the Quebec User Evaluation of Satisfaction with Assistive Technology (QUEST). Assist Technol 8: 3-13.

  21. value="21" id="Reference_Titile_Link">Wessels RD, de Witte LP, Weiss-Lambrou R, Demers L, Wijlhuizen GA (1998) Dutch version of quest (Dquest) applied as a routine follow-up within the service delivery process, in:  Improving the Quality of life for the European Citizen, technology for inclusive design en equality. Ed. Placencia PI, Ballabio E. IOS Press, Amsterdam, the Netherlands.

  22. value="22" id="Reference_Titile_Link">Lamers LM, Stalmeier P, McDonnell J, Krabbe P, Busschbach J (2005) Kwaliteit van levenmeten in economischeevaluaties: Het Nederlands EQ-5D-tarief. NederlandsTijdschrijftvoorGeneeskunde 149:1574-1582.

  23. value="23" id="Reference_Titile_Link">Schrag A, Selai C, Jahanshahi M, Quinn N (2000) The eq-5d-a generic quality of life measure-is a useful instrument to measure quality of life in patients with parkinson's disease. J NeurolNeurosurg Psychiatry 69: 67-73.

  24. value="24" id="Reference_Titile_Link">Devlin NJ, Krabbe PFM (2013) The development of new research methods for the valuation of eq-5d-5l. Eur J Health Econ 14: 1-3.

  25. value="25" id="Reference_Titile_Link">Klerk M (1997). Het gebruik van ADL-hulpmiddelen door ouderen; eenonderzoeknaardeterminanten en subsidiemogelijkheden. Dissertation. Erasmus University, Rotterdam, The Netherlands, 160 pages.

  26. value="26" id="Reference_Titile_Link">Creswell JW (2014) Research Design: Qualitative and quantitative and mixed methods approaches CA; USA: Sage p.158.

  27. value="27" id="Reference_Titile_Link">World Medical Association Declaration of Helsinki. Ethical principles for medical research involving human subjects (1964) Adopted by the 18th WMA General Assembly, Helsinki, Finland and last amended by the:  59th WMA General Assembly. Seoul, South Korea: World Medical Association. 2008.

  28. value="28" id="Reference_Titile_Link">Braun V, Clarke V (2006) Using thematic analysis in psychology. Qualitative Research in Psychology 3: 77-101.

  29. value="29" id="Reference_Titile_Link">Ogden CL, Fryar CD, Carroll MD, Flegal KM (2004) Mean body weight, height, and body mass index, United States 1960-2002. Adv Data (347): 1-17.

  30. value="30" id="Reference_Titile_Link">Malkin K, Dawson J, Harris, R, Parfett G, Horwood P, Morris C, Lavis G (2008) A year of foot and ankle orthotic provision for adults: Prospective consultations data, with patient satisfaction survey. Foot (Edinb) 18: 75-83.

  31. value="31" id="Reference_Titile_Link">Chen CL, Teng, YL, Lou SZ, Lin CH, Chen FF, Yeung KT (2014). User satisfaction with orthotic devices and service in Taiwan. PLoS One 9: e110661.

  32. value="32" id="Reference_Titile_Link">Arfaoui FZ, Karkouri S, Bennis N, Eloumri A, &Hajjaj-Hassouni N (2011) Patient satisfaction survey on knee-ankle-foot orthoses carried out during an apparatus workshop at the El-Ayachi hospital. Annals of Physical and Rehabilitation Medicine 54: e10.

  33. value="33" id="Reference_Titile_Link">Watwerktbijwie? Eendoelgroepbenaderingbijinnovaties in zorg en preventie. Ministerie van Volksgezondheid (2011)  Utrecht, the Netherlands

  34. value="34" id="Reference_Titile_Link">DeVoe JE, Wallace LS, Fryer GE (2009) Patient Age Influences Perceptions about Health Care Communication. Fam med 41: 126-133.

  35. value="35" id="Reference_Titile_Link">Bjørkquist C, Ramsdal H, Ramsdal K, Kalantaridis C, Kalantaridis C (2015) User participation and stakeholder involvement in health care innovation–does it matter? European Journal of Innovation Management 18: 2-18.
