Taphonomy of Aptian-Albian Beds in the Gebel Mistan, Maghara Area, Northern Sinai, Egypt

The Lower Cretaceous successions, which have outcrops along the northern flanks of the Gebel Maghara Dome, exhibit a rich and diversified assemblage of macrofossils [1]. The Lower Cretaceous marine sequences are best exposed in the Maghara area [1,2]. Although the Lower Cretaceous fauna of the northern Sinai is of high quality [3], the taphonomic attributes of these fossils have received little attention [1,4].

Taphonomic studies that have previously been conducted in Egypt include those of [1,4-10]. No taphonomic studies have been carried out on the Lower Cretaceous macrofauna, except by [1], who studied three different phenomena (inquilinism, predation and taphonomy) in certain cephalopod shells collected from the Aptian-Albian sections of Gebel Lagma and Gebel Manzour in the Maghara region.

The goal of this paper is to study the taphonomic conditions of sclerobionts in the four Lower Cretaceous beds from Gebel Mistan to understand and interpret the paleobiology and paleoenvironment of these beds.

Stratigraphic setting

The northern Sinai is characterized by the presence of excellent outcrops. These outcrops have allowed for the implementation of significant research, especially concerning stratigraphy and sedimentary structure. The exposed Lower Cretaceous rocks of the northern Sinai around Gebel Maghara have received considerable attention from the geologists, beginning with [11] and continuing with [12-38].

In Gebel Mistan, the Lower Cretaceous succession is subdivided into two lithostratigraphic units, namely, the Risan Aneiza and the Halal formations, as further described below from base to top (Figure 1).

Figure 1: A Location map of the studied area; B Stratigraphic columanr section of Lower Creataceous of Gebel Mistan.

Risan Aneiza Formation: Underlies the Halal Formation. This formation’s base is unexposed, and it consists mainly of green shale, limestone and marl with sandstone interbeds with a thickness of 160 m.

Halal Formation: Consists predominantly of white and grey dolostones that are commonly intercalated with thin marl and have limestone interbeds. This formation conformably overlies the Risan Aneiza Formation. The Halal Formation has a thickness of 140 m.

The Aptian-Albian sediments in Gebel Mistan are highly fossiliferous, being composed of invertebrate macrofossils, predominantly bivalves and gastropods. Most of the fauna was wellpreserved especially what has been collected from the marl beds and has been included in the present research. The author selected four beds (two from the Upper Aptian and two from the Middle Albian) for an extensive taphonomic analysis. In the field, for each bed, the lithology, thickness, faunal content, state of preservation, packing density, orientation patterns, fragmentation state, bioerosion level and encrustation status were described. The material studied is housed at the Geology Department, Suez Canal University, Ismailia, Egypt.

The Upper Aptian Nerinea bed

The bed ranges in thickness from 0.5 to 1.5 m and consists of a hard, yellowish brown limestone. The faunal content of this bed is composed mainly of complete, well-preserved, small, lensoid shaped, densely packed, randomly oriented, non-bioeroded, non-encrusted shells of Nerinea mistanensis Awad 1952 and Nerinea maghrensis Abbass 1963 in addition to the shells of other gastropods, such as Tylostoma (Tylostoma) magharensis Abbass 1963, Pyrazus (Echinobethra) magharensis Abbass 1963, Pyrazus (Echinobethra) sexangulatus Zék. Permut1852, Pseudomesalia quadrilineata Mahmoud 1956 and Turritella (Torquesia) moradi Abbass 1963. The associated bivalves are Ceratostreon flabellatum (Goldfuss 1833), Nucula (Nucula) margitifera Douvillé 1961 and Maghrebella deserti (Douvillé 1961). In general, the associated gastropod and bivalve fauna is poorly sorted, moderately fragmented, loosely packed and articulated, and certain gastropods show traces of bioerosion, while smaller bivalves show evidence of encrustation. Most of the associated gastropods and bivalves are detected as internal molds (Plate 1A).

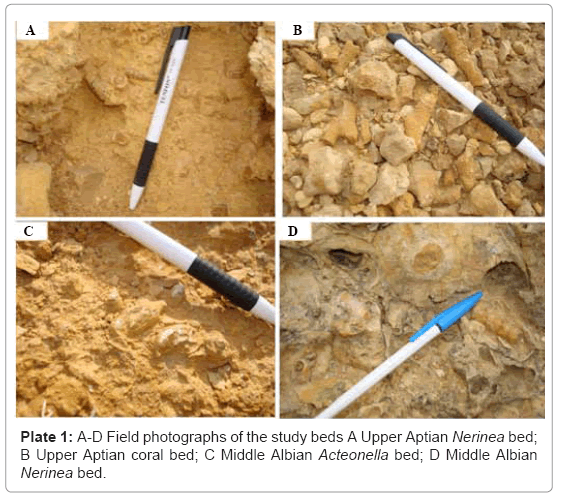

Plate 1: A-D Field photographs of the study beds A Upper Aptian Nerinea bed; B Upper Aptian coral bed; C Middle Albian Acteonella bed; D Middle Albian Nerinea bed.

The lower (5 cm) portion of this bed consists of clusters of Chondrodonta sp. Their shells are randomly oriented and are large, highly fragmented and disarticulated, exhibiting no evidence of either bioerosion or encrustation.

The Upper Aptian coral bed

This bed is consists of a yellowish brown sandy limestone and measures 50 cm in thickness. The bed overlies the Nerinea bed and is composed principally of the corals Epistreptophyllum manzourensis Gameil and Aly 2004, Epistreptophyllum sp., Trochosmilia cretacea Gameil and Aly 2000, Mixastraea sp., Paracycloseris sp. and Montlivaltia sp. The coral fragments are loosely packed, relatively highly fragmented, randomly oriented and well-preserved (Plate 1B).

Most of the associated macrofauna collected are internal molds and are articulated, moderately fragmented, patterned in a random orientation, moderately preserved and poorly sorted. The echinoids and certain of the gastropods show traces of bioerosion, while a portion of the oyster shells are encrusted with small organisms.

The Middle Albian Acteonella bed

This bed consists primarily of a yellowish brown, dolomitic sandy limestone with a thickness of 1 m. The bed represents a monotaxic accumulation of the Acteonella delgadoi Choffat 1901 (Plate 1C). The Acteonella shells are small-to medium-sized, densely packed, moderately sorted, randomly oriented and relatively fragmented and exhibit no evidence of bioerosion or encrustation.

The Middle Albian Nerinea bed

The lithology of this bed is a white, hard dolomitic limestone approximately 75 cm in thickness. The bed is a monotaxic collection of the Nerinea abbassi Abbass 1963 shadwished between two rudist beds. The Nerinea shells are unimodal, perpendicular to the bed in the section form, densely packed, relatively fragmented, well-sorted and well-preserved and they are neither bioeroded nor encrusted (Plate 1D).

Interpretation

According to the field and taphonomic observations of the fossils (Table 1) contained in the four beds studied, their historical accumulation can be interpreted as follows:

Table 1: The main field and taphonomic properties of the study beds.

The Upper Aptian Nerinea bed

The high quality and complete preservation of the Nerinea shells, their dense packing, random orientation and absence of bioerosion and encrustation might have been due to a short post-mortem period, a rapid burial rate after their death, lack of transportation, a relatively low sedimentation rate and-preservation in situ.

With respect to the associated fauna, their taphonomic signatures suggest that their preservation time and location were not the same as those of Nerinea shells. Perhaps the associated fauna were deposited after the Nerinea shells, or they were transported from another place, although not from too great a distance. The shells indicate a long postmortem period.

The random orientation, high fragmentation, high disarticulation and absence of bioerosion and encrustation of the narrower chondrodonta bed (5 cm) indicate a repetitive reworking in situ, a short residence time on the sea floor, rapid burial and a rapid rate of sedimentation.

The Upper Aptian coral bed

The taphonomic features of the coral fragments, such as high fragmentation, loose packing, good preservation and evidence of bioerosion and encrustation on certain of the coral skeletons? associated macrofauna might have resulted from a slow burial rate, a relatively long post-mortem period and transport over only short distances.

The Middle Albian Acteonella bed

The dense packing of the Acteonella shells, their moderate sorting, random orientation, low fragmentation and the absence of bioerosion and encrustation are strong evidence of the preservation of the shells in situ, a short post-mortem period, a rapid burial rate and their having been reworked more than once in situ with no evidence of transport.

The Middle Albian Nerinea bed

The manner of accumulation of the Nerinea shells with evidence of dense packing, low fragmentation and good preservation might indicate a relatively short distance of transportation by strong currents, a slow rate of sedimentation and a slow burial rate after death. Additionally, the absence of bioerosion and encrustation are strong evidence of a short post-mortem period.

Inferred depositional environment of the study area

Many paleontologists are interested in studying the depositional environment of the Lower Cretaceous in the northern Sinai in Egypt. The best-known studies are those of [33,39-43].

For the current study, the depositional environment of the Lower Cretaceous rocks has been examined for the first time in Egypt, and this environment has been illuminated by the study of the taphonomic characteristics of the fossils. Through the examination and evaluation of the four beds representing the Upper Aptian to Middle Albian in Gebel Mistan, it was determined that the Upper Aptian Nerinea and coral beds were deposited under relatively high sedimentation rates at a water depth of no more than 15 m in a notably warm climate (marked by the presence of corals and diversity of macrofauna) lacking large predators (scarcity or absence of bioerosion and traces of predation) during organisms´ lives.

As for the Middle Albian Acteonella and Nerinea beds, their depositional environment appears to have featured a low sedimentation rate in water depth deeper than that found in the depositional environment of the Upper Aptian beds (presence of dolomitic limestone) with slightly warm and slightly turbulent water (lack of diverse macrofauna) that also lacked large predators (absence of bioerosion and predation traces) during organisms´ lives.
