Dersleri yüzünden oldukça stresli bir ruh haline sikiş hikayeleri bürünüp özel matematik dersinden önce rahatlayabilmek için amatör pornolar kendisini yatak odasına kapatan genç adam telefonundan porno resimleri açtığı porno filmini keyifle seyir ederek yatağını mobil porno okşar ruh dinlendirici olduğunu iddia ettikleri özel sex resim bir masaj salonunda çalışan genç masör hem sağlık hem de huzur sikiş için gelip masaj yaptıracak olan kadını gördüğünde porn nutku tutulur tüm gün boyu seksi lezbiyenleri sikiş dikizleyerek onları en savunmasız anlarında fotoğraflayan azılı erkek lavaboya geçerek fotoğraflara bakıp koca yarağını keyifle okşamaya başlar


Catalytic Degradation of Organic Dyes using Synthesized Silver Nanoparticles: A Green Approach | OMICS International
ISSN: 2155-6199
Journal of Bioremediation & Biodegradation

Like us on:

Make the best use of Scientific Research and information from our 700+ peer reviewed, Open Access Journals that operates with the help of 50,000+ Editorial Board Members and esteemed reviewers and 1000+ Scientific associations in Medical, Clinical, Pharmaceutical, Engineering, Technology and Management Fields.
Meet Inspiring Speakers and Experts at our 3000+ Global Conferenceseries Events with over 600+ Conferences, 1200+ Symposiums and 1200+ Workshops on Medical, Pharma, Engineering, Science, Technology and Business

Catalytic Degradation of Organic Dyes using Synthesized Silver Nanoparticles: A Green Approach

Bhakya S1, Muthukrishnan S2*, Sukumaran M1, Muthukumar M2, Senthil Kumar T3 and Rao MV2
1Research Department of zoology, Rajah Serfoji Govt. College (Autonomous), Thanjavur- 613 005, Tamil Nadu, India
2Department of Plant Science, Bharathidasan University, Tiruchirappalli-620 024, Tamil Nadu, India
3Department of Industry University Collaboration, Bharathidasan University, Tiruchirappalli 620 024, Tamil Nadu, India
Corresponding Author : Muthukrishnan S
Department of Plant Science, Bharathidasan University
Tiruchirappalli-620 024, Tamil Nadu, India
Tel: +91 0431-240-7072
Received May 16, 2015; Accepted August 25, 2015; Published August 27, 2015
Citation: Bhakya S, Muthukrishnan S, Sukumaran M, Muthukumar M, Senthil Kumar T, et al. (2015) Catalytic Degradation of Organic Dyes using Synthesized Silver Nanoparticles: A Green Approach. J Bioremed Biodeg 6:312. doi:10.4172/2155-6199.1000312
Copyright: © 2015 Erguven Go, et al. This is an open-a ccess article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
Related article at Pubmed, Scholar Google

Visit for more related articles at Journal of Bioremediation & Biodegradation


The scientific community is search in for new methods for the synthesis of metallic nanoparticles. Green synthesis has now become a vast developing area of new research groups. Here we report a green method to the synthesis of silver nanoparticles (AgNPs) using the different parts of Vishanika or Indian screw tree, an ayurvedic medicinal tree. This is nontoxic, eco-friendly and low cost method. The reduction and stabilization capability of the plant extracts of different parts are described. The size and structure of the silver can be characterized by varying the plant parts of the vishanika. The biosynthesized nanoparticles are characterized by using UV–VIS spectroscopy, TEM, XRD, DLS and FTIR. The size and extract dependent catalytic activity of the biosynthesized nanoparticles is established in the degradation of organic dyes.

Green synthesis; Helicteres isora; Organic dyes; Silver nanoparticles; Degradation; Size dependent
Organic dyes is one of the major groups of pollutants widely used in textile, plastic, medicine and many other industries, while the hazardous effects of organic dyes in waste water have been a major concern and now a major threat in the environment due to the substantial pollution problems caused by them. These industries exhausted large quantity of high content color effluents, which are generally more toxic and resistant to destruction by conventional methods. A necessary criterion in the use of these dyes is that they must be highly accumulated in water and stable in light during washing. The accumulation of these dyes in the water bodies causes eutrophication, reduces the reoxygenation capacity and makes severe damage to the aquatic organisms by hindering the infiltration of sunlight [1]. They must also be resistant to microbial attack. Therefore, they are not readily degradable and are typically not removed from water by wastewater treatment systems and conventional methods like adsorption, ultrafiltration, chemical and electrochemical methods [2]. The superiority of photocatalytic degradation by nanoparticles in wastewater treatment is due to its advantages over the conventional methods, such as quick oxidation, no formation of polycyclic products and oxidation of pollutants. It is an effective and rapid technique in the removal of pollutants from wastewater [3]. In the recent years, numerous metal oxides including TiO2 [4], ZnO [5], and other oxides have attracted growing attentions for photodegradation of organic dyes; TiO2 is of particular interests due to its low cost and high stability. Nonetheless, TiO2 has a relatively large energy band-gap and only absorbs UV region, while the UV lights only contribute to less than 10% of total solar radiations; the visible lights, on the other hand, contribute to 50% of the solar radiations. It’s a crucial drawback in photo-catalysts of TiO2 based application [6]. So, in the recent years have been many research efforts devoted to improve the photocatalytic activity by incorporating of metal particles (silver, gold and iron) [7-9], to broaden the absorption of solar radiations by doping with nitrogen and to reactivate the TiO2-based photo-catalysts by treating with heat [10,11]. An alternative type of catalysts for photodegradation of organic dyes is nanoparticles of some transition metals such as silver. The size, shape, large surface area to volume ratio and mass dependent reactivity has made metal nanoparticles high photocatalytic activities [12]. Nowadays biosynthesis nanocatalysts are widely used for the effective removal of dye contaminants.
Among the many possible natural products, biologically active plant products represent excellent platforms for this purpose [6-8,13]. The compounds present in plants that have different potential biological activities; phytochemicals are important natural resource for the synthesis of metal nanoparticles. They play important roles in both stabilization and reduction of nanoparticles. The focus of the present work is to apply the accurate principles of green chemistry for the synthesis of silver nanoparticles by using stem bark, root and leaf of Helicteres isora extracts as stand-alone reducing and capping agent. H. isora plant extracts possess anticancer properties [14]. Usually, the bark and root juice were used against diabetes and emphysema. In traditional medicine, the bark and root juice is claimed to be useful in snake bite, diabetes, blood disorder, cough, colic, diarrhoea, astringent, etc., [15], expectorant and astringent [16], hypolipidemic [17], antihyperglycemic activity and glibenclamide [18]. In the present study, we have investigated the extracts and size dependent catalytic degradation of organic dyes–methyl violet, safranin, eosin methylene blue and methyl orange by in the presence of silver colloids.
Materials and Methods
Silver nitrate (99.99%), methyl violet, safranin, eosin methylene blue and methyl orange, were purchased from sigma Aldrich. All glassware’s were cleaned with sterile distilled water and rinsed with deionized water.
Preparation of extract
Different parts of (stem bark, root and leaf) H. isora were collected from Western Ghats of Tamil Nadu, washed with sterile distilled water and dried, then make it powder. 1 g of each explants powder was mixed with 100 mL of water and kept on orbital shaker at 120 rpm for 12 h. After that, the extracts were filtered with filter paper and stored at 4°C in refrigerator until further use.
Synthesis of silver nanoparticles
Silver nanoparticles (stem bark (S), root (R) and leaf (L)) have been synthesized by Bhakya et al. [19] method with slight modification. The formation of AgNPs is indicated by the appearance of dark brown color within 5 min.
UV–visible spectra analysis was performed for all samples and the absorption maxima were analyzed at a wavelength of 200–700 nm using UV–visible spectrophotometer (UV-160 v, Shimadzu, Japan). The biosynthesized AgNPs were examined for the presence of biomolecules using FTIR spectrum (Thermo Scientific Nicolet 380 FT-IR Spectrometer). The crystalline nature of particles was evaluated by using X-ray diffraction method (XRD). The studies on size and shape of silver nanoparticles were performed by transmission electron microscopy (JEOL JEM2100 TEM). To determine the size distribution of nanoparticles of colloidal solution was analyzed by the DLS particle size analyzer [ZETA Seizers Nanoseries (Malvern Instruments Nano ZS with Zetasizer Ver. 6.20)].
Catalytic activity of silver nanoparticles
The photocatalytic (in presence of sun light) activities of biogenic silver nanoparticles were studied for degradation methyl violet (MV), safranin (S), eosin methylene blue (EMB) and methyl orange (MO) at 50 mg/mL. The degradation of methyl violet (MV), safranin (S), eosin methylene blue (EMB) and methyl orange (MO) in 100 μg/mL of silver colloidal (sample S, R and L) was added to the solutions respectively, organic dyes were constant for all the experiment. Effect of AgNPs dosages on degradation of MV, S, EMB and MO was studied with 20– 100 ug/mL silver nanoparticles.
Results and Discussion
(Figure 1) shows the UV–Vis spectra of silver colloids of S, R and L respectively. It is an important method to determine the formation of metal nanoparticles in colloidal solution. It is observed that the maximum absorbance of Ag nanoparticles occurs at 430 nm. Appearance of this peak, assigned to a Surface Plasmon Resonance (SPR) band, is well-documented for various metal nanoparticles with different size range [20]. Formation of SPR is due to the particle shape, size, interaction with the medium and the degree of charge transfer between the particle and the medium.

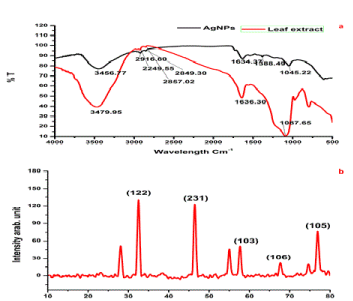

FTIR spectrum was examined to identify the possible biomolecules responsible for capping and efficient stabilization of the biosynthesized Ag nanoparticles, which can help in further functionalization with other molecules for various applications in future. The IR spectrum of AgNPs shows intense bands at 3456.77 cm−1 (O-H, stretch, H-bonded) 29167.80 cm−1 (C-O stretch, free), 1634.37 cm−1 (C=C stretch) and 1045.22 cm−1(C-F strong stretch). The IR spectrum of extract shows intense bands at IR spectrum of leaf extract shows 3456.77 cm−1, 2916.80 cm−1, 1634.37 cm−1 and 1045.22 cm−1 (Figure 2a), and significant variance was observed among the spectral positions of IR bands in extract and biosynthesized AgNPs owed to the reduction process. The presences of IR bands suggest the phenolics, alkaloids and terpenoids adsorbed on the surface of AgNPs [21]. The IR spectrum analysis also provided an idea about biomolecules bearing different functionalities which are present in the basic system. The possible mechanism for the reduction of Ag+ to AgNPs is that phenolic OH groups present in hydrolysable tannins can form intermediate complexes with Ag+ ions which consequently undergo oxidation to quinone forms with subsequent reduction of Ag+ to Ag nanoparticles [22].
Analysis of AgNPs using X-ray diffraction confirmed the crystalline nature of particles (Figure 2b). A number of Bragg reflections with 2θ values of 32.414., 46.507, 57.937, 67.491 and 76.710 correspond to the (1 2 2), (2 3 1), (1 0 3), (1 0 6) and (3 1 1) set of lattice planes are observed which may be indexed as the band for face hexagonal shape in leaf mediated and stem bark and root mediated AgNPs centered cubic structure (ccs) (JCPDS file No. 41-1402) of silver. The unassigned peaks could be due to the crystallization of bioorganic phase that occurs on the surface of the nanoparticle.

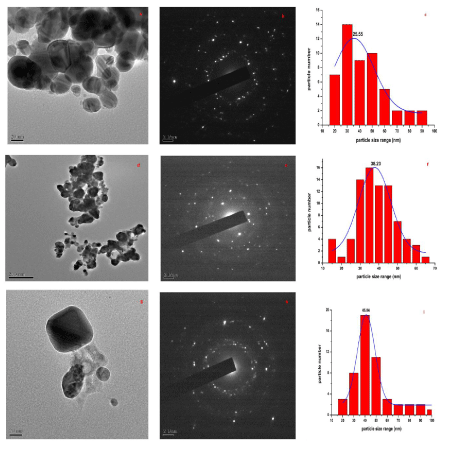

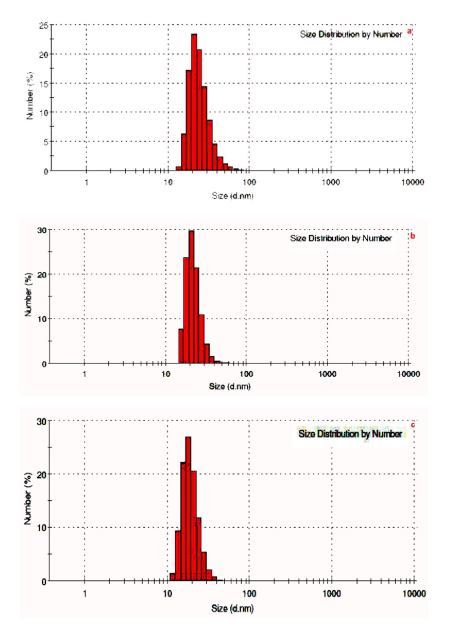

The TEM images at different explant mediated synthesis of AgNPs and SAED pattern are presented in (Figure 3) (a-i), which give clear indications regarding structure, shape and particle size distribution. (Figure 3) (a–c) shows the TEM images of sample stem bark. TEM images of sample root and leaf shown in (Figure 3) (d-i). From the images, it can be seen that the particles are covered with extract it may be the phytoconstituents of extract (Figure 3 d&g). The SAED pattern of AgNPs reveals its polycrystalline nature. The average particle size calculated for sample S, R and L are 25.55 nm, 38.23 nm and 45.55 nm, respectively. The DLS pattern reveals that biosynthesized AgNPs of sample S, R and L shown in (Figure 4 a-c). DLS demonstrate the cubic shape and very narrow size distribution with polydispersity index (PDI) of all the samples. The sizes of the obtained particles of DLS are in good agreement with the values observed by TEM. Both DLS and TEM data confirm that the use of stem bark extract as reducing agents yields smaller particle sizes than using leaf and root extracts at the same concentration.
Catalytic degradation

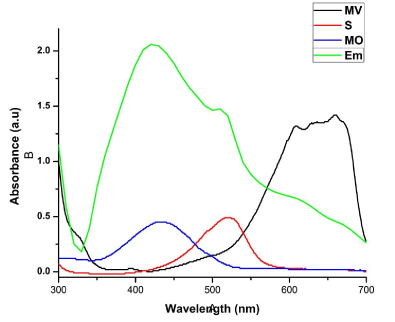

Catalytic activities of biosynthesized AgNPs with different size and shapes of cubic sample S, R and L were evaluated using organic dyes such as methyl violet (MV), safranin (S), eosin methylene blue (EMB) and methyl orange (MO) aqueous solutions (50 mg/mL) as shown in (Figure 5).
Methylene violet (MV)
MV is a mixture of methylene blue and diluted alkalis that are mainly used as dyes for textiles to give deep violet. Based on the methyl groups Methylene violet function was varied. The relative absorbance of MV band was observed at 608 nm (Figure 6). After 30 min the addition of the sample S, R and L to the dye, the absorbance is gradually decreased and is shifted to higher wavelength. The decrease of absorbance is indicating the ability of phytoextract to degrade MV. System containing dye with different size of different explant extracts of AgNPs at the end of 30 min time interval showed a marked decrease in the absorbance of MV and increase of SPR peak of AgNPs. It reveals that the complete reduction of MV is accomplished in less than 30 min in the presence of AgNPs. The size and surface dependent photocatalytic property has been investigated for sample S, R and L. The photocatalytic degradation of MV in the presence of sample S, R and L AgNPs shown in Figure 6 a-c, respectively. Sample S and R is cubic nature and are small and have sharp edges and corners. In this region that atoms at these locations are likely to be both chemically very active and liable to dissolve easily, and that have the producing of very catalytically active sites. The fraction of atoms of cubic particles at these sites is probably generous, making these nanoparticles the most catalytically active [23]. The Hexagonal nanoparticles are the largest and most of its surface atoms are located on their (122) facets, which are known to be the least active. This explains their high value of activation energy. The “cubic” nanoparticles are have both the (111) and (200) facets with edges at the interfaces of these facets, explaining its catalytic activity [24].
Eosin methylene blue (EMB)
The EMB oxidation and reduction were carefully demonstrated recently from the electron (e-) reduction and oxidation abilities of EMB at ground state without using catalyzer NaBH4 [25,26]. The photocatalytic activity of the AgNPs was investigated by choosing the photocatalytic degradation of EMB. The characteristic absorption peak at 430 nm of EMB was used for monitoring the catalytic degradation process. The absorption spectra of aqueous solution of EMB tested at different time intervals in the presence of S, R and L based AgNPs is shown in Figure 7. The main peak at 430 nm decreased gradually with the extension of the exposure time, indicating the photocatalytic degradation of EMB dye. As compared to the photocatalytic degradation with samples R and L, faster degradation kinetics and higher removal efficiencies were observed on sample S. Recent research reveals that photocatalytic activity of AgNPs can be strongly dependent on the structure, morphology, crystallographic nature and size of the particles [8,13].
Safarnin (S)
To test for the photodegradation of S dye by biosynthesized AgNPs of sample S, R and L, a solution containing S dye and sample S, R and L AgNPs is photoirradiated by sun light. At periodic intervals of time, aliquots of the sample were taken and the emission spectra were recorded. (Figure 8) show the quenching efficiency of S dye (50 mg/mL) in the presence of sample S, R and L degradation of dye. The reduction efficiencies of AgNPs increase with time, reaching a plateau. The degradation efficiency of S dye was possibly due to an increase of the applicable surface of the catalyst migration of holes to the surface of the AgNPs. It is important to note that degradation of the S dye in the absence of particles resulted in no significant change in the emission spectra. [27] states that Ag particles are highly efficient and stable catalysts with evident light source under controlled temperature; it induced visible light catalytic degradation and enhanced the visible light activity for degrading textile dyes and organic compounds.
Methylene orange (MO)

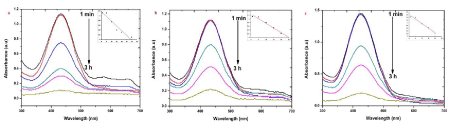

Photocatalytic degradation of MO dye was investigated by biosynthesized S, R and L AgNPs with solar irradiation technique by biometrically at different time intervals as shown in Figure 9. The characteristic absorption peak of MO solution was found to be 433 nm (Figure 5). Degradation of MO was visualized by decrease in peak intensity within 6 h of incubation time. There is no considerable shift in peak position for MO solution without exposure to biosynthesized AgNPs of sample S, R and L. Visible light was found to be faster in decolorizing dyes in the presence of metal catalyst [28,29]. The adsorption of AgNPs on to the MO solution was initially low and further increased with constant increase in time. The variation in the absorption intensity at 433 nm for samples S, R and L is rapid (Figure 9 a-c), signifying the faster reaction rate. The reaction rate (k) is comparatively larger for sample S having smaller particle size than that for sample L and R. The degradation was comparatively less for sample R as the particles are hexagonal. The degradation of the organic dyes increases with decrease in the size of the particles. The reducing in the structure of the metal particles favors the proliferation in the amount of the coordinate atoms and improves the adsorption of molecules on the surface of catalysts and thus improves the degradation of dyes [30]. Thus the catalytic activity of the silver nanoparticles was found to depend on the particle size and its shape.
The presence of silver nanoparticles with sun light was proven very effective for degradation of organic dyes. The linear correlation between ln (C/C0) and the reaction time indicate the reduction process of organic dyes was a pseudo first order (inset of Figure 6-9 (a-c)). The result emphasize that the catalytic activity has been improved due to plant parts having different functional groups. In the present study AgNPs exhibit an awesome performance as a catalyst.

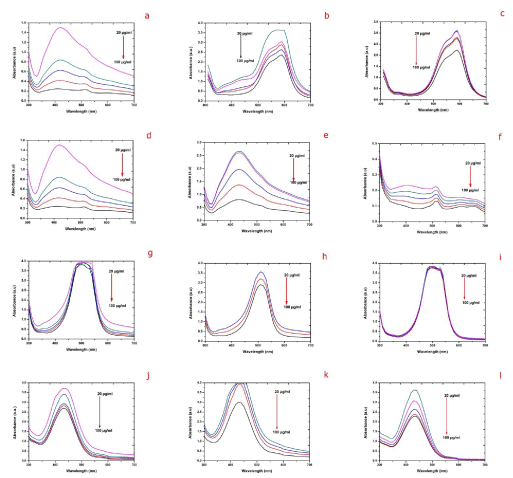

The effect of catalyst dosage varying from 20 to 100 μg/mL on degradation of different organic dyes with different biosynthesized AgNPs was analyzed keeping the other parameters constant. The degradation of organic dyes showed enhancement in the rate of degradation with respect to the increasing AgNPs concentration of sample S, R and L (Figure 10 (a-l)). Increasing the catalyst dose of 20 to 100 μg/mL the degradation rate was increased up to 100% was observed in sample S in EMB and approximately 95% degradation for 100 μg/mL dose of sample R and L. The varied concentration of silver nanoparticles showed higher degradation with increase in catalyst concentration was due to the increase in the number of reaction sites. In this study we observed that increasing the biosynthesized AgNPs dosages the degradation rate was also increased in all the organic dyes with respective samples.
During degradation the catalysis was occurs on the surface region of metals, therefore increasing the surface area availability will significantly improve the efficiency of the catalyst. Decreasing the particle size will increase the catalytic activity, but there is a critical size below which proves that further decreases will actually hamper the reaction [31]. Metal nanoparticles support the electron (e-) relay from the donor to the acceptor and act as a substrate for the e- transfer reaction. During e- transfer reaction, the reactants are adsorbed on the surface of metal and consequently, the reactants gain an e- and is reduced. Thus AgNPs act as an efficient catalyst through the electron transfer process in all the above catalytic reactions [32].
For a healthy future of nanotechnology, green synthetic strategy should be adopted for nanoparticles synthesis by using eco-friendly and renewable molecules to get rid of hazards arising out of the use of chemical reducing agents and organic solvents. Colloid based nanotechnology has been developed to control the size, shape, uniformity and functionality. The biosynthesized AgNPs exhibits a very high degradation activity under visible light source. In the present manuscript, we have demonstrated the synthesis of silver nanoparticles with different extract of H. isora. The present synthesis method proved to be helpful to reduced synthesis of AgNPs and their reduction properties. The bioreduced AgNPs exhibited remarkable degradation properties in a reduction of organic dyes, methyl violet (MV), safranin (S), eosin methylene blue (EMB) and methyl orange (MO). The explant dependent (size was dependent on explant type) catalytic activity was also observed in the biosynthesized AgNPs. This new green chemistry holds several valuable attractions and offers an effective and economic way to environmental bioremediation protection.
The work was financially supported by UGC-Rajiv Gandhi National Fellowship (RGNF) (No: F1-17.1/2013-14/RGNF-2013-14-SC-TAM-44942. (SA-III) University Grant Commission New Delhi, India to the first author. We thank sophisticated analytical instrument facility (SAIF). North-Eastern Hill University (NEHU), Shillong for accessing TEM facility. The authors wish to thank the following individuals who provided valuable advice in the final stage of the revision process: V. Ramalingam, Research Scholar (Department of Marine science, Bharathidasan University, Tiruchirappalli, 620 024, Tamil Nadu, India) and Dr. R. Ramesh (Dr. D.S. Kothari Postdoctoral Fellow, Gandhigram Rural University, Gandhigram, Dindigul District, Chinnalapatti, Tamil Nadu 624302).



Figures at a glance

Figure Figure Figure Figure Figure
Figure 1 Figure 2 Figure 3 Figure 4 Figure 5

Figure Figure Figure Figure Figure
Figure 6 Figure 7 Figure 8 Figure 9 Figure 10
Post your comment

Share This Article

Article Usage

  • Total views: 30752
  • [From(publication date):
    September-2015 - Apr 13, 2024]
  • Breakdown by view type
  • HTML page views : 23129
  • PDF downloads : 7623
