Different Data Warehouse Architecture Creation Criteria

Sweety Patel*

Department of Computer Science, Fairleigh Dickinson University, USA

*Corresponding Author:
Sweety Patel
Department of Computer Science, Fairleigh Dickinson University, USA
E-mail: [email protected]

Visit for more related articles at International Journal of Advance Innovations, Thoughts & Ideas

Abstract

 In real world, different data warehouse systems have different structures. Some content multiple data mart, while some contain ODS (operational data sources). Some contain small of data sources while other contain many no of data stores. Data Warehouse system have some of the layer in general form of its architecture here discussion is done on different architecture of is Data Warehouse and how they are selected.

Keywords

Data Warehouse, Data warehouse architecture.

Introduction

In general Data Warehouse system has following layers

Data source layer

Data extraction layer

Staging area

ETL layer

Data storage layer

Data presentation layer

Metadata layer

System Operation Layer

As bellow fig1.shows different components relationship among the various component of Data Warehouse architecture.

innovations-thoughts-ideas-Data-warehouse

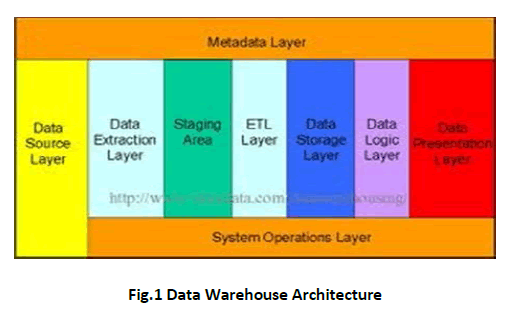

Figure 1: Data Warehouse Architecture

Data Source Layer

This shows different data sources that feed data into the data warehouse. The data source can be any format plain text file. Relational database other type of databases, Excel file, SQL data base, access MySQL, PostGreSQL data base. All can act as a data some. Many different types of data can be data source

• Operations: such as HR data, Sales data production data, Inventory data, Marketing data, System data

• Web server logs with user browsing data

• Internal marking research data

• Third party data are such as demographics data or survey data

• All these data sources together form the data source layer.

Data Extraction Layer

Data is pulled from data source into D.W. system. There is likely some minimal data cleansing, but it is may a case for much more transformation on the data.

Staging Area

This is where data can sits prior to being scrubbed & transformed into Data Warehouse /Data Mart rather than all data source as a fetching area or source of data having common data area makes it easier for subsequent data pressing/ integration.

ETL Layer

This stage, where data gets its “intelligence” where there is process of transformation is applied so, transactional data is transferred to analytical data to make decision for getting exact application as a repair to create different decision making structures. This layer is also where data cleansing happens.

Data Storage Layer

This is where the transformed & cleansed data sits. Based on scope of functionality, 3 types or entity can be found here. (1) Data Warehouse (2) Data Mart (3) Operational data store (ODS)
In any given system, actually system contain any of three two of three or three of three as an entity for further functionality.

Data Logic Layer

There is the area of D.W. where business logic is stored. These business rules does not affect any transformation process of the data but provide a structure for getting a report as a decision making process.

Data Presentation Layer

This restores to the information that reaches to the users. This can be a form of tabular, graphical report in a browser an emailed report that gets automatically generated and sent everywhere as per the given domain of users or an alert that warns users of exceptions among others.

Metadata Layers

This is where information about the data stored in the Data Warehouse system is stored. A logical data model would be an example of something that is in metadata layer.

System Operations Layers

This layer includes information on how the data warehouse system operates, such as ETL job status, system performance and user access history.

How OLTP and Data Warehousing Is Contrasting

One major difference between the types of system is that data warehouse are not usually in third normal form (3 NF) a type of data normalization common in OLTP Environments. Data warehouses and OLTP system have very different requirements.

innovations-thoughts-ideas-Data-warehouse

Table 2: Key difference between an OLTP sys & data warehouse

Some Examples of The Difference Between Typical Data Warehouses And OLTP System
Workload

Data Warehouse is designed to accommodate ad hoc queries. The workload of Data Warehouse is in to advance, so a Data Warehouse should be optimized to perform well for a wide variety of possible query operations.

OTPL system support only predefined operations. Applications might be specifically tuned or design to support only those Operations.

Data Modification

A data warehouse is updated on a regular basis by the ETL process using bulk data modification techniques. The end user of data warehouse does not directly update the Data Warehouse. While in OLTP systems, end users routinely issue individual data modification statements to Data base. The OLTP database is always up to date and reflects current state of each business transactions.

The Factors That Are Affect the Selection of Architecture

No two organizations are the same and consequently companies may differ on their architecture selection decision procedure, there is no possibility to provide single architecture for all of the companies which are best in any situation. From experts, some potential factors are identified to select particular architecture. Some of the factor related to the relational theory, such as the information processing theory of the firm, while others are retailed on social, political theories such as power and politics.

Organizations Units’ Information Integration

The high level of information interdependence is, when the work of One Organizational unit depends on different organizational unit. In this situation the ability to share consistent, integrated information is important. It is understood that firms with high information. Interdependences select an enterprise wise architecture.

Upper Management Is Information Needs

For carrying out job responsibilities, higher management often requires information from lower organizational levels. It may need to monitor progress on meeting company goals, drill down into area of interest, aggregate layer/level data and be confident that company is a compliance with regulation.

Urgency of Need for A Data Warehouse

An organization can be Data Warehouse or Data Mart and so business rules needed to implement Data Warehouse fast. Some architecture is more quickly implemented than others. So as per the requirement Data Warehouse architecture is selected.

Nature of End User Task

Some User perform non-routine task queries with specific structures reports are not sufficient in manner to provide their needs. They have to analyse their data as per the end users requirement. These users require an architecture that provides enterprise wide data that can be analysed “on the fly” in creative way.

Constraints on Resources

Some Data Warehouse require more resources to implement it than others, resources as it personal, business unit personal and monetary resource can impact the selection of the architecture.

View of Data Warehouse Prior To Implementation

Organization differ in their view or plans for Data Warehouse or Data marts. Some may require building Data Warehouse as a part of their strategic plans while other organizations may not. As a result it may be developed to provide Point solution” to a particular business units need. It may be project which is supporting decision. Support infrastructure to support a range of applications, it may be critical enabler to support a company’s strategy business objective. So as per the required view, Data Warehouse implementation is done.

Expert Influence

When building a data warehouses. There are many places turn for help – consulting, the literature, conferences and seminars internal experts and end users. These varying degrees can influences the architecture that is selected for example an implemented last successful architecture, pointed out by consultant, which is made successful completion and satisfactory reports from prior Data Warehouse.

Compatibility with Exciting System

Many benefits are included to the existing system it is work as a foundation of building of Data Warehouse & new other steps or new other changes are done in already established foundation. This may include compatibility with source systems, metadata integration, data access tools and technology vendors.

The Perceived Ability of the In House It Staff

The building of Data Warehouse can also affect the factors like. IT staff’s technical skill, successful experience with similar projects, and level of confidence. All these factor make system of making Data Warehouse is improvement.

Source on Sponsorship

The source of sponsorship for a Data Warehouse may vary from a single department or business unit to the top management within an organization. Influence from the sponsors may control many aspect of Data Warehouse act initiative such as monetary resources and the architecture selected.

Technical Issues

A variety of technical consideration can affect the choice of architecture scalability in terms of no of users’ volume of data, query performance, scalability in terms of the number technical changes etc.

Conclusion

The research model that relates the factors to the architectures is shown as below:

Architecture Selection Factors

• Information Interdependence

• Upper management’s information needs

• Urgency of need

• Nature of end user task

• Resource availability

• View of the data warehouse

• Export influence

• Compatibility with exciting system

• Received ability of the in house IT staff

• Source of sponsorship

• Technical issue

Data Warehouse Architectures

• Independent data marts

• Data mart bus architecture

• Hub

• Centralized data Warehouse

• Federated
