Effective Strategies for Selection of Suitable Clay Stabilizers to Control Clay Swelling

Jie Xiao*, Jianghong Wang and Xin Sun

Holding Energy Petroleum Engineering, (BeiJing) Co. Ltd., China

*Corresponding Author:
Jie Xiao
Consultant, Holding Energy Petroleum Engineering
(BeiJing) Co., Ltd, China
Tel: + 010-88593266-817
E-mail: [email protected]

Received Date: December 16, 2016; Accepted Date: December 22, 2016; Published Date: January 02, 2017

Citation: Xiao J, Wang J, Sun X (2017) Effective Strategies for Selection of Suitable Clay Stabilizers to Control Clay Swelling. Oil Gas Res 3: 124. doi: 10.4172/2472-0518.1000124

Copyright: © 2017 Xiao J, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

Visit for more related articles at Oil & Gas Research

Abstract

This paper discussed the mechanisms and processes in clay swelling. Various parameters used to predict the clay swelling processes were discussed. This study also shows how to select the suitable clay stabilizer for clay swelling control under different circumstances. Selection of clay stabilizers depends on the types of formation, the intrinsic the treatments. Different treatments require different types of clay stabilizers. Before applying any chemical treatment for clay swelling, knowing the mineralogy of clay minerals and locations of clay minerals is always being the first priority

Keywords

Clay swelling; Clay stabilizer; Crystalline swelling; Osmotic swelling

Introduction

Clay minerals can be classified into kaolinite group, smectite group, and illite group. Different types of clay minerals maintain different properties and should be addressed separately in terms of the formation damage issues caused by clay minerals [1]. Kaolinite tends to break apart, then migrates and accumulates in the critical pore throat areas. The consequences may be severe formation plugging and loss of permeability. Chlorite is very sensitive to acid or oxygenated waters and will precipitate Fe(OH)3. Illite will leach potassium ions to increase the expandable clay and then migrates with other fines. In most cases, illites are interlayered, which makes them hard to stabilize and more easily to be dispersed in the formation. Smectite is the most sensitive expandable clay mineral to brine salinity, which can cause severe loss of permeability and micro porosity [2-5]. The formation damage issues caused by clay minerals can be due to chemical reactions or physical processes, which are determined by many factors, including mineralogy and chemical composition, mineral abundance, mineral size, etc. To design an effective chemical treatment for formation damage by clay minerals, the mineralogy and the location of minerals must be known because different minerals act differently with chemicals [6]. In this paper, the mechanisms of clay swelling were analyzed and summarized. Then various methods to predict clay swelling were present. Based on that analysis, effective strategies for selection of suitable clay stabilizers were presented [7].

Mechanism of Clay Swelling

Clay swelling is the result of d-spacing increase and volume increase whenever the exchangeable cations are hydrated. According to Norrish [8], the main processes of clay swelling involve main two steps: the crystalline and osmotic swelling processes.

Crystalline swelling

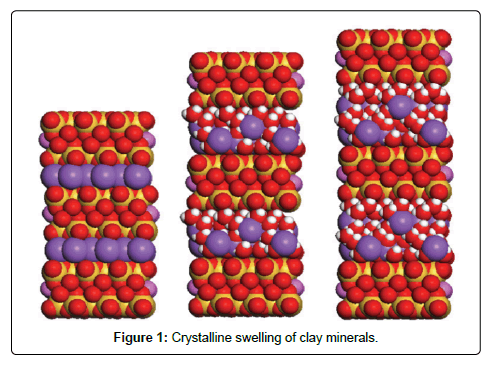

Crystalline swelling occurs in the presence of concentrated brines or brines that contain high concentration of divalent or multivalent cations. The formation of water layers on the surfaces of clay minerals causes crystalline swelling, with the concentrations below critical salt concentration. Figure 1 shows a molecular structure of 2:1 ratio sheet with exchangeable cations between layers. The left part is the anhydrous structure with no hydrations of water. The middle picture demonstrates the changes in the dimensions with four hydrated water molecules. The right part shows the changes in the dimensions with eight hydrated water molecules [9,10].

oil-gas-research-minerals

Figure 1: Crystalline swelling of clay minerals.

Osmotic swelling

Osmotic swelling occurs when clay minerals are exposed to solutions that contain large quantity of sodium cations. The formation of an electric double layer on surfaces of clay minerals caused clay swelling. In this case, more clay swelling and more formation damage would be expected. Different from crystalline swelling, osmotic swelling occurs at low concentrations above critical salt concentrations [11].

Predict clay swelling

The regions for crystalline or osmotic swelling can be differentiated by the value of interplanar spacing. At critical salt concentration, a discontinuity in the inter planar space can be observed. This is the transition point between crystalline and osmotic swelling. Charts can be constructed under various salt concentrations to predict the transition point. In the other ways, x-ray diffraction method can be used to construct the clay swelling charts under various salt concentrations. Then the compatibility of various clay minerals with various electrolyte solutions can be determined from the chart. From this chart, the clay swelling process can be determined whether it is crystalline swelling or osmotic swelling [12-15]. Osmotic repulsive pressure exists between clay particles when the total amount of ions in the double layer of clay minerals is more than that of in the solution. In this case, water in the pore space will enter into double to dilute the concentration [16]. As the electric filed acts as a semi-permeable membrane, water can enter into the double layer but the exchangeable cations cannot leave the layer. As a result, the double layer expands and the inter-particle distance increases. This leads to expansion of clay minerals and the result is clay swelling. Lots of researchers have proposed models and equations to calculate the values of osmotic repulsive pressure, thus predict the extent of clay swelling [17-20]. Researchers also proposed some other important parameters used to predict clay swelling, such as, water absorption rate, clay swelling coefficient, water content during clay swelling, time-dependent clay expansion coefficient, porosity reduction by clay swelling, and permeability reduction by clay swelling. All those parameters are very helpful in predicting the extent of clay swelling, with the region charts and osmotic repulsive pressure being the most effective ones [21].

Selection of Clay Stabilizers

Application of clay stabilizers has been proved to be the most effective way to control clay swelling. Table 1 lists the different stages in the development process of clay stabilizers [22-26]. Clay stabilizers can be categorized into two groups: inorganic clay stabilizers and organic stabilizers. Inorganic clay stabilizers include simple inorganic compounds, cationic inorganic polymers and steam additives. Organic clay stabilizers include simple organic compounds, cationic organic polymers, anionic organic polymers and non-ionic organic polymers [27-29]. The simple inorganic compounds are easy to apply and cheap, compared with other types of clay stabilizers. Examples are KCl, CaCl2, and they are widely used for water flooding or drilling fluids. They can also be used as a pretreatment for EOR. However, they are usually weak and temporary. They cannot be applied with steam either [30-32]. The cationic inorganic polymers, on the other hand, usually are used as a pretreatment for EOR or as a post treatment following acidizing treatments. Compared with the simple inorganic compounds, they can last longer and cannot be reversible. However, the shortcomings of applying cationic inorganic polymers are they require a shut period prior to application and they are very pH sensitive. Therefore, their effectiveness are limited under certain circumstances. Steam additives are developed to overcome the disadvantages of simple inorganic compounds and cationic inorganic polymers. They are cheap and acted as a pH buffer. They are applied for pH and salinity control during steam injection and can be used to treat the whole formation. However, they are less effective compared with the other types of clay stabilizers [33-36]. Simple organic compounds are similar to simple inorganic compounds and are used in water flooding, workovers or pretreatment. They are easy to apply but with limitations of temporary effects and not applicable in oil-wet formations. Cationic organic polymers are used mainly in acidizing or fracturing treatments, well completion or pre-treatment for EOR [37,38]. They are tolerant to carrier fluids and are irreversible. However, they are not suitable for low permeability formation. Anionic organic polymers are mainly used in drilling and completion fluids. They are also used as viscosity control agents. Shortcomings of those additives are acid and temperature sensitive and they are less effective compared with cationic polymers. Non-inoic organic polymers act similar to anionic organic polymers and examples are polycrylamide and vinyl pyrrolidine. Cationic polymer clay stabilizers are better in controlling clay swelling as they cannot be replaced by simple cations and can irreversibly stabilize clay swelling. While on the other hand, anionic or non-ionic organic polymers control clay swelling by bridging or encapsulating clay particles. As discussed above, clay swelling is most affected by the surface properties of clay minerals. The bulk properties of clay minerals control the hydrothermal stability of clay minerals. Normally, it is hard to change the hydrothermal properties of clay minerals [39]. However, solution properties, especially the pH value, have a profound effect on hydrothermal reaction processes through affecting reaction rate and reaction path. Adjustment of solution properties can control the hydrothermal properties of clay minerals to some extent.

Development Stages Types of Clay Stabilizers
1960s Monovalent salts
1970s Polyvalent salts
1980s High molecule with cationic organic polymers cationic surfactants
1990s Low molecule weight cationic organic polymers, organic cations
2000s Hydrophobic polymers
2010s Ultra low molecular weight cationic organic polymers

Table 1: Development stages of clay stabilizers.

Conclusions

Based on above discussion, the following conclusions can be drawn:

• Clay swelling involves two main steps: the crystalline and osmotic swelling processes. Different from crystalline swelling, osmotic swelling occurs at low concentrations above critical salt concentrations.

• Clay swelling can be predicted through various parameters with the region charts and osmotic repulsive pressure being the most effective ones.

• Selection of clay stabilizers depends on the types of formation, the intrinsic the treatments. Different treatments require different types of clay stabilizers. Before applying any chemical treatment for clay swelling, knowing the mineralogy of clay minerals and locations of clay minerals is always being the first priority.
