Received date: September 14, 2014; Accepted date: October 20, 2014; Published date: October 23, 2014
Citation: Chan RHY, Kam WWY, Liu GJ, Zavitsanou K, Banati RB (2014) Testicular Translocator Protein Expression is Differentially Altered by Synthetic Cannabinoid HU210 in Adult and Adolescent Rats. J Addict Res Ther 5:198. doi:10.4172/2155-6105.1000198
Copyright: © 2014 Chan RHY, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
Visit for more related articles at Journal of Addiction Research & Therapy
Objective: The translocator protein (TSPO) has been implicated in numerous functions including steroid production and regulation of stress and anxiety. Cannabinoids have been shown to reduce plasma testosterone levels and alter anxiety levels. The aim of the present study was to determine whether the synthetic cannabinoid HU210 is able to regulate TSPO expression in several peripheral organs.
Methods: HU210 (100 μg/kg) was administered intraperitoneally to both adult and adolescent male ratsfor 14 days. TSPO receptor expression in several organs, including the liver, spleen, kidneys and testes, was quantified by membrane receptor binding using the selective radiolig and, PK11195. In cases where receptor binding data indicated significant cannabinoid-induced differences, further RT-qPCR was carried out to determine the transcriptional regulation of the TSPO gene. Additionally, film-autography was used to identify potential changes in the spatial distribution of the TSPO tissue binding sites.
Results: Results indicate that HU210 induces significant reductions in testicular TSPO expression in adult but not adolescent rats. No changes were found in other organs examined. These results are consistent with the previously observed effects of cannabinoids on testosterone production and a presumed role for TSPO in steroidogenesis.
Conclusions: Overall, these results suggest that cannabinoids may alter testosterone production by altering the expression of testicular TSPO and that the alteration of TSPO occurs in an age-dependent manner.
Adolescent rats; Adult; Cannabinoid; Protein expression
TSPO, previously known as the peripheral benzodiazepine receptor, is a membrane bound protein found mainly on the outer mitochondrial membrane . Found in nearly all tissues, TSPO is highly expressed in steroidogenic tissues such as the adrenals glands and gonads . A myriad of functions have been prescribed to TSPO including cholesterol transport [3,4], steroidogenesis [4,5], stress regulation , heme transport [7,8], cell proliferation [9,10], apoptosis [11,12] and immunomodulation [13,14]. The protein sequence of TSPO contains a cholesterol binding motif known as the CRAC domain . As such, best characterised function of TSPO is its ability to associate with cholesterol  and assist in its transport across the outer mitochondrial membrane, allowing the initiation of steroidogenesis in the mitochondrial matrix [17,18]. Further, it has been proposed that the transport of cholesterol across the mitochondrial membranes is the rate-limiting step of steroidogenesis . As TSPO is important to the production of steroids, it has been suggested to play a role in stress and anxiety regulation through the regulation of neurosteroids [20-22]. Neurosteroids such as allopregnanolone and dehydroepiandrosterone have been shown to modulate GABAA receptors and thus affect stress and anxiety responses [23-26]. The connection between TSPO and stress has also been demonstrated in human and animal studies which have found a reversible down regulation of TSPO expression in the blood and peripheral organs in response to chronic stress or anxiety .
In males, the production of testosterone occurs primarily in the testicular tissues. Both acute and chronic cannabinoid administration have been shown to reduce testosterone production . This effect appears to be dose dependent  and has been well established in both human and animal studies [29,30]. Cannabinoid administration leads to dose-dependent reductions in gonadotropin-stimulated testosterone production  but does not interfere with the binding of gonadotropins to their receptors. This suggests that cannabinoids may exert one of its effects locally by regulating steroidogenic pathways. The precise mechanisms by which cannabinoids affect testosterone production are unclear but may involve the inhibition of cholesterol esterase and ATPase dependent calcium transport [31,32]. More recent studies involving CB1 knockout mice reveal that cannabinoids are able to act on CB1 receptors on Leydig cells to reduce testosterone production .
In addition to its ability to reduce testosterone production, cannabinoids are also well known for their ability to induce euphoria, relaxation and provide a psychological high . Cannabinoid administration has been observed to produce bidirectional effects on stress and anxiety responses. Typically, lower doses have anxiolytic effects and higher doses have anxiogenic effects . Further, differential responses in the adverse properties of cannabinoids have been reported between adult and adolescent animals [36-38] suggesting that adolescent animals experience greater residual impairments and deficits. Similarly, differential responses to cannabinoids between adult and adolescent animals have been found in various neurotransmitter systems, including GABAergic, serotonergic, dopaminergic and cannabinoid receptor systems [39-42].
Given the role of TSPO in steroidogenesis, and stress and anxiety regulation, we examined the effect of a high-dose chronic administration of HU210, a non-specific cannabinoid receptor agonist, on TSPO expression. This effect was examined in both adult and adolescent rats in testicular tissues as well as other peripheral organs.
All procedures involving animals were approved by the Animal Care and Ethics Committee at the Australian Nuclear Science Technology Organization.
HU210 was purchased from Sapphire Biosciences (Waterloo, NSW, Australia). 3H-PK11195 was purchased from Perkin Elmer (Waltham, MA, USA). TRIzol and RNA reverse transcription related reagents were purchased from Invitrogen (Mulgrave, NSW, Australia). PCR reagents were purchased from BioRad (Gladesville, NSW, Australia). All other reagents unless specified were purchased from Sigma-Aldrich (Castle Hill, NSW, Australia). Bicinchoninic acid protein assay kit was purchased from Thermo Fisher Scientific (Scoresby, VIC, Australia).
HU210 injection and tissue collection
Animals were housed in standard laboratory conditions, with food and water supplied freely. Conditions were maintained at 22 ± 2°C, 60 ± 10% humidity and a 12/12 light/dark cycle with lights on at 9 a.m and off at 9 p.m. Animals were acclimatised for 1 week before HU210 or vehicle administration, during this time animals were also handled daily to reduce the stress associated with intraperitoneal injections.
HU210 dose and treatment regime were adapted from Verdurand et al. . Briefly, twenty-four male Wistar rats, 12 adults and 12 adolescents, were used in this study. For each age group, animals were randomly assigned into 2 groups: HU210 or vehicle treatment. All animals were weighed daily prior to injection to ensure accurate dosage. HU210 was dissolved in DMSO and tween and suspended in saline in à 1:1:98 part solution. HU210 at 100 μg/kg, or vehicle was injected at approximately 10:30 a.m. daily for 14 consecutive days. Animals were restrained by hand and injected in the lower intraperitoneal area into the intraperitoneal cavity. Adult and adolescent animals were first injected on postnatal day (PND) 78 and 35 respectively and upon completion of HU210 or vehicle administration were aged PND 91 and 48 respectively. Twenty-four hours after the last injection, animals were euthanized by CO2 overdose and decapitated. Organs were swiftly collected, snap frozen in liquid nitrogen and stored at -80°C until required.
Radioligand membrane binding
Organs were homogenised in approximately 50 mL of ice-cold TRIS buffer (pH 7.4) and collected by centrifugation at 48000 g. This procedure was then immediately repeated. Following the second centrifugation, samples were resuspended in approximately 50 volumes of ice-cold TRIS buffer and stored at -80°C until required. Protein concentration was measured using a bicinchoninic acid protein assay kit following the manufacturer’s instructions.
Total binding was determined by 10 different concentrations of 3H-PK11195 ranging from 1.26 nM to 40 nM. Non-specific binding was determined by the addition of 5 µM PK11195 to replicate tubes containing the 6 lowest concentrations of 3H-PK11195. Each tube contained 60 µg of protein sample and the final reaction mixture was 400 µL. Each concentration of radioligand in both total and non-specific binding was performed in triplicates. 3H-PK11195 bound protein samples were incubated on ice for 90 minutes before harvesting by rapid filtration through glass fibre Whatman GF/C filters presoaked in 0.5% polyethyleneimine solution. Filters were collected, placed in liquid scintillation cocktail and counted after standing for at least 12 hours at room temperature. Non-specific binding at the 4 highest concentrations was estimated by fitting a linear equation to the experimentally obtained values for non-specific binding. Bmax and Kd values were fitted by non-linear regression using GraphPad Prism version 5.04 for Windows (Graph Pad Software, San Diego, CA, USA).
RNA isolation and RT-Qpcr
Total RNA from testicular samples was isolated using TRIzol reagent following manufacturer's instructions. RNA concentration was determined using the Nanodrop 2000c spectrophotometer (Thermo Fisher Scientific, Scoresby, VIC, Australia) and purity was assessed by both 260/280 and 260/230 nm ratios. RNA quality was examined by 28S/18S ratios following electrophoresis on 1% agarose gel. First-strand cDNA was synthesized by reverse transcription of 5 µg of RNA using SuperScript III First-Strand Synthesis SuperMix following manufacturer’s instructions. Following cDNA synthesis, samples were diluted equally with DEPC treated water and stored at -20°C until required. cDNA was then amplified through real-time PCR by CFX384 Real-Time PCR Detection System (Bio-Rad, CA, USA) using SsoFast EvaGreen Supermix along with forward and reverse primers; the total reaction volume was 5 µL. Primers for the TSPO , β-actin  and Glyceraldehyde 3-phosphate dehydrogenase (GAPDH)  genes were used; PCR primer sequences for TSPO forward primer: 5’-GGGAGCCTACTTTGTGCGTGG-3’; TSPO reverse primer: 5’-CAGGTAAGGATACAGCAAGCGGG-3’; β-actin forward primer: 5’-ACCAACTGGGACGATATGGAGAAGA-3’; β-actin reverse primer: 5’-CGCACGATTTCCCTCTCAGC-3’; GAPDH forward primer: 5'-CCATGGAGAAGGCTGGGG-3’; and GAPDH reverse primer: 5'-CAAAGTTGTCATGGATGACC-3’. PCR amplification run cycle conditions were 98°C for 30 seconds and thermo-cycling for 40 cycles at 98°C for 5 seconds and 63°C for 10 seconds, with a final extension at 72°C for 10 minutes. To establish a melt curve, the temperature was raised from 75°C to 95°C at 0.2°C increments. Melt curves with multiple peaks which suggested contamination was discarded. The quantitative PCR and relative expression of the TSPO gene was then calculated using the CFX Manager Software, version 2.0 (Bio-rad, CA, USA) using the “Normalized expression ??Cq” option and both β-actin and GAPDH as reference genes. All samples were performed in triplicates. Of the 24 samples tested, 2 were excluded due to large gene expression ratios between the GAPDH and β-actin housekeeping genes.
To assess changes in the spatial distribution of TSPO, snap-frozen testicular tissues were sectioned at 20 µm in a cryostat, thaw mounted on polylysine-coated slides and stored at -80°C until required. On the day of the experiment, slides were thawed at room temperature and air dried with a cool stream of air. Total binding was determined by incubating slides with 1 nM of 3H-PK11195 in 130 mM TRIS-HCl buffer for 20 minute at room temperature. Non-specific binding was determined by incubating adjacent sections with 1 nM of 3H-PK11195 in the presence of 3 µM of PK11195. Following incubation, the slides were briefly dipped twice in 130 mM TRIS-HCl buffer, washed twice for 5 minutes in fresh 130 mM TRIS-HCl at room temperature. The slides were briefly rinsed 3 times in chilled distilled H2O, dried under a cool stream of air and allowed to be air dried overnight. Sections were then exposed to Kodak BioMax MR film along with tritium microscales with known activity concentrations in X-ray film cassettes. Films were developed after 33 days; images were digitized using a GS800 Calibrated Densitometer (Bio-Rad, CA, USA).
Statistical analyses were performed by GraphPad Prism version 5.04 (La Jolla, CA, USA). Data were analysed with two-way ANOVA (age x treatment) followed by multiple comparisons with Bonferroni correction. Body weight data were analysed with two-way repeated measures ANOVA. Significance was set at p < 0.05 and results are presented as mean ± standard error of the mean.
HU210 decreased body weight
Overall, analysis of weight data found significant group (F(3,432) = 4588, p < 0.0001), time (F(20,432) = 83.15, p<0.0001) and interaction effects between the two variables (F(60,432) = 12.27, p<0.0001). After arrival from the Animal Resources Centre and prior to HU210 treatment, the body weight of both adult and adolescent rats increased. Multiple comparisons with Bonferonni correction found no significant differences in adult or adolescent groups which were to receive either HU210 or vehicle treatment prior to drug administration (p > 0.05 for all time points prior to HU210 or vehicle administration; Figure 1). Following the first injection of HU210 significant differences were found between treatment groups in both adult and adolescent animals in all time points following the first injection (p<0.01). After 14 days of HU210 treatment both adult and adolescent groups displayed significant reductions in body weight compared to their vehicle controls (adult weight=361.56 ± 11.52 g vs 406.60 ± 9.10 g, p<0.001; adolescent weight =225.42 ± 5.81 g vs 276.16±9.25 g, p<0.001; Figure 1). However, the dynamics of weight loss in both groups differed; compared to pretreatment after 14 days of HU210 administration adults lost 5.1% of body weight compared to a gain of 11.6% in vehicle treated adults, while HU210 treated adolescents gained 38.6% of body weight compared to gain of 70.0% in vehicle treated adolescents. Further, adult animals experienced maximum weight loss on the fourth day of HU210 treatment, whereas adolescent animals experienced maximum weight loss on second day of HU210 treatment.

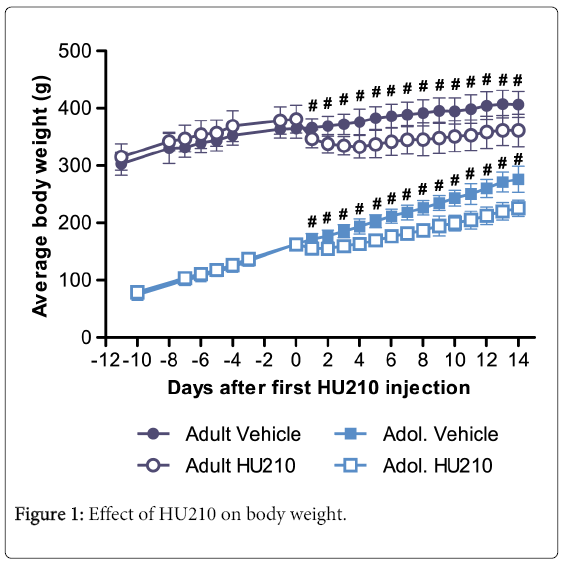

Change in the average body weight over time before and after receiving HU210 (100 μg/kg i.p.) or vehicle over 14 days. HU210 had a strong impact on body weight; differences between HU210 and vehicle treated groups were significant for both adults and adolescent animals for all time points following first injection (p < 0.01).
HU210 decreased 3H-PK11195 membrane binding in adult testicular tissues
Total binding from radio ligand membrane binding typically reached a plateau at the 3 highest concentrations of 3H-PK11195 with lower concentrations forming a rapid sharp curve towards the origin. Non-specific binding displayed a near linear relationship with typical r2>0.98. In testicular tissue, two-way ANOVA of Bmax revealed a significant age effect (F (1,20)=16.72, p<0.01), a non-significant treatment effect (F(1, 20)=2.71, NS) and a significant interaction effect between the two variables (F(1, 20)=91.21, p<0.001). Overall, compared to adults, adolescent testicular Bmax was lower by 54% (8015.67 ± 464.52 vs 14822.5 ± 833.54 fmol/mg protein; Figure 2A). Analysis of the interaction effect with multiple comparisons revealed that HU210 treated adult animals had a significantly lower TSPO Bmax compared to vehicle control (12778.33 ± 857.32 vs 16866.67 ± 806.61 fmol/mg protein; p<0.001; Figure 2A), this amounted to an approximately 24% decrease in TSPO expression following HU210 treatment in adults. However, no significant differences were detected between HU210 treated adolescent animals and their vehicle control (7145.33 ± 573.91 vs 8886 ± 563.07 fmol/mg protein). Further, a two-way ANOVA of Kd revealed a significant age effect (F(1, 20)=27.77, p<0.0001) with adult animals having a 52% higher Kd than adolescent animals (8.09 ± 0.33 vs 4.18 ± 0.37; Figure 2B); no significant treatment or interaction effect between the two variables were detected (F(1,20)=1.17, NS; F(1,20)=2.48, NS, respectively). No significant age, treatment or interaction effect in Bmax was seen in the kidney, spleen or liver tissues (Figure 2C,2E,2G). Similarly no significant age, treatment or interaction effect in Kd was seen in the kidney or spleen tissues (Figure 2D and 2F). In the liver tissues, a significant age effect was observed between adult and adolescent animals in Kd values (Kd=2.15±0.26 vs 3.69±0.4, F(1,20)=11.03, p<0.01; Figure 2H); no treatment or interaction effect was seen.

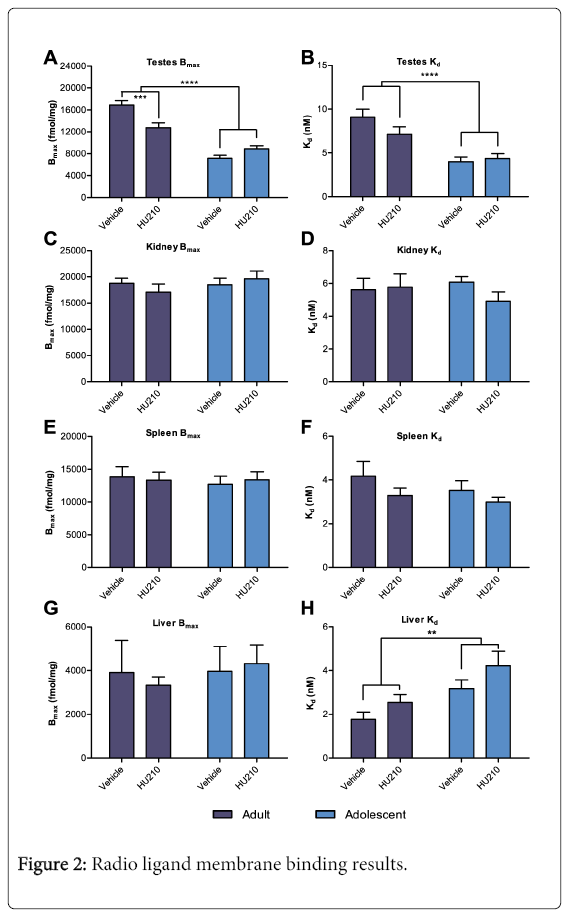

3H-PK11195 membrane binding results from HU210 and vehicle treated adult and adolescent animals. Tissues examined include the A and B) testes, C and D) kidneys, E and F) spleen and G and H) liver. In testes, two-way ANOVA revealed a significant reduction in Bmax in adolescent compared to adult animals (p < 0.0001). Multiple comparisons revealed a significant reduction in Bmax in HU210 treated adults compared to control (p > 0.001), this was not seen in adolescent animals. In both the testes and liver tissues a significant difference in Kd between adult and adolescent animals was also found (p < 0.0001, p < 0.01 respectively).
HU210 reduced testicular TSPO mRNA in HU210 treated adult rats
Relative TSPO mRNA expression revealed a significant age (F(1,18)=7.24, p<0.05), treatment (F(1,18)=6.99, p<0.05) and interaction effect between the two variables (F(1,18)=7.01, p<0.05; Figure 3). HU210 treated adult animals had a significantly reduced TSPO mRNA expression compared to their vehicle controls (7.54 ± 2.36 vs 0.58 ± 0.02; p<0.01). This effect was not seen in adolescent animals (0.64 ± 0.05 vs 0.59 ± .03; NS, Figure 3).

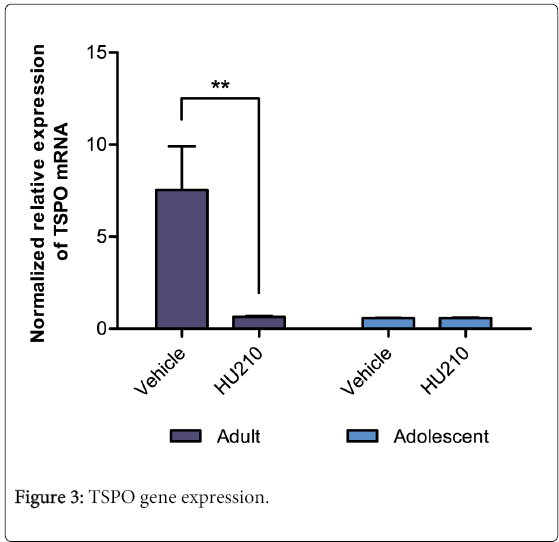

Normalized relative expression of the testicular TSPO mRNA as determined by qPCR, using GAPDH and β-actin as housekeeping genes. In adults, compared to vehicle control, HU210 treatment significantly reduced TSPO mRNA expression (p<0.01). No significant differences were observed between treatments in the adolescent group.
HU210 did not alter interstitial TSPO distribution within testicular tissues
3H-PK11195 autoradiography of testicular tissues showed no alterations in overall TSPO distribution in HU210 treated adults or adolescent animals. TSPO distribution remained the highest in the interstitial space (Figure 4), with distribution being roughly even across the entire section. Non-specific 3H-PK11195 binding was very low and close to unexposed film-autoradiographic background indicating that observed 3H-PK11195 binding is specific and represents TSPO. Since radioligand membrane binding was already used to quantify the level of TSPO protein expression, the intensity of the autoradiographic distribution was not measured as radioligand membrane binding provides a more accurate measure of protein expression.

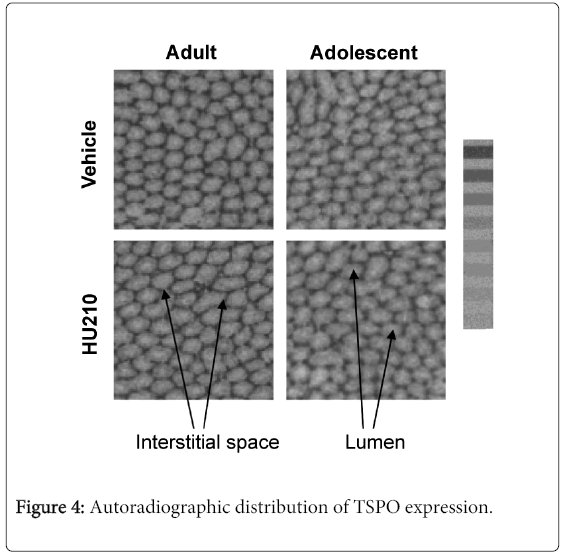

Representative autoradiographs of testicular TSPO expression from HU210 or vehicle treated adult and adolescent animals. A tritium standard microscale, 4107 to 109 Bq/mg, is shown next to the images. TSPO expression was determined by autoradiography using 3H-PK11195. Compared to vehicle controls, no alterations to the site of TSPO expression was found in HU210 treated animals; TSPO expression remained high within the interstitial space.
The main findings of this study are that in testicular tissues adolescent animals (PND 48) have an overall lower TSPO protein and gene expression than adult animals (PND 91), and that HU210 appears to cause a decrease in adult testicular TSPO expression while adolescent testicular tissue appears to be unresponsive. TSPO is thought to be involved in the rate limiting step of steroidogenesis [4,5,19]. The observed age-related difference in testicular TSPO expression is thus consistent with age-related changes in androgen production associated with development into adulthood. Male rats do not produce mature sperm until PND 53, an indication of sexual maturity, and gradual increases in testosterone are only seen from PND 45-56 . Therefore, when adolescent animals were sacrificed on PND 48, testosterone production and TSPO expression had yet to reach its peak. Separately, results indicated that testicular and liver binding affinity of 3H-PK11195 altered with age, although the significance of this finding is unclear and requires further investigation. Neither the kidney nor spleen tissues demonstrated any age-related changes. These results, with the exception of alterations in affinity, are consistent with previously reported age-related changes in TSPO expression [46,47].
Both, radioligand membrane binding and RT-qPCR, reveal that chronic high-dose administration of synthetic cannabinoid HU210 causes a decrease in testicular TSPO protein and mRNA expression in adult but not adolescent animals. In addition, decreases in TSPO expression appear to occur evenly throughout the testes as indicated by an even autoradiographic spatial distribution pattern. The expression of TSPO as seen in autoradiography is commensurate with the fact that it is primarily expressed in the interstitial space between the seminiferous tubules and is not expressed in the spermatids or sperm . Cannabinoid administration has previously been shown to reduce adult testosterone production and levels  possibly through the inhibition of cholesterol esterase and calcium transport through calcium ATPase [31,32]. Given that TSPO is involved in steroidogenesis and hence androgen production, the finding that TSPO expression is decreased in response to HU210 administration indicates that modulation of TSPO may be another possible mechanism by which cannabinoids alter testosterone production. One hypothesis is that testosterone production decreases in response to cannabinoids due to decreases in TSPO facilitated cholesterol transport across the mitochondrial membranes. Although testosterone levels were not directly measured in the present study, previous studies report alterations in testosterone levels and related functions following similar, if not lower, doses of cannabinoids [30,32,49]. At present the exact physiological effects of reduced TSPO expression in response to HU210 administration is unknown and warrants further study, particularly in regard to potential alterations to spermatogenesis and sperm health [50,51]. A recent study in conditional TSPO knock-out mice casts doubt on the assumption that the TSPO alone is essential for testosterone production in Leydig cells . The regulatory effect of TSPO in testicular tissue may thus be more indirect than currently thought and more closely related to the other roles of the TSPO, such as cell cycle and cell metabolism than steroid biosynthesis per se [53,54].
Unlike adult animals, HU210 did not alter testicular TSPO protein density or distribution, or mRNA levels in adolescent animals. This suggests a decreased vulnerability to cannabinoids or the presence of other adaptive mechanisms. Previous studies using similar doses and treatment regimens of HU210 as the present study have reported alterations in various brain neurotransmitter systems in adult but not adolescent animals [39-42]. The reasons why adolescent animals appear to be less sensitive to cannabinoids, as observed in this study and previous studies, remains unclear. Adolescent animals find cannabinoids less aversive than adults in place and taste aversion tests and emit less vocalisations in response to cannabinoid administration  but cannabinoids have greater long-term behavioural detrimental effects to adolescent animals [36-38]. It is possible that the reduced aversion and sensitivity to cannabinoids results in a greater rate of long-term effects. Similar observations have been reported with alcohol, which have found that during adolescence alcohol may interact with reward neurocircuitry and corticolimbic structure and functions to promote maladaptive behaviours leading to addiction . Physiologically, a failure to regulate biochemical receptor systems, including TSPO expression, could potentially increase the susceptibility of adolescent animals to the long-term detrimental effects of cannabinoids.
HU210 at doses similar to the ones used in the present study, have previously been reported to produce anxiogenic responses in a variety of tests, including the defensive withdrawal test  and the X-maze . Further, HU210 produces a persistent enhancement of emotional responses to novel environments following withdrawal . In animal models, chronic stress such as inescapable shock and swim stress alters TSPO expression in a variety of organs, in particular the kidney [58-60], while in humans, anxiety disorders including generalized anxiety disorder, panic disorder and post-traumatic stress disorder alters TSPO expression in various blood cells including platelets and monocytes [61-63]. To assess whether the anxiogenic properties of HU210 produced changes in TSPO expression similar to that of chronic stress or anxiety disorders, we examined the spleen as it is known to contain a large reservoir of platelets and monocytes [64,65], the kidney and liver tissues. The results reveal no significant changes in TSPO expression following HU210 administration in either adult or adolescent animals in the kidney, spleen or liver. This was particular surprising given the significant decreases in body weight gain, a response normally associated with stress, in HU210 treated adult and adolescent animals . However, HU210 induced weight loss may be accounted for by the activation of the CB1 receptor system which is linked with the regulation of appetite, energy balance and metabolism [67,68]. The published literature and our own data suggest that the tissue-specific transcriptional regulation of TSPO is dependent on the stressor used. Therefore, additional studies are required to clarify the relationship between cannabinoids, anxiety and TSPO expression. In summary, this study demonstrates that chronic administration of HU210 alters TSPO expression in an age-specific manner by reducing adult but not adolescent testicular TSPO expression.
We would like to thank Mathieu Verdurand and Victoria Dalton for their assistance with training and injection of HU210, Emma Millard for her technical assistance with animal dissection and organ collection.
The authors have no conflicts of interest to declare. This research received no specific grant from any funding agency in the public, commercial, or not-for-profit sectors.
