Typical Atrioventricular Nodal Reentrant and Orthodromic Atrioventricular Tachycardias: Electrocardiographic, Electrophysiological Diagnosis and Treatment

Rose Mary Ferreira Lisboa da Silva1* and Leonardo Roever2

1Department of Internal Medicine, Faculty of Medicine, Federal University of Minas Gerais, Brazil

2Department of Clinical Research, Faculty of Medicine, Federal University of Uberlandia, Brazil

*Corresponding Author:
Rose Mary Ferreira Lisboa da Silva
Department of Internal Medicine
Faculty of Medicine
Federal University of Minas Gerais, Brazil
Tel: +553134099746
Fax: +553134099746
E-mail: [email protected]

Received date: April 04, 2016; Accepted date: May 23, 2016; Published date: May 28, 2016

Citation: Lisboa da Silva RMF, Roever L (2016) Typical Atrioventricular Nodal Reentrant and Orthodromic Atrioventricular Tachycardias: Electrocardiographic, Electrophysiological Diagnosis and Treatment. Arrhythm Open Access 1:109. doi:10.4172/atoa.1000109

Copyright: © 2016 Lisboa da Silva RMF, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

Visit for more related articles at Arrhythmia: Open Access

Abstract

Paroxysmal supraventricular tachycardias with narrow QRS are defined as rhythms originating from above the His bundle, heart rate higher 100 bpm and QRS complex of less than 120 ms in adults or less than 90 ms in children. They present a prevalence of up to 8/1000 individuals. The main presentations of these regular tachycardias are atrioventricular nodal re-entrant tachycardia and orthodromic atrioventricular reentrant tachycardia due to an accessory pathway. These tachycardias present morbidity, with symptoms such as palpitations, dyspnea, chest pain, syncope, polyuria, and can be a cause of sudden cardiac death. Thus, their clinical and electrocardiographic diagnoses are the first step in the approach and treatment of the patient. This review will discuss the clinical aspects, electrocardiographic, electrophysiological diagnosis and treatment options in the acute phase and long-term management, in addition to nonpharmacological treatment.

Keywords

Supraventricular tachyarrhythmia; Atrioventricular nodal reentrant tachycardia; Wolff-Parkinson-White syndrome; Accessory pathway; Antiarrhythmic drug; Cardioversion; Catheter ablation

Introduction

The narrow QRS tachycardia is that which originates above the His bundle bifurcation, with QRS complexes of less than 120 ms and heart rate of more than 100 beats per minute (bpm). Its prevalence in the general population is 6 to 8/1000 individuals, reaching 11% to 18% in patients with heart failure [1]. Among children the duration of the QRS of the tachycardia is equal to or less than 90 seconds and heart rate can exceed 200 bpm in newborn infants and higher than 100 bpm (from 130 to 300 bpm) in those over 10 years of age [1,2].

Among the regular narrow QRS tachycardia, the most common is typical atrioventricular (AV) nodal reentrant tachycardia, followed by orthodromic AV tachycardia. Symptoms include palpitations, fatigue, chest pain, light-headedness, neck discomfort, polyuria and presyncope and syncope. Polyuria is due to the natriuretic peptide secreted by the distension of the atria. Syncope can occur between 15% and 20% of patients, due to the high rate of the tachyarrhythmia (≥ 170 bpm). Besides this morbidity, these tachycardias can lead sudden cardiac arrest in 2.2% to 4.5% of patients with accessory pathways [1,3,4].

Precipitating factors may be physical activity, sudden movements, and emotional stress [1,2,5-7]. In newborns and infants, paleness, lethargy, coughing, drowsiness, irritability, appetite loss, vomiting, dyspnea, cyanosis and/or diaphoresis are the symptoms of the tachycardia. Heart failure can occur if the tachycardia remains for 24 to 48 hours without treatment [8].

We searched Embase, Scielo, Europubmed, Cochrane, PubMed and CINAH databases (1990 to march 2016), using the following search strategy: (typical (All Fields) AND atrioventricular (All Fields) AND nodal (All Fields) AND reentrant (All Fields), orthodromic (All Fields) AND atrioventricular (All Fields) AND ("tachycardia"(MeSH Terms) OR "tachycardia"(All Fields) OR "tachycardias"(All Fields))). The purpose of this article is to review the clinical aspects, electrocardiographic diagnosis and treatment options in the acute phase and long-term management, in addition to nonpharmacological treatment.

Typical Atrioventricular Nodal Reentrant Tachycardia

This tachycardia is responsible for 50-60% of tachycardias narrow QRS in adults and 15% of supraventricular tachycardias in pediatric patients, predominantly from adolescence onwards. There is a female predominance, with a ratio of 2:1 or 3:1. Its manifestation occurs mainly during the third or fourth decade of life. At physical examination, “frog sign” (prominent neck pulsations) may be present during tachycardia [1-9].

The hypothesis of nodal reentry has been postulated by Mines in 1913. Goldreyer and others showed the location and the electrophysiological properties of the nodal reentry in humans, resulting in the concept of dissociation of the AV node [9,10]. There are dual AV pathways: the slow pathway (α) which transmits the electric stimuli slowly and has short refractory period, and the fast pathway (β), with long refractory period (Figure 1). The anterosuperiors fibers that make connection between the AV node and the right atrium, near the apex of Koch’s triangle, form the fast pathway. The fibers of the inferoposterior region form the slow pathway (Figure 2) [11]. Up 37% of subjects have dual AV nodal physiology; however only a minority of these develops nodal reentrant tachycardia. Furthermore, incidence of dual AV nodal pathways decreases with ageing [12].

arrhythmia-typical-atrioventricular

Figure 1: Representation of the typical atrioventricular nodal reentrant tachycardia circuit. α: Alpha pathway; β: Beta pathway; AVN: Atrioventricular Node; His: His bundle; ECG: Electrocardiogram; PR: PR Interval; SVT: Supraventricular Tachycardia; P’: Retrograde atrial activation.

arrhythmia-slow-tracks

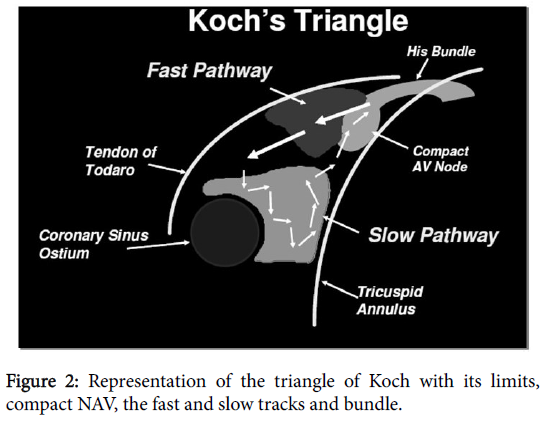

Figure 2: Representation of the triangle of Koch with its limits, compact NAV, the fast and slow tracks and bundle.

Electrical stimulation goes through fast pathway during sinus rhythm. When there is a supraventricular extra systole, the stimulus is conducted by the slow pathway (antegrade conduction) because it reaches earlier AV node. The retrograde conduction occurs over the fast pathway and there is almost simultaneous contraction of the atria and the ventricles. This circuit occurs in 90% of AV nodal reentrant tachycardia (AVNRT); it is the typical form [1,5,7]. Atypical or uncommon nodal reentrant tachycardia includes the fast-slow and slow-slow types and of left origin [1,7].

The refractory period of the slow pathway is shorter in women, resulting in a greater difference between the fast and slow pathway refractory periods. This may explain the higher incidence of tachycardia in women [13].

Electrocardiographic and Electrophysiological Diagnosis

The electrocardiogram shows the presence of retrograde atrial activation (P') as pseudo R wave in V1 (Figure 3) or pseudo S in the inferior leads (D2, D3 and aVF) in about 60% of cases during tachycardia [14]. Although of this criterion have high specificity (91% -100%), it is less sensitive (14% -58%) [15]. The RP’ interval is equal to or less than 70 ms in any derivation in which to its measure. In other cases, retrograde atrial activation will be absent because it coincides with the QRS complex. When the beginning of this tachycardia is recorded, there is the increase in the PR interval. There is the presence of retrograde atrial activation, when visible, at its end. ST segment depression, and variation of the RR interval may occur during tachycardia [3,14,16-18].

arrhythmia-Electrocardiographic-recording

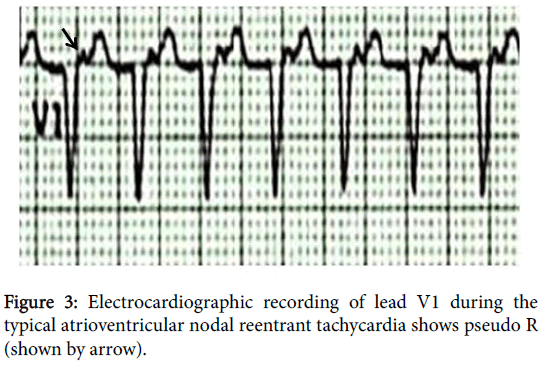

Figure 3: Electrocardiographic recording of lead V1 during the typical atrioventricular nodal reentrant tachycardia shows pseudo R (shown by arrow).

Atrial pacing with extra stimuli at progressively shorter coupling intervals is used for the electrophysiological study for diagnosis of double nodal pathway. There is a prolongation of at least 50 ms at A-H interval (interval between the atrial electrogram and His bundle) in response to the shortening of the coupling interval of the premature atrial stimulus by 10 ms (defined as the 'jump-up' phenomenon). When applying atrial extra stimuli with progressively shorter coupling intervals, there is a gradual increase in A-H interval until reaching the refractory period of fast pathway. From that moment, the conduction through the AV node becomes the slow pathway. After the “jump”, there is atrial echo and the beginning of tachycardia. Ventricular pacing results in induction of atypical AVNRT due to higher refractory period the fast pathway. The stimulus is conducted to the atrium by the slow pathway and it returns to the ventricle by the fast pathway [14,18]. The Table 1 shows the classification of AVNRT types.

Table 1 - Classification of AVNRT types AH/HA VA (His) (ms) Usual  ERAA
Typical AVNRT
Slow–fast >1 <60 His
Atypical AVNRT
Fast–slow <1 >60 CS os/LRAS
Slow–slow >1 >60 CS os/LRAS
AH: Atrial to His interval; HA: His to Atrium interval; VA: interval measured from the onset of ventricular Activation on surface ECG to the earliest deflection of the atrial activation in the His bundle electrogram; ERAA: Earliest Retrograde atrial Activation; CSo:Ostium of the Coronary Sinus. LRAS: Low Right Atrial Septum.

Table 1: Classification of AVNRT types

Treatment

To reversal to sinus rhythm, vagal maneuver can succeed when made at the beginning of tachycardia. Over time, the maneuver is usually not effective due to sympathetic activation [19].

One of the vagal maneuvers is the carotid sinus massage. Its contraindications are presence of carotid bruits or significant stenosis carotid, transient ischemic accident or stroke within the past 3 months [18-20]. The main complications are neurological as dysarthria and visual disturbances and can occur in 1% of cases [21]. Carotid massage should be performed during 5 to 10 seconds and applied to the superior portion of the carotid artery in the neck with the patient in supine position. Both sides must be stimulated sequentially, starting from the right side, which has a higher success rate. Another vagal maneuver consists of applying an ice-cold wet towel to the face. Vagal maneuver with pressure in the eye should not be performed because it is harmful to the patient. The Valsalva maneuver is to increase intrathoracic pressure of 40 mmHg for 15 seconds, by expiring against a closed glottis. The success rate of the Valsalva maneuver is 19-54% and the carotid massage is approximately 25% [21,22].

The modified Valsalva maneuver is performed immediately at the end of the strain with passive elevation to 45 degrees of the legs of the patient for 15 seconds. This maneuver is highly effective, returning more than 40% of patients to sinus rhythm compared with 17% with a standard Valsalva maneuver [23].

If these first-line interventions are not effective, the pharmacological treatment should be done with the intravenous administration of adenosine (class I) or calcium channel blocker of the phenylalkylamine (Table 2) [1,19,20,24].

Class of recommendation Intervention Success rate
I Carotid sinus massage 25%
I Valsalvamaneuver 19-54%
I Adenosine 0.1–0.2 mg/kg 78-96%
IIa Verapamil (5-10 mg IV during 2 min) or diltiazem (0.25 mg/kg IV 2 min) 64-98%

Table 2: Approach to treatment of narrow QRS tachycardia in the acute phase.

Adenosine is a nucleotide with negative chronotropic and dromotropic properties with short half-life of about 10 seconds. It acts by increasing the driving of potassium channels, resulting in cell hyperpolarization and consequent reduction of electrical conduction. Another effect is the decrease of the calcium influx due to antagonism to catecholamines. It must administered as a 0.1–0.2 mg/kg per bolus (usual maximum dose 12 mg) given via a central sheath or catheter and followed by a 10 cc (cubic centimeter or milliliter) saline flush [1,19,24]. A lower dose (3 mg) is recommended in persons who have a cardiac transplant [20]. Adverse effects occur in about 40% of cases, such as dyspnea, chest pain and some rhythm disturbances (asystole, bradycardia, extrasystoles, atrial fibrillation). These effects are transient; thus, the administration of adenosine is safe. The effect of the drug occurs within 15 to 30 seconds, with success reversal of 78-96%. Contraindications to the use of adenosine include bronchospasm (reactive airway disease), concomitant use of dipyridamole (which inhibits adenosine metabolism) or xanthine (which is an antagonist of adenosine receptors), 2nd degree AV block or higher, sinus node dysfunction, concomitant use of verapamil and digoxin [1,19,20,24].

Intravenous verapamil or diltiazem are class IIa for the reversal of tachycardia with success of 64-98% [1,18,19,24]. For children under the age of 1 year, patients at risk of bradyarrhythmias or with hypotension or systolic dysfunction, these drugs should not be given. Another option for reversal (Class IIa) is beta-blocker intravenously [24]. Electrical synchronized cardioversion is indicated for patients with hemodynamic instability or if there was ineffectiveness of drugs [24].

For treatment in the chronic phase, catheter ablation (radiofrequency or cryoablation) is class I recommendation [24]. Its immediate success rate is 96-98%, with risk AV block of 1.0-1.5% and late recurrence from 3% to 7% [19,24,25]. Among patients with AVNRT undergoing successfully ablation of the slow pathway, atrial fibrillation recurs in up to one third of them despite the decreased incidence of atrial fibrillation in patients with both arrhythmias. P wave dispersion measured by 12-lead electrocardiogram was an independent predictor of atrial fibrillation recurrence after ablation in patients with AVNRT and paroxysmal atrial fibrillation [26].

For patients who are not candidates for ablation, options of drugs are oral beta-blockers, diltiazem or verapamil [19,24]. Flecainide or propafenone are class IIa and sotalol, dofetilide and amiodarone are class IIb recommendation of drugs [24].

Orthodromic Atrioventricular Tachycardia

This tachycardia is the second most common among regular narrow QRS tachycardia in adults [1,7]. Among children and adolescents, it is responsible for 70-90% of narrow QRS tachycardias. Its prevalence is up to 0.5% and it is more frequent in those male with a mean age of 23 years [1,2,5-8]. This tachycardia is one of the signs of the Wolff- Parkinson-White syndrome described in 1930. There is abnormal pathway between atria and ventricle. The incidence of accessory pathways is 0.1 to 3.1/1000 individuals, reaching 3.4% if familial incidence [14]. The preexcitation detected by the presence of delta wave on the electrocardiogram occurs between 0.15 to 0.28% in the population. However, its disappearance is observed in 22.5% of children during the follow up of 10 years. There is an association with congenital anomalies in 9-32% of cases, as the disease Ebstein, atrial and interventricular septal defects, tetralogy of Fallot, and with hypertrophic cardiomyopathy [1,2,5-8,14,27,28].

The incidence of sudden cardiac death in patients with accessory pathway is between 0.15 to 0.39%, reaching 3% to 4% in symptomatic young [1,7]. However, this can be the first demonstration in 48% of patients. The markers of risk for sudden cardiac death are presence of symptomatic tachycardia, Ebstein's disease, presence of multiple accessory pathways and RR interval less than 250 ms during preexcited atrial fibrillation [1,14,27-31].

The accessory pathways make the connection between the ventricular and atrial myocardium on the right or left side of heart, or with specialized cardiac conduction system [7,14,27,28]. Thus, there is earlier ventricular activation, with initial slurring of the upstroke of the QRS complex (delta wave) and short PR interval in classic electrocardiogram [1,14,27,28]. The most common location of these accessory pathways is left free wall (more than 50%), followed by posteroseptal region (20% to 30%), right free wall (10% to 20%) and septal region (5% to 10%) [7]. Among 2-20% of the pediatric population, accessory pathways can be multiple [7,32,33].

According to its driving property, accessory pathway is classified as manifest or concealed. Manifest accessory pathway drives electrical stimulus in antegrade conduction, i.e., from the atrium to the ventricle, with delta wave in sinus rhythm. The concealed bypass tract drives electrical stimulus only in retrograde conduction and it is present in almost half of patients with accessory pathway. However, only 5% of accessory pathways display exclusive retrograde conduction. Thus, orthodromic tachycardia occurs in approximately 95% of patients, with anterograde conduction of electrical stimulation over the AV node, and retrograde conduction over the accessory pathway. From 5% to 10% of patients with this syndrome can present antidromic tachycardia (wide QRS tachycardia), with reentry to the reverse sequence of electrical stimuli driving [14]. There are other rare types of tachycardia driven by an accessory pathway, such as Coumel tachycardia and Mahaim fiber-related tachycardia [14,27,28].

Electrocardiographic and electrophysiological diagnosis

In sinus rhythm, electrocardiographic signals are delta wave (initial slurring of the upstroke of the QRS complex), short PR interval, when the accessory pathway is manifest, and ventricular repolarization abnormalities may be present (Figure 4) [1,14,27,28]. The polarity of the delta wave allows identifying the location of an accessory pathway through its vectorial orientation and morphology, R/S wave ratio and QRS polarity [34,35]. The preexcitation with the presence of delta wave on the electrocardiogram can be intermittent (on the same tracing there are QRS complexes with and without delta wave) due to higher refractory period of the accessory pathway. The preexcitation may be inapparent or latent, if delta wave is visible only during maneuvers or use of drugs that reduce the conduction of electrical stimuli through AV node, allowing antegrade conduction of stimuli over accessory pathway in sinus rhythm [7,14,27]. The accessory pathway is termed concealed if there is no delta wave on the electrocardiogram and its presence is documented by tachycardia or by the recording of cardiac electrograms during electrophysiological study [5,7,14,27,28].

arrhythmia-sinus-rhythm

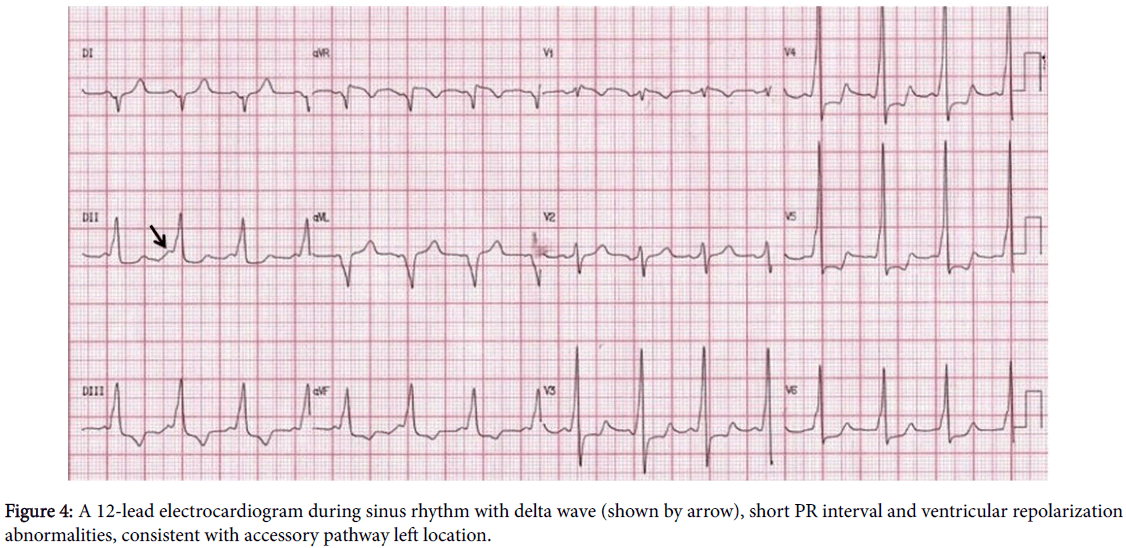

Figure 4: A 12-lead electrocardiogram during sinus rhythm with delta wave (shown by arrow), short PR interval and ventricular repolarization abnormalities, consistent with accessory pathway left location.

Orthodromic AV reentrant tachycardia is a narrow QRS tachycardia and RP’ interval < PR interval with a slowly conducting accessory pathway, and RP’ interval is greater than or equal to 70 ms (Figure 5) [1]. The polarity of retrograde atrial conduction (P ') also allows the location of the accessory pathway.

arrhythmia-reentrant-tachycardia

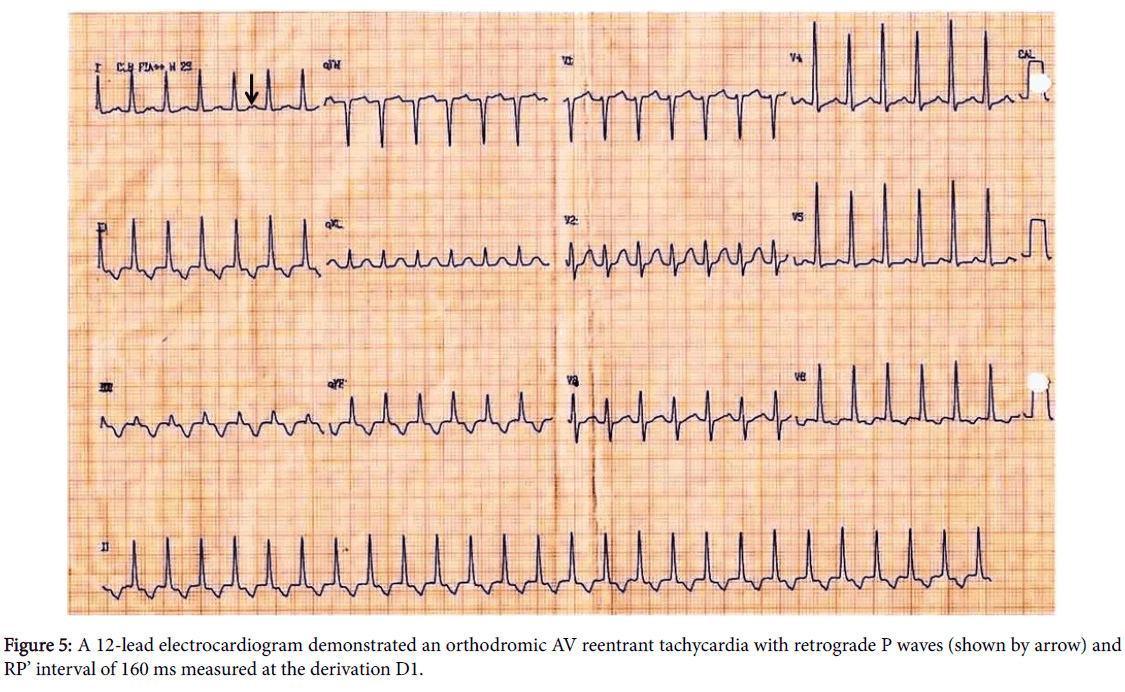

Figure 5: A 12-lead electrocardiogram demonstrated an orthodromic AV reentrant tachycardia with retrograde P waves (shown by arrow) and RP’ interval of 160 ms measured at the derivation D1.

The electrophysiological study is important for the differential diagnosis between AVNRT and AV tachycardia due to a concealed accessory pathway [14,15]. If there is preexcitation with delta wave, the interval measured from delta wave to His electrogram is negative, i.e., the delta wave begins prior to activation of the His bundle during sinus rhythm. Orthodromic tachycardia is triggered by spontaneous or stimulated atrial premature depolarization or ventricular extrastimulus. There is anterograde block in patients with concealed accessory pathway different from those with manifest accessory pathway. The retrograde P wave is not fused with the QRS or negative during tachycardia and the retrograde activation is eccentric, the opposite of what occurs in the circuit in AVNRT. The mapping with intracardiac catheters during tachycardia or ventricular pacing allows the location of the accessory pathway through the earliest retrograde atrial activation [14].

Treatment

Treatment of acute phase and long-term management are the same as described above regarding the AV nodal reentrant tachycardia [1,19,20,24]. Catheter ablation is class I recommendation in patients symptomatic, with success rate of 92-98% for a single accessory pathway and recurrence from 2% to 11%. The success rate is lower for ablation of accessory pathways on the right and the septum and its recurrence is more frequent. The ablation complications are rare (3% of cases), such as perforation infarction, valvular lesions, coronary artery lesions, AV block, embolism and vascular complications. AV block occurs most commonly in ablation of anteroseptal or mid septal pathway [25,27].

Ablation in patients with preexcitation and asymptomatic is controversial. A systematic review showed that asymptomatic patients with accessory pathway that did not undergo ablation showed ventricular arrhythmias in 9% of cases and ventricular fibrillation in 2% of cases during follow-up [31]. Risk stratification with exercise testing or Holter is Class I recommendation [24]. Abrupt loss of delta wave during exercise or the presence of intermittent accessory pathway is indicative of low risk. Short refractory period of the accessory pathway is a predictor of severe arrhythmic events [36]. Thus, the electrophysiological study is recommended (Class IIa) for asymptomatic patients and ablation should be considered in the same procedure, according to risk stratification [24,31].

Conclusion

The most common narrow regular QRS complex tachycardias are typical atrioventricular nodal reentrant tachycardia and orthodromic atrioventricular tachycardia. The clinical presentation of these tachycardias practically does not differ from each other. The electrocardiographic diagnosis is crucial to the knowledge of its mechanism, despite similar treatment in the acute phase. Stratification of risk through non-invasive and invasive tests is important, since the incidence of sudden cardiac arrest is up to 4.5% in the Wolff-Parkinson-White syndrome. Catheter ablation is already well established. Cryoablation is an alternative energy which can reduce the risk of AV block, especially in children and adolescents.
