Unexpected Spin-flipping in High Magnetic Nano-Fe3O4

Tun Seng Herng*
Department of Materials Science and Engineering, National University of Singapore, Singapore
*Corresponding Author: Tun Seng Herng, Researcher, Department of Materials Science and Engineering, National University of Singapore, Singapore, Tel: 6516-8782, Email: msehts@nus.edu.sg

Received: 26-Nov-2017 / Accepted Date: 24-Dec-2017 / Published Date: 31-Dec-2017

Abstract

The search for high resistive soft magnet that coexists of a giant magnetization (>1 T) and high resistivity in a single compound has been intense in recent a year, which is driven by the strong industrial demand for new high-permeability thin films with GHz operating frequencies. One of crucial criterion in this new high resistive soft magnet is the necessity of achieving a higher resistivity than conventional metallic magnets, to limit eddy current screening, while maintaining the high permeability and high saturated magnetization of materials. Among the soft magnetic materials, magnetite (Fe3O4) is particular fascinating owing to its superior magnetic properties (halfmetallic behaviour and high curie temperature of ~860 K) and it has higher resistivity as compared to metallic iron. Moreover, the earlier experimental have demonstrated magnetization enhancement in FePt and Fe3O4 nanocomposite magnets by nanoparticle self-assembly. These intriguing properties of Fe3O4 have stimulated us to study this materials system intensively.

Keywords: Magnetization

Introduction

The search for high resistive soft magnet that coexists of a giant magnetization (>1 T) and high resistivity in a single compound has been intense in recent a year, which is driven by the strong industrial demand for new high-permeability thin films with GHz operating frequencies. One of crucial criterion in this new high resistive soft magnet is the necessity of achieving a higher resistivity than conventional metallic magnets, to limit eddy current screening, while maintaining the high permeability and high saturated magnetization of materials. Among the soft magnetic materials, magnetite (Fe3O4) is particular fascinating owing to its superior magnetic properties (halfmetallic behaviour and high curie temperature of ~860 K) and it has higher resistivity as compared to metallic iron. Moreover, the earlier experimental have demonstrated magnetization enhancement in FePt and Fe3O4 nanocomposite magnets by nanoparticle self-assembly. These intriguing properties of Fe3O4 have stimulated us to study this materials system intensively [1,2]. Herng et al. [3] developed the high magnetic and low loss Fe3O4 nanomagnet via a stoichiometry breaking and nano-crystals self-assembly techniques in Figure 1.

materials-science-Kilture-Preparatory

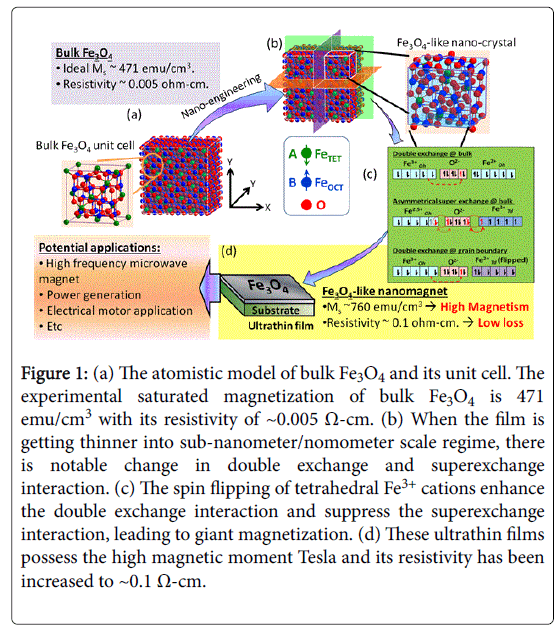

Figure 1: (a) The atomistic model of bulk Fe3O4 and its unit cell. The experimental saturated magnetization of bulk Fe3O4 is 471 emu/cm3 with its resistivity of ~0.005 Ω-cm. (b) When the film is getting thinner into sub-nanometer/nomometer scale regime, there is notable change in double exchange and superexchange interaction. (c) The spin flipping of tetrahedral Fe3+ cations enhance the double exchange interaction and suppress the superexchange interaction, leading to giant magnetization. (d) These ultrathin films possess the high magnetic moment Tesla and its resistivity has been increased to ~0.1 Ω-cm.

Figure 1 shows the route to achieve giant magnetization and low loss Fe3O4 nanomagnet/ultrathin film via the nano-engineering and self-assembly techniques. Originally, bulk magnetite (Fe3O4) has inverted cubic spinel structure (Figure 1a) with tetrahedral A sites occupied by Fe3+ cations, whereas octahedral B sites are randomly occupied by Fe2+ and Fe3+ cations with equal concentrations at room temperature with metallic behaviour. The spin of Fe3+ cations at octahedral and tetrahedral sites are aligned antiparallel to each other leading to a net magnetic moment ~471 emu/cm3 experimentally. The typical resistivity of bulk Fe3O4 is ~0.005 Ω-cm. In conventional understandings of Fe3O4 magnetism, it is understood that octahedral Fe2+ and Fe3+ are ferromagnetically coupled through double-exchange. In contrast, the Fe3+ ions in tetrahedral and octahedral sites are antiferromagnetically coupled through super-exchange and their moments of 5μB cancel each other out. Thus, this leads to magnetic moment of 4μB per Fe3O4 formula unit, which solely comes from octahedral-Fe2+ [4-8].

The continuous thickness reduction into nanometer regime has changed the materials properties tremendously. When the film turns into a nanometre scale regime, there is spin-flipping of valence spin tetrahedral Fe3+ in the sub-nanostructured Fe3O4 film yielding to the high magnetization. Using soft X-ray magnetic circular dichroism (XMCD) and soft X-ray absorption (XAS) both at Fe L3,2- and O Kedge supported by first-principle and charge-transfer multiple calculations, Herng et al. [3] observed anomalous enhancement of double-exchange accompanied with a suppression of super-exchange interactions due to the spin-flipping mechanism via oxygen at grain boundaries in ultrathin Fe3O4 films.

These nano-crystals will be self-assembled to form the ultrathin film via various growth techniques. The experimental results showed that these ultrathin films possessed the magnetic moment ~760 emu/cm3 with its resistivity ~0.1 Ω-cm. Recently, there are number of reports on the unexpected giant magnetism (>800 emu/cm2) in ultrathin (<5 nm) Fe3O4 films, which are distinct from those of classical bulk Fe3O4 [4,9-11].

To address these bewildering issues, giant magnetization Fe3O4 films of 760 emu/cm3 and regular Fe3O4 (reference sample) were prepared and examined using soft X-ray magnetic circular dichroism (SXMCD) and X-ray absorption spectroscopy (XAS) at Fe L3,2- edge and O K-edge. Supported by charge-transfer multiplet and firstprinciples calculations, Herng et al. [3] revealed that the magnetization enhancement is due to spin-flipping of valence spins in tetrahedral- Fe3+, assisted by oxygen vacancies at grain boundaries.

Series of Fe3O4 films with various grain sizes, from ~2.5 to ~17 nm, was grown on glass substrates by pulsed laser deposition (PLD) technique. The films were prepared on glass substrate because lattice mismatch between glass andFe3O4 is favourable for formation of small grain size (higher density of grain boundaries). Grain sizes were determined by high resolution transmission electron microscope (HRTEM) measurements. The film with an average size of 2.5 nm (black loop) exhibited a typical saturation magnetization (Ms) of ~760 emu/cm3, which is far higher than the value of usual bulk Fe3O4, ~471 emu/cm3. With increasing grain size, the Ms reduced and Ms reached a typical Ms of ~390 emu/cm3 for the film with grain size of 15 nm (Figure 1b). All films exhibited Verwey transition temperature (TV), which is a characteristic of Fe3O4. The TV for 2.5 nm (15 nm) grainsized film was ~105 K (~114 K), which is around the bulk value of 120 K. These abservations confimed that films exhibited the Fe3O4 charactiristics [4-6].

The XAS and SXMCD revealed that the origin of high magnetization in these films was attributed to the spin flipping of tetrahedral Fe3+ cations (~25%) at Fe3O4 grain boundary via oxygen, enhancing the overall double-exchange and suppressing the superexchange interactions. The first-principles calculations successfully explained the experimental data by demonstrating spontaneous spinflipping of tetrahedral-Fe at (001)-TdOh-GB and also appearance of spin moment in nearby oxygen.

This discovery of spin-manipulated magnetism in Fe3O4 nanostructure that is large, controllable and stable at room temperature presents new opportunities for fundamental studies of carrier–dopant magnetic exchange interactions in various doped- Fe3O4 (or ferrite) material systems. Furthermore, this work may raise possibilities for the development of controllable spin-based information technologies from Fe3O4-based or ferrite-based compounds.

References

  1. Katsnelson MI, Irkhin VY, Chioncel L, Lichtenstein AI, Groot RAD (2008) Half-metallic ferromagnets: From band structure to many-body effects. Rev Mod Phys 80: 315.
  2. Zeng H, Li J, Liu JP, Wang ZL, Sun S (2002) Exchange coupled nanocomposite magnets by nanoparticle self assembly. Nature 420: 395.
  3. Herng TS, Xiao W, Poh SM, He F, Sutarto R, et al. (2015) Achieving a high magnetization in subnanostructured magnetite films by spin-flipping of tetrahedral Fe3+ cations. Nano Res 8: 2935.
  4. Walz F (2002) The Verwey transition-a topical review. J Phys: Condens Matter 14: R285.
  5. Goering E, Gold S, Lafkioti M, Schütz G, Brabers VAM (2005) Oxygen K-edge shift at the Verwey transition of magnetite. Phys Rev B 72: 033112.
  6. Verwey EJW (1939) Electronic conduction of magnetite (Fe3O4) and its transition point at low temperatures. Nature 144: 327.
  7. Senn MS, Wright JP, Attfield JP (2012) Charge order and three site distortions in the Verwey structure of magnetite. Nature 481: 173.
  8. Huang DJ, Chang CF, Jeng HT, Guo GY, Lin HJ, et al. (2004) Spin and orbital magnetic moments of Fe3O4. Phys Rev Lett 93: 077204.
  9. Arora SK, Wu HC, Choudhary RJ, Shvets IV, Mryasov ON, et al. (2008) Giant magnetic moment in epitaxial Fe3O4 thin films on MgO(100). Phys Rev B 77: 134443.
  10. Orna J, Algarabel PA, Morellón L, Pardo JA, Teresa JMD, et al. (2010) Origin of the giant magnetic moment in epitaxial thin films. Phys Rev B 81: 144420.
  11. Arora SK, Wu HC, Yao HZ, Ching WY, Choudhary RJ et al. (2008) Magnetic properties of ultrathin magnetite films grown by molecular beam epitaxy. IEEE Trans Magn 44: 2628.
