Performance of Composite Fecal Sludge-Biofuel in Improved Cook Stoves

John Irungu1, Daudi Nyaanga2, Reinilde Eppinga1 and Kabok P Aguko3*
1Nakuru Water and Sanitation Services Company, Kenya
2Agricultural Engineering, Egerton University, Kenya
3Jaramogi Oginga Odinga University of Science and Technology, Kenya
*Corresponding Author: Kabok P Aguko, Jaramogi Oginga Odinga University of Science and Technology, Kisumu, Kenya, Email: kabpaguko@yahoo.com

Received: 31-Jul-2018 / Accepted Date: 28-Sep-2018 / Published Date: 05-Oct-2018 DOI: 10.4172/2573-458X.1000161

Keywords: Briquettes; Performance; Cook stoves; Adaptability; Water boiling test

Introduction

There has been a quest to develop efficient, environmental friendly, safe and sustainable energy technology methods (cook stoves) together with alternative biomass fuels using locally available materials. The Nakuru Water and Sanitation Services Company (NAWASSCO) and partners implement the Nakuru County Sanitation Programme (NCSP) [1] and developed the innovative FssDbb using sludge obtained from septic tanks, pit latrines and combined with sawdust from within the township. Technologies testing have been one of the crucial activities for the performance indicators of the alternative biomass fuels and cook stoves. The study is a follow-up on the briquette product (FssDbb) development (design) process and aims at testing the performance with different types of cook stoves for house hold use. The fuel briquettes are designed and intended for both household and institutional use. After briquette development [2,3], the water boiling test was carried out using Kenya Ceramic Jiko (KCJ), Jiko Koa and Envirofit super at the University of Nairobi laboratories using the WBT as outlined in the International Workshop Agreement (IWA) framework for cook stove testing. The test is in response to a number of developed cook stoves and improved biomass fuels that call for testing their efficiency and efficacy.

A high percentage of households in developing countries use biomass fuel such as charcoal and firewood as their main source of household energy. Past studies [4] have linked traditional methods of consumption of biomass fuel, for example cooking with firewood and charcoal; with low efficiency, negative environmental consequences, including high rate of desertification due to cutting of trees, and increase in carbon emissions. NCSP conducted a market study in the Nakuru town area both by qualitative (focus groups discussions) and quantitative (Akvo Flow survey tool) methods. This was to determine the market size and the suitability of the fecal sludge related biofuel products for the Kenyan market.

Methodology

Briquette production

The briquettes were made using fecal matter, sawdust, and charcoal dust (FssDbb) at a ratio of 1:1:2 and 5% molasses as a binding agent. The blend was chosen after a previous NCSP research where several tests were performed on raw materials and with different binding agents. The bio-fuel products were made using carbonized raw materials (sludge, sawdust and charcoal dust), produced by using improved drum kilns, agglomeration with a rotating drum and the output spherical fireballs were open air dried [2,3]. The briquette making process is as shown in Figure 1.

environment-pollution-climate-change-production

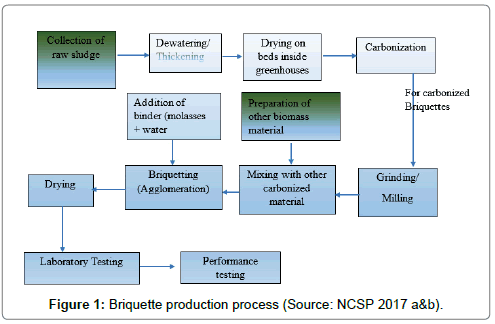

Figure 1: Briquette production process (Source: NCSP 2017 a&b).

Selection of cook stoves

The FssDbb performance was tested by applying the standardized WBT using three commonly used varieties of cook stoves in Kenya to provide a basis for comparison of the new fuel relative to the existing fuels. The tests were guided by the international organization for standardization (ISO) framework for testing cookstoves based on four specific parameters; efficiency, indoor emissions, total emissions and safety. The frame work provides for categorization of cook stoves into five tiers (0-4), where tier 0 is the lowest and tier 4 with the highest performance [5]. The commonly used cook stoves for the target test market (households within Nakuru County), were selected with the following details:

KCJ: Is a commonly used Jiko within Nakuru County. In a previous study [6] it was identified to have a good rating in thermal efficiency with low fuel consumption especially in the low power phase (long duration cooking) when different types of cook stoves were compared. It is thus the most preferred cook stove in a majority of low income households in urban and peri-urban areas in Kenya.

Jiko koa: The cook stove is an industry produced standard model with no variation and is an improved cookstove which is second in penetration in the Kenyan market.

Envirofit super: Is a cook stove on the list of emerging improved technologies.

Water boiling test

The WBT tests were undertaken at the University of Nairobi laboratory and repeated three times as in the standardized protocol. The tests were done for efficiency and emission of cook stoves in a controlled laboratory setting that consisted of three phases; Phase 1 (High power- Cold start), Phase 2 (high power-Hot start) and Phase 3 (Low power- Simmering). The FssDbb were used as fuel for the three categories of cook stoves. The parameters determined included emission of carbon dioxide (CO2), carbon monoxide (CO), time to boil, burning rate, thermal efficiency, specific fuel consumption, fuel consumption and amount of particulate matter as in the following subsections.

Performance and efficiency testing

The performance testing encompassed time to boil, specific fuel consumption (sfc), thermal efficiency and burning rate as is described in the (WBT) with brief definitions as below:

Time to boil: is the time (t) in minutes taken to bring water to boil.

Specific fuel consumption: Is the amount of solid fuel equivalent used in achieving a defined task divided by the weight of the task, that is, the amount of fuel needed to boil 1 kg or 1 liter of water when starting from a cold cook stove and also is applicable in the other phases, expressed as:

equation

Fuel consumption: Is the amount of fuel in grams that is consumed in bringing the water to boil and is calculated by subtracting weight of dry fuel after water boils from the dry weight of fuel before ignition.

Thermal efficiency: Is the extent to which a cook stove transfer’s heat to the pot when cooking or the portion of heat utilized in directly heating the cooking pot until water reaches boiling point. The remaining portion of heat is lost to the surrounding environment and is represented by the following formula:

equation

Where: Energy required to boil water (EH2O,Heat) equals to mass of water (MH2O) multiplied by specific heat capacity (Cp) and by change in temperature (Δt) given in equation

equation

Cp, is estimated at 4.186 KJ/KgK

Where; Wvc is mass of water evaporated and equation

Energy released is equal to mass of fuel (M) used multiplied by heating value (HV)

equation

Burning rate: Is the weight of fuel consumed (Fcd) divided by the time (Δtc) taken to boil the water or the consumption of fuel when water is brought to the boiling point.

equation

Specific fuel consumption (SCcold): Is the amount of fuel that is needed to produce 1 unit of output. In this case output is boiled water. In the high power cold starting the specific fuel consumption is the amount of fuel that is needed to boil 1 kg or 1 liter of water when starting from a cold cookstove. The same formula is used in the high power hot star calculated as:

equation

Fuel consumption: Is the amount of fuel in grams that is consumed in bringing the water to boil. It is calculated by subtracting weight of dry fuel after water boils from the dry weight of fuel before ignition.

equation

Emission testing

Involved measurement of concentration and composition of Carbon Monoxide (CO), Carbon Dioxide (CO2) as well as Particulate Matter or generally the emissions form the exhaust fumes. Emission testing is part of WBT protocol version 4.2.3.

Exhaust carbon concentration (CO2 and CO): Includes the carbon atoms in Carbon Dioxide (CO2), Carbon Monoxide (CO) and carbon content in particulate matter (PM). The measure determines the carbon atoms in the cook stove exhaust fumes as;

equation

A molecule of Carbon Dioxide or Carbon Monoxide contains 1 atom and are determined respectively by the following formulae

equation

Particulate matter: In exhaust fumes is calculated by equation 10 and is assumed to contain 80 percent carbon, based on WBT.

equation

Findings and Discussions

The results of an average of WBT laboratory tests for the three phases are outlined in sections 3.1 to 3.3 consisting of tables and figures for results illustrations.

Phase 1-cold start

The findings for phase 1 tests are as shown in Table 1. Based on Table 1 and Figure 2a; Cook stove A, was only best in burning rate and equivalent to C. Cook stove B; was best in time to boil, CO, CO2, and particulate matter. Cook stove C, was best on thermal efficiency, specific fuel consumption and fuel consumption. Overall as in Figure 2b; the performance of Cook stove B was the best based on its low emission except for time to boil, burning rate, specific fuel consumption, thermal efficiency and fuel consumption. Cook stove A was second best in performance for two of the emission parameters while C was best on CO as a parameter though almost comparable to A and highest volume of carbon dioxide and particulate matter. Cook stove B would then be selected based on emissions as A and C were better in thermal efficiency in the range of 20%-50%.

environment-pollution-climate-change-performance

Figure 2a: Fuel performance during cold start.

environment-pollution-climate-change-testing

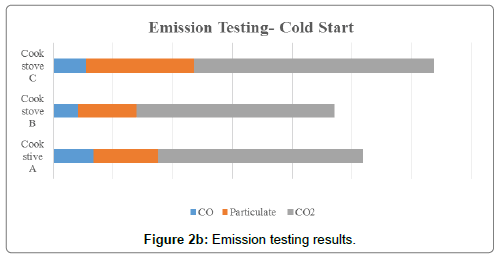

Figure 2b: Emission testing results.

Parameters Units Cook Stoves
A B C
Time to boil Min 31 15 20
Burning rate g/min 8 14 8
Thermal efficiency % 19 16 24
Specific fuel consumption g/liter 110 86 71
Fuel consumption g 270 217 180
CO Ppm 67 41 55
Particulate µg/m3 108 98 180
CO2 Ppm 344 331 402

Table 1: Briquettes performance in Phase 1-Cold start.

Phase 2-hot start

The findings for phase 2 tests are as shown in Figure 3a and Table 2 that shows the performance of the cook stoves in the high power, hot-start phase. Cook stove A was outperformed by the other cook stoves in regard to time taken to boil, thermal efficiency and high fuel consumption. Cook stove B was rated second in all the parameters but comparable to C on emission parameters. Overall, Cook stove C outperformed the other cook stoves in all aspects during the high power hot start phase. The good performance was notable in low burning rate, high thermal efficiency, and low fuel consumption. Statistically B and C would be in the same range.

environment-pollution-climate-change-hot-start

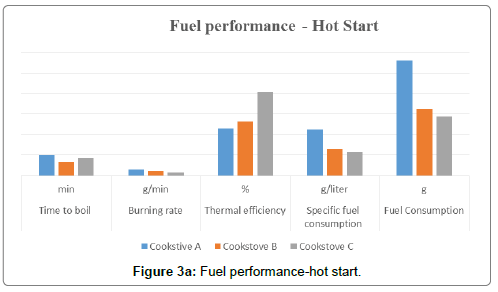

Figure 3a: Fuel performance-hot start.

Parameters Units Cook stove A Cook stove B Cook stove C
Time to boil Min 20 13 17
Burning rate g/min 6 5 3
Thermal efficiency % 46 53 81
Specific fuel consumption g/liter 45 26 23
Fuel consumption g 112 65 58
CO Ppm 54 42 25
Particulate µg/m3 34 46 47
CO2 Ppm 336 333 326

Table 2: Briquettes performances in phase 2-Hot start.

Figure 3b shows the results of emission tests for the three cook stoves. Cook stove A produced the highest amount of carbon monoxide and carbon dioxide followed by Cook stove B. This is unlike Cook stove C whose performance was best in CO and CO2 emissions and highest in Particulate Matter. It was comparatively better in the hot-start phase for both fuel performance and emissions.

environment-pollution-climate-change-results

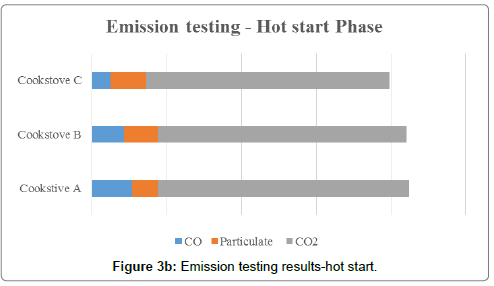

Figure 3b: Emission testing results-hot start.

Phase 3-simmering

The findings for phase 3 tests are as shown in the Table 3 and Figure 4a below that shows the results for fuel performance in the low-power simmer phase. The time to boil and burning rate were similar for the three cook stoves. However, the performance of B was second to C in most cases except in thermal efficiency and CO2. Notably, Cook stove C outperformed all except on Particulate Matter.

environment-pollution-climate-change-simmering

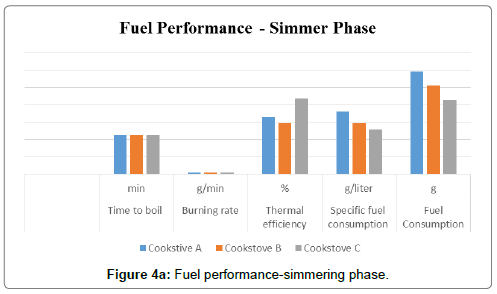

Figure 4a: Fuel performance-simmering phase.

Parameters Units Cookstove A Cookstove B Cookstove C
Time to boil Min 45 45 45
Burning rate g/min 2 2 2
Thermal efficiency % 66 59 87
Specific fuel consumption g/liter 72 59 51
Fuel Consumption g 118 102 86
CO Ppm 47 44 25
Particulate µg/m3 19 32 46
CO2 Ppm 206 229 194

Table 3: Briquettes Performances in Phase 3-Simmering.

Figure 4b is the results of emission testing in the simmer phase. Cook stove A produced the highest amount of carbon monoxide and the reverse was true for Particulate Matter emission. Overall, Cook stove C outperformed the other two in this phase and Cook stove B and A shared equal second position in different parameters. Cook stove B had the highest emission in CO2. Though Cook stove C was better in all parameter performance, Cook stove A and B showed mixed results.

environment-pollution-climate-change-phase

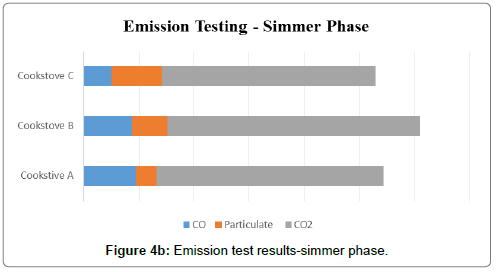

Figure 4b: Emission test results-simmer phase.

Table 4 and Figure 5 are given to illustrate and compare the physical performance of lump charcoal (original charcoal that is made by burning logs of wood) and the FssDbb that was tested in the above results and discussions. The charcoal results are from a prior University of Nairobi laboratory test. The variation in the results may be attributed to preparation before testing, the machine for briquetting and the equipment for the testing. It can be noted that specific fuel consumption, CO2 and CO are within the recommended standards as in Table 4 of the identified reference standards. Time to boil and Particulate Matter are above the range specified. The density and ash content were not within limits but the rest of the physical quantities (moisture content, volatile matter, fixed carbon, and caloric value) met the standards in Table 4 for the faecal sludge.

environment-pollution-climate-change-charcoal

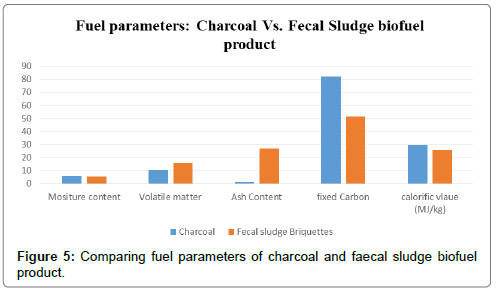

Figure 5: Comparing fuel parameters of charcoal and faecal sludge biofuel product.

Briquette Characteristics Charcoal Source : University of Nairobi Lab Fecal sludge Briquettes Standard Values
Moisture Content 6.2 5.49 <12%
Density - - 1000-1400 kg/m3
Ash Content 1 26.7 0.70%
Volatile Matter 10.6 15.9 35%
Fixed Carbon 82.1 51.3 58.13%
Calorific Value 29.8 25.93 17.5 MJ/kg
Specific Fuel Consumption - as above 228 g/l
Burning Time - as above 14.94 min
Carbon dioxide - as above 5000 ppm
Carbon monoxide - as above 50-200 ppm
Particulate Matter - as above 25 mg/m3

Table 4: Reference standards.

Marketing of Faecal Biomass Fuel

Charcoal is confirmed the main type of fuel used by a majority of households in Kenya and is followed by kerosene and natural gas [7-11]. A market study [1,6] was conducted to establish customer views and attitudes on faecal briquettes and fuel pellets (362 households and 238 businesses/institutions). Perception towards the product was expected to be adverse but households were found to respond positively towards faecal matter briquettes. This was influenced by household assurance on safety of the product through understanding of the production process. Consumer education is thus recommended before introducing the products.

In addition, research should be carried out on stoves to optimise performance of briquettes and marketing [1,6]. It was further noted that there is a tendency for switching of fuels in households with charcoal as the immediate alternative fuel in peri urban areas. Natural gas is ranked top followed by firewood, kerosene and charcoal. The study showed that eighty% of the population were positive about using briquettes made from different biomass wastes including human waste and were more appealing among low-income households. The level of satisfaction with a particular type of fuel is based mostly on factors such as performance, cost and cleanliness (user friendliness). Smoke emission becomes a major cause of dissatisfaction.

Likewise, majority of household’s choice of equipment is driven by cost, efficiency and level of smoke emission. The preferred technology for most households was Kenya Ceramic Jiko (KCJ) with Jiko Koa being perceived as efficient although more expensive. To fuel vendors, cost would be a crucial factor as market awareness of alternative fuel (mainly biomass briquettes) was also noted as good. On average, households spend approximately Ksh. 1,323 on purchase of equipment and use approximately Ksh. 1,110 on fuel per month. Consumers proposed packaging in small quantities of 2 kg or 5 kg packets [1,6 and pricing of briquettes to be less than half a dollar per 1 kg.

WBT showed that faecal matter briquettes burnt longer than charcoal and had less emissions and majority of the household’s cook in confined places that are without defined kitchen space thus prone to indoor pollution [12]. Briquettes were positively received more than pellets due its compatibility with their fuel equipment and cost efficiency. The households indicated preference to purchase the fuel but this was dependent on household’s income.

Conclusion

Briquettes made from a combination of carbonized feacal matter (25%) and sawdust (25%) and charcoal dust (50%) were found to feasible with both Jiko Koa and KCJ cookstoves and are the most common types in the market. The performance of cook stove type A when using fecal sludge biofuel product lagged behind B and C in all the Phases of the WBT tests. The performance of the fuel in the three cookstoves improved from high power phase to Low power phase. Cook stove C was best in all the phases considering the thermal efficiency, specific fuel consumption and fuel consumption. This makes the fuel suitable for cooking food that takes less time to cook as well as for those that takes relatively long time to prepare. Overall Cook stove B was performed better in phase 2. Low briquettes consumption indicated that the fecal matter briquettes are an efficient form of fuel. Burning rate and fuel consumption indicates that the fecal sludge - sawdust briquettes burn for a long period of time which makes the fuel suitable for cooking any type of food. Based on the parameters in the tables and the figures, Cook stove C (Envirofit) performed better followed by Cook stove B (Jiko koa - though preferred) and least was Cook stove A (KCJ) with FssDbb product. High thermal efficiency for the phases indicated that the heat generated was utilized well for the task that was intended. Emissions recorded were relatively low but requires that the stoves should be used in well-ventilated places.
