The structural, morphological, magnetic and dielectric properties of Samarium (Sm3+) and Manganese (Mn2+) doped Bismuth ferrite (BSFMO, Sm=5% and Mn=0%, 5%, 10%, 20%, 25%) nanoparticles are presented which were characterized by X-ray diffraction (XRD), scanning electron microscope (SEM), superconducting quantum interference device (SQUID) and LCR meter, respectively. The XRD and SEM measurement show that the nanoparticles were successfully synthesized by an improved sol-gel technique. The nanoparticles size decreases with increase in the Mn2+ concentration. The dielectric measurement revealed that the dielectric constant and dielectric loss decreases at higher frequency. The saturation magnetization and the magnetic coercivity of Mn-doped BSFO decrease by increasing Mn concentration which is attributed to the increase in Bi2Mn4O9 antiferromagnetic impurity phase and the increase in antiferromagnetic spin wavelength. Our results suggest that the resulting nano-composite is a soft ferromagnetic material and is a suitable candidate for magnetic sensors operable at room-temperature.
Nanoparticles; Dielectric dispersion; Antiferromagnetic impurity
BiFeO3 (BFO) is one of the multiferroics with coexistence of antiferromagnetic and ferroelectric order parameters simultaneously in perovskite structure [1,2]. BFO is an antiferromagnetic material with Neel temperature of about 370°C and ferroelectric material with the Curie temperature of 830°C [3,4]. The multiferroic materials are explored widely due to potential applications such as in microwave devices, satellite communication, memory devices, audio–video devices, digital recording, sensors and spintronic devices [5,6]. Therefore, BiFeO3 is considered to be as a primary contestant for magnetoelectric applications at room temperature. It belongs to R3c space group and has a rhombohedral distorted structure . The magnetic behavior of BiFeO3 owed to partially filled 3d orbital electrons of Fe3+ ions that lead to G-type anti ferromagnetism and the ferroelectric property which originates from Bi-O hybridization due to stereo chemical activity of Bi6s2 lone pair .
As, BFO has a small band-gap (2.2 eV) so, it has got more attraction for the reason that it is possible to be employed as an efficient visiblelight photo catalyst. Therefore, BFO-based photo catalysts are very reactive to visible-light and exhibit higher photo catalytic efficiency in visible range compared to the TiO2-based photo catalysts. To further improve the photo catalytic Performance, efforts have been made for band-gap engineering by different elemental doping onto the BFO lattice sites . In order to prepare BFO nanoparticles of small sizes (<60 nm), several alternative chemical synthesis routes were adopted such as ferrioxalate precursor method , micro-emulsion technique , citrate-gel method , sol–gel method [8,13], co-precipitation method, soft chemical route, etc. Recently, many elements like Gd3+, La3+, Mn2+, Co2+, co-doped La3+ and Co2+, La3+ and Mn2+ have been doped onto BFO in order to improve its morphology, electrical and magnetic properties [14-23].
In the present work, Bi3+ and Fe3+ cations of BiFeO3 were replaced by Sm3+ and Mn2+ respectively in order to study the dielectric and magnetic properties of the resulting nanoparticle compound. The Sm3+ and Mn2+ ions were introduced in A-site and B-site onto BFO, respectively. In this research, an effort is made to study the behavior of BSFMO (Sm=5% and Mn=0%, 5%, 10%, 20%, 25%) nanoparticle system including, physical, structural, magnetic and dielectric parameters at room temperature.
Pure and co-doped BFO were prepared by an improved sol-gel method. The Bi1-xSmxFe1-yMnyO3 (BSFMO, x=0, 0.05; y=0, 0.05, 0.1, 0.15, 0.2, 0.25) nanoparticles abbreviated as BSFO, BSFMO-5, BSFMO-10, BSFMO-20, and BSFMO-25, respectively. The samarium nitrate hex hydrate and bismuth nitrate pent hydrate dissolved in acetic acid were added to ethylene glycol and stirred for 2 h at room temperature. Manganous nitrate solution and iron nitrate nonahydrate powder were dissolved in acetic acid and constantly stirred for 1 h. Hereafter, both solutions were mixed and stirred for 2 h. A homogeneous, reddish brown solution was produced and was dried at 80°C to obtain a dry gel and then calcined at 600°C for 3 h. In the experimental process, acetic acid was used as the catalyst in the sol system and the hydrolysis speed controls the concentration during synthesis process; ethylene glycol used as solvent during hydrolysis can keep the different electronegativity of bismuth (Bi3+) and iron (Fe3+) and a stable solution is formed by its linearly structured molecule . The structural analysis of the BSFMO samples was carried out by X-ray Diffractometer (XRD) in the range of 20~80 with Cu-Ka radiation working at 40 kV and 26 mA. Scanning electron microscope (SEM) and energy dispersive spectrometer (EDS) were used for morphological analysis and to examine the chemical composition of the BSFMO samples, respectively. The LCR meter was used to study the dielectric properties of pure and Sm3+ and Mn2+ co- doped BFO nanoparticles. The Superconducting quantum interference device (SQUID) was used to study the ferromagnetic properties of the samples.
Structural and morphological characterizations of BFO and BSFMO nanoparticles

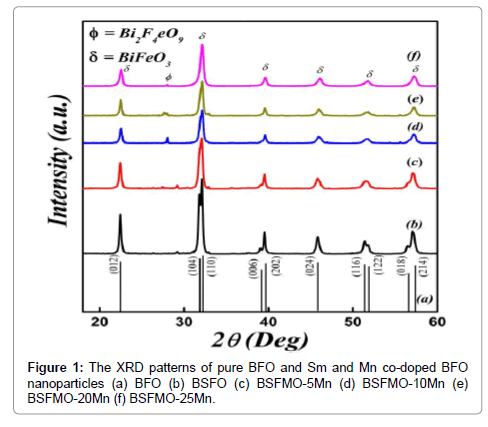

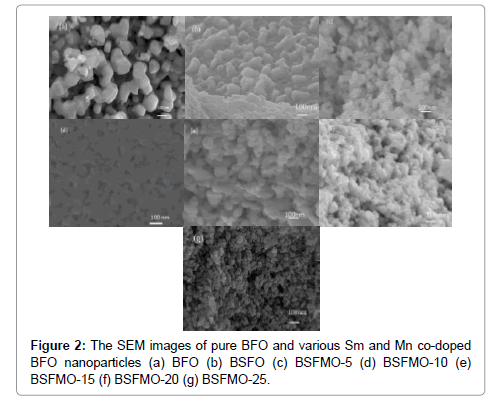

Figure 1 shows XRD patterns of the Sm3+ and Mn2+ co-doped BFO nanoparticles calcined in air at 600°C. The XRD pattern of pure BFO corresponds to the distorted rhombohedral structure with an R3c space group (JCPDS card no. 20-0169). By further increasing Mn2+ doping concentration onto BFO sites, an additional peak of an impurity phase of Bi2Fe4O9 is nearly removed, as is reported in previous report . The SEM images of the BSFMO samples calcined at 600°C are shown in Figure 2. The particle size of BSFMO reduces (57-19 nm) by increasing concentration of Mn2+ doping. Hence, the variation in the grain morphology of BSFMO nanoparticles is attributed to the addition of Mn2+ at the Fe3+ sites, as the Mn2+ concentration further increases to 25 mol% in BSFO, the particles were agglomerated and undergo a phase transition from rhombohedral to orthorhombic phase [26,27]. The reduction in grain size may be attributed to the difference in the ionic radius of Bi3+ and Sm3+ as well as the difference in bond strength which is almost 1.8 times greater for Sm–O bond (619 ± 13 kJ/mol) than the Bi–O bond (343 ± 6 kJ/mol). The Kirkendall effect may be the another cause for decrease of grain size due to doping which arise due to diffusion rates of constituting elements of the compounds .

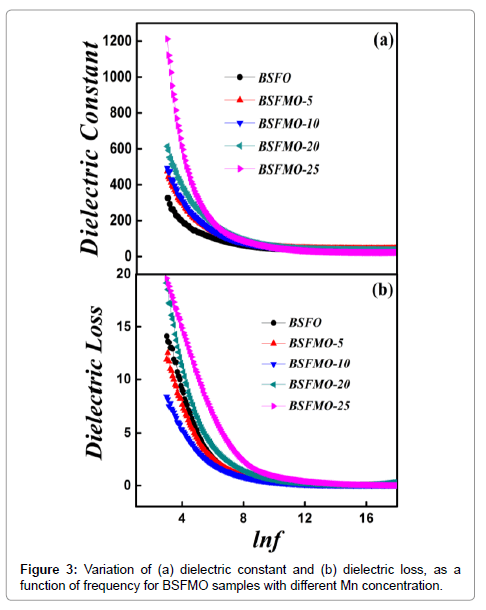

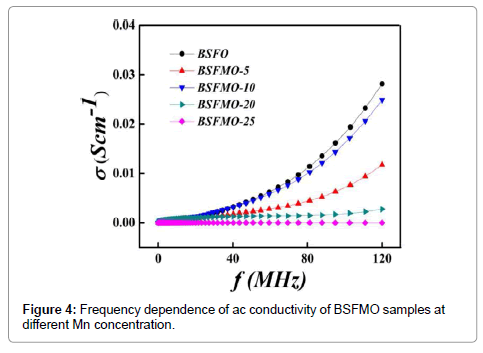

Dielectric properties: Figure 3a shows the variation of dielectric constant vs. frequency obtained for pure BFO and BSFMO samples, measured at room temperature, with different Mn2+ doping concentration under the frequency range of 20 MHz -120 MHz (Figure 3a and 3b). From Figure 3, it can be seen that the dielectric constant decreases with increase in the frequency. The observed behavior of BSFMO nanoparticles can be attributed to the space charge relaxation effect on the basis of polarization and hopping conduction processes in nanoparticles . As, both dielectric constant ‘ε’ (real part) and dielectric loss ‘ε’ account for charge storage capacity/polarization ability and energy dissipation; it is observed that the dielectric constant is decreased rapidly by increasing frequency and become independent at high frequency range. The decrement of real part is ascribed to the dielectric relaxation. Koop’s theory describes the phenomena of dielectric dispersion. According to this theory, the decrement in real part with increasing frequency is attributed to the fact that atoms in the dielectric material required a finite time to align up along their axis in the direction of applied field. The frequency of the applied electric field increases and a point is reached when dipoles do not follow the frequency of the applied electric field and value of the real part is decreased. With further increase in the frequency of the applied field, the polarization would hardly move before the field reverses its direction and makes no role in polarization thus, becomes independent at high frequency range. The decrement in dielectric constant is associated with the hopping of the electrons from Fe2+ to Fe3+ ions. Moreover, at low frequency, electric field does not provide sufficient energy to electron for hopping but as we increase the frequency of electric field, it provides sufficient energy and a specific point is reached when hopping of electron is started from Fe2+ to Fe3+ ions. Therefore, the conductivity of the dielectric increases with frequency . The dielectric constant of co-doped BFO nanoparticles is larger than that of un-doped BFO nanoparticles. This dielectric behavior of doped BFO can be explained in terms of oxygen vacancies and displacement of Fe3+ ions as there are always some oxygen vacancies in undoped BFO which results in relatively high conductivity and less dielectric constant. The dielectric loss data shows that the dielectric loss follows the same trend as for the dielectric constant. In the low-frequency region, there is a greater dielectric loss due to increased resistivity owing to the accumulation of charges. It is expected that more oxygen vacancies would be introduced by the substitution of Mn2+ ions in BSFO which will increase the hopping conduction mechanism resulting in higher dielectric loss. This kind of behavior was previously reported in the Sr2þ and the Pb2þ doped BFO. Figure 4 shows that the ac conductivity of the BSFMO samples measured at room temperature. The Ac conductivity was calculated by the capacitance (Cp) and dissipation factor (D) as a function of frequency of the applied voltage. The overall conductivity at a specific temperature over a wide frequency range follows the universal dielectric response

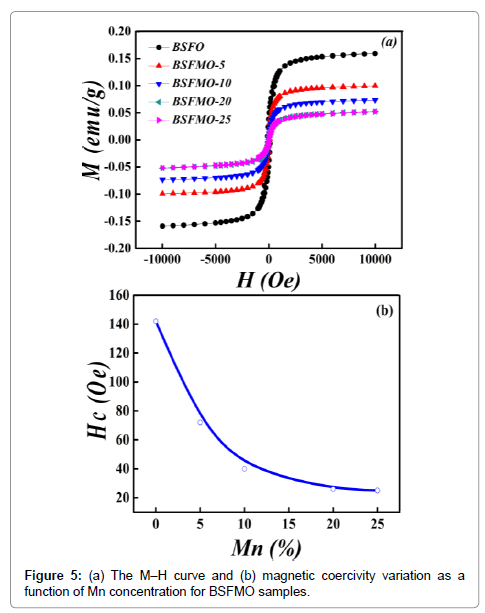

Magnetic properties: Figure 5a shows the magnetization vs. magnetic field (M–H) curves of the Sm3+ and Mn2+ co-doped BFO nanoparticles measured under the magnetic field loop of ±10,000 Oe at room temperature. The BSFO shows a good magnetic hysteresis behavior due to the distorted anti-ferromagnetic spin cycloid of pure BFO and due to magnetically active Sm3+ characteristics. It is found that the perfect magnetic hysteresis loops were observed for each composition and that the saturation magnetization decreases with increasing Mn2+ concentration. It is due to the fact that the antiferromagnetic Bi2Fe4O9 impurity phase continuously increases with increase in Mn concentration as is shown in the X-ray diffraction pattern in Figure 5a.
Figure 5b shows a significant decrease in magnetic coercivity by increasing the concentration of Mn2+. BFO has largest coercivity of 222 Oe which decreases to 142 Oe in Sm3+ doped BFO nanoparticles. The coercivity then decreases continuously and attains the minimum value of 25Oe at 25% Mn2+; the coercivity and magnetization both decrease by increasing Mn2+ concentration. The saturation magnetization of the BSFMO-25 nanoparticles is smaller than all other BSFMO samples with smaller Mn concentration which is due the antiferromagnetic impurity phase of Bi2Fe4O9 as the magnetization of Bi2Fe4O9 is almost zero at room temperature. Therefore, It is evidently observed that the magnetic properties of the samples are strongly dependent on doping concentration making the magnetic nanoparticles controllable externally.
In summary, pure BFO and BFSMO nanoparticles (Sm: 5% and Mn: 0%, 5%, 10%, 20%, 25%) were prepared successfully via improved sol-gel technique by using double solvent method and calcined at 600°C. A single phase perovskite structure of pure bismuth ferrite nanoparticles is achieved. Structural and morphological analyses revealed that there is phase transition from rhombohedral to orthorhombic by increasing Mn2+ concentration. Study of dielectric properties shows that the dielectric constant and dielectric loss of all samples has the same trend; it is decreased by increasing frequency towards the stable value. The magnetization of BSFMO particles has the largest value when concentration on Mn2+ is zero and by increasing Mn2+ magnetization, coercivity and squareness decrease. The increase in magnetization is attributed to the distorted anti-ferromagnetic spin cycloid of pure BiFeO3 on external doping. The magnetic nanoparticle system presented here shows their potential for the application of soft magnetic materials.
The work was supported by National University of Science and Technology (NUST), Islamabad, Pakistan, and Higher Education Commission (HEC) of Pakistan.
