  • Research Article
  • J Diabetes Clin Prac 1:105, Vol 1(1)

The Effect of Cortex Lycii on Rattus norvegicus Blood Glucose Level Using a High Glucose Diet.

Tan H* and Vinanzaca C
Department of Agriculture, John Bowne High School, Flushing, New York, USA
*Corresponding Author: Tan H, Department of Agriculture, John Bowne High School, 63-25 Main St, Flushing, New York, USA, Tel: 9292907088, Email: Hongping.tan123@gmail.com

Received: 03-Jul-2018 / Accepted Date: 03-Sep-2018 / Published Date: 10-Sep-2018

Keywords: Hyperglycemia; New treatment; Oral agent; Herbal treatment; Non-insulin treatment; Diabetes prevention; Animal testing; Stimulating insulin

Introduction

Currently diabetes is one of the top 10 causes of leading deaths in United States. The most common sign of having diabetes is hyperglycemia. Hyperglycemia is described as having abnormally high blood glucose level. Over time having hyperglycemia can lead to organ damage. The reason behind type 2 diabetes and hyperglycemia is the body not producing enough insulin for glucose intake. When humans intake food, the food is broken down into glucose. When glucose enters the bloodstream, the pancreas secretes insulin to keep the glucose level down. Insulin is a hormone that signals the cells that lack energy to accept glucose into their cell wall. When not enough insulin hormones are produced, glucose is unable to diffuse cells and causes the bloodstream to have high levels of glucose. Since the cells are not getting enough glucose they are weakened. Blood glucose level can be tested using a glucometer. Small amounts of blood can be collected using a lance and a test strip. The current treatment for hyperglycemia is injecting insulin into bloodstream.

This study has the potential to find alternative treatment for hyperglycemia to combat diabetes. Using Rattus norvegicus as test subject is the most efficient way to test a treatment without using human as test subjects. Giving rats a high glucose diet will cause them to have hyperglycemia. Then feeding them Cortex Lycii liquid and comparing it with the control group without Cortex Lycii will show the effects of Cortex Lycii on blood glucose. Rat’s blood can also be tested using human glucometer. If rats from the experimental group show lower glucose level than the control group when both of them consume high glucose diet, then it will prove Cortex Lycii can stimulate higher insulin production.

This experiment was designed to find an alternative treatment for hyperglycemia. The findings from this experiment can be followed up with further studies on diabetes. Another objective of this study was to observe the effect of high glucose diet on Rattus norvegicus . Since many researchers have found the connection between unhealthy diets with diabetes, this experiment could show Cortex Lycii having a diabetes prevention effect. Last objective of this study was to observe if there are side effects of using Cortex Lycii. Based on other research, this herb has shown no side effects [1].

Currently based on statistics provided by the CDC (National Center for Chronic Disease Prevention and Health Promotion), more than 30.3 million Americans have diabetes which is more than 9% of the population [2]. In an experiment conducted on Diabetes epidemic by Mokdad, Bowman, Ford, Vinicor, Marks and Koplan, it was explained that diabetes is one of the leading causes of death in the United States. The two types of diabetes (type 1 and type 2) can both be treated with insulin [3]. They have similar results on the body; however type 2 diabetes can be caused by weight gain and physical inactivity [4]. Physical inactivity is defined as not getting recommended level of physical exercises. The β-cell apoptosis occurs when the body becomes inactive. However, type 1 is mostly inherited through genetic pathway [5]. Based on a research on type 2 diabetes, the amount of patients is expected to double by 2030 [6].

The only medical treatment currently available for diabetic patients is insulin treatment. Due to β-cell not producing enough insulin, injection of insulin is used as a treatment. Patient can take the insulin injection, when they have high blood glucose. Insulin is used to combat hyperglycemia [7,8]. Hyperglycemia is an abnormal blood glucose level. There are other treatments however; many of them have insufficient research to support their effects [9].

Testing the effect of Cortex Lycii on high blood glucose rats could lead to a new breakthrough in the field of agriculture. Agriculture is the cultivation of animal and plants to benefit more humans. The result of this experiment could lead to more production of the herb Cortex Lycii and enhancing diabetic researches. Finding new treatments for hyperglycemia could lead to less people suffering from the symptoms of diabetes.

Cortex Lycii is a herb that is used in traditional Chinese herbal medicine formulas [10]. It is not well known in western treatments and little research has been done on this herb. In the experiment by Chan et al., they tested a formula labeled SR10 was tested on type 2 diabetic mice. In SR10 one of the content listed was Cortex Lycii. The results showed it lowered blood glucose level and the SR10 did not exhibit any toxic effect to the mice. Another experiment conducted by different scientists on diabetic patients with different symptoms. The patients were given a herbal treatment with Cortex Lycii included as part of its content. The result showed some of the symptoms were being relieved [11]. Further research was done on Cortex Lycii by Ye et al., where the scientists compared the effectiveness of aqueous extracts to ethanol extracts of Cortex Lycii in elevating insulin sensitivity [12]. There is currently no found research done on the testing Cortex Lycii as a single unit on diabetic patients. Most research on Cortex Lycii is mixing this herb with many other substances to view their combined effect. Cortex Lycii has more benefits than just a treatment for diabetes. Research done by Li et al. concluded that Cortex Lycii extract contained a chemical compound that was effective in preventing cell damage [13]. In the few other researches, the chemical compounds of Cortex Lycii was further broken down [12,14]. The compound Kukoamine B found in the herb has antibacterial effects. The compound lycimins A and B was also found to have Anti-ACE effect. ACE is an angiotensin converting enzyme which raises blood pressure. Lyciminis A and B are types of ACE inhibitor. ACE inhibitors can reduce heart failures [15].

Diabetes can cause other vascular diseases. Since diabetes cause abnormal metabolism of triglyceride-rich lipoproteins, diabetic patients have increased risk of atherosclerosis [16]. Cortex Lycii also has a suppression effect on atherosclerosis. Atherosclerosis is a buildup of fat and cholesterol that causes blockage in blood flow. Cortex Lycii has an effect on slowing blood cell hemolysis and LDL (low-density lipoprotein) oxidation which can lessen the risk of atherosclerosis [17].

Although research on Cortex Lycii is limited, there has been other research on testing different substances on diabetes [18]. Tsuneki et al. conducted a research on green tea effects on diabetic mice. After letting the diabetic mice ingest green tea, blood glucose levels were tested after 2-6 hours. The results show their blood glucose levels were lowered. Similar tests could be done on the rats with Cortex Lycii replacement of green tea [19]. There are other herbs that researchers have tested for diabetes treatments. Panax ginseng was tested on type 2 diabetic mice and resulted in enhancing insulin sensitivity. By improving insulin, the blood glucose level was also lowered [20]. In another experiment Corni Fructus and Lycii Radicis Cortex were combined and tested on diabetic rats. The results also showed improvement in blood glucose levels [21]. Codonopsis javanica root is also used in Chinese traditional medicine, and was tested on fructosefed insulin resistant rats. The finding was that fructose intake can damage cell function and this herb can significantly improve the antioxidant enzyme activities [22]. In 2005, an experiment with Mangiferin on diabetic rats was done. The drugs showed significant effect on lowering plasma glucose level. This drug is extracted from the plant Mangifera indica [23]. This means that future research in developing new drugs, plants can also be part of the research.

Lastly, in order to successfully test blood glucose levels, research on blood drawing procedures was done. There are few ways to draw small amounts of bloods from rats. Some locations where blood can be collected are saphenous vein, dorsal pedal vein, and tail vein [24]. However, this research mostly shows the collection of large amount of blood sample. In a glucose test, the glucometer only requires 0.5 μl. For minimal stress to the rat drawing blood from the tail is the most ideal [25]. To increase blood flow rats can be placed in warm water [26]. Based on IACUC blood sample guidelines, rats should not have more than 2.0 mL of blood drew in 24-hour time period [27]. To keep this experiment constant, only male rats were used. Identifying the sex of the rat was done by looking at the anogenital distance. Male rats have a longer anogenital than females [28]. Diabetic male rats tend to show increasing blood glucose more early than female [14]. Also male rats show early symptom of body weight and are more susceptible to early symptoms of diabetes [29].

In summary of all these studies conducted on diabetes, the current insulin treatment is not the only way to treat hyperglycemia. Many herbs that were tested for their effectiveness against diabetic patients, showed a positive effect. Cortex Lycii is one of the herbs that showed up several of different studies. This could mean Cortex Lycii is one of the key factors of lowering blood glucose. Further experiments and researches should be done on this herb to support or reject this theory. If it is supported, then a new treatment for diabetes could be discovered in the near future.

Methodology and Materials

Blood testing

Use alcohol wipes to disinfect the tail of the rat. Use lancet to prick a small visible amount of blood from the rat’s tail. Use test strip to collect the blood sample and wait for the glucometer to give a reading. Repeat the blood test for all 8 rats. Record down the data for each group of 4 rats. Compare the blood glucose level of Cortex Lycii group with the normal water group. Repeat for 3 trials.

Feeding

Soak 50 g of Cortex Lycii in 1 l of water for 10 min, and then boil for 30 minutes. After Cortex Lycii liquid is cooled down to room temperature. It is poured into 580 mL water bottle mixed in with sugar and high fructose corn syrup. For experimental group, the Cortex Lycii bottle is given to 4 Rattus norvegicus along with their 3 pellets/animal of food. For control group, the other 4 Rattus norvegicus are given normal water with sugar and syrup along with the same food, Wait for 2 days for food consumption. For trial 1 only 25 g of syrup was given. For trial 2 and 3, 25 g of syrup and 25 g of sugar was given. Compare the rise in blood glucose when higher glucose diet was given.

Results

Table 1 compares the blood glucose of the control group with the experimental group. The rats’ diet included 25 grams of corn syrup mixed in their water. The control group received 25 grams of corn syrup with normal water in a 580 mL water bottle. The experimental group received 25 grams of corn syrup with Cortex Lycii liquid in 580 mL water bottle. When the trial ended the results showed that the control group had a higher blood glucose level than the experimental group. However, the result didn’t show enough differences in the blood glucose level. To view the effect of Cortex Lycii on blood glucose more significant changes in glucose levels were needed. Therefore, white sugar was added to both control and experimental group to increase their glucose intake (Table 2). Within the increase of glucose in the rats’ diet, the data presents the control group had a significant increase to their blood glucose levels. Due to the increase of blood glucose in the control group, the data shows rats in the experimental group had significantly lower blood glucose levels compared to the control group.

Control Group Experimental Group
Rat 1: 143 mg/dL Rat 1: 124 mg/dL
Rat 2: 110 mg/dL Rat 2: 85 mg/dL
Rat 3: 117 mg/dL Rat 3: 113 mg/dL
Rat 4: 127 mg/dL Rat 4: 99 mg/dL

Table 1: Trial 1 with 25 g of syrup mixed into rats’ drinking water.

Control Group Experimental Group
Rat 1:  255 mg/dL Rat 1: 116 mg/dL
Rat 2: 146 mg/dL Rat 2: 103 mg/dL
Rat 3: 143 mg/dL Rat 3: 120 mg/dL
Rat 4: 141 mg/dL Rat 4: 119 mg/dL

Table 2: Trial 2 with 25 g of syrup and 25 grams of white sugar in drinking water.

With the increase of glucose intake, only the rats that drank Cortex Lycii showed no significant increase to their blood glucose levels. To confirm that the data collected from trial 2 was accurate, trial 3 was conducted with the same variable. As shown in Figures 1 and 2, the average differences between experimental group and control group of trial 2 and trial 3 are similar (Table 3). With the same diet of 25 grams of white sugar and 25 grams of corn syrup, both rats’ blood glucose levels from trial 2 and 3 increased similarly from trial 1. This proves that white sugar can increase blood glucose levels significantly when added to a diet. Since the data from trial 2 and 3 are constant, which indicated the trials were run accurately.

diabetes-clinical-practice-subject-groups

Figure 1: This graph shows average blood glucose level of both subject groups over the 3 trials.

diabetes-clinical-practice-blood-glucose

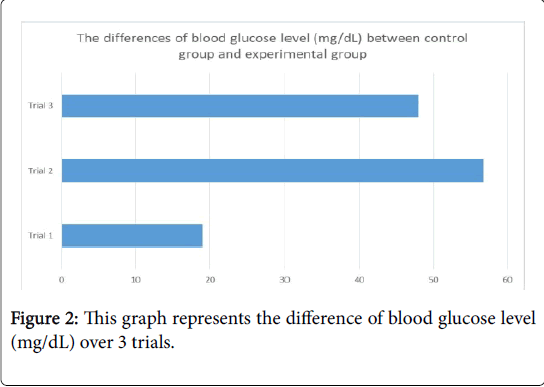

Figure 2: This graph represents the difference of blood glucose level (mg/dL) over 3 trials.

Control Group Experimental Group
Rat 1: 135 mg/dL Rat 1: 103 mg/dL
Rat 2: 144 mg/dL Rat 2: 92 mg/dL
Rat 3: 155 mg/dL Rat 3: 111 mg/dL
Rat 4: 178 mg/dL Rat 4: 114 mg/dL

Table 3: Trial 3 with 25 g of syrup and 25 g of white sugar in drinking water.

Discussion

Research done by Chan et al. proved that Cortex Lycii with other herbs can stimulate insulin production. The experiment done by them was on type 2 diabetic rats with a dysfunctional pancreas. The data provided by this research also supports their hypothesis that Cortex Lycii can stimulate pancreas β‐cells production of insulin. By increasing the production of insulin this would cause blood glucose levels to decrease, this experiment was able to test the effect of Cortex Lycii by testing blood glucose levels. Since type 2 diabetes means the body is not producing enough insulin to keep blood glucose levels normal, and Cortex Lycii can increase insulin production, then with further research Cortex Lycii has the potential for type 2 diabetes treatments. At the end of the research no rats from the experimental group showed any signs of lethargy or intoxicated behaviors. This also supports the experiment done by researchers, Chan et al. discussed Cortex Lycii does not have any toxic effects [2]. One observation of the 8 rats is the difference in sizes of the control group compared to the experimental group. The rats that did not receive the Cortex Lycii and only high glucose diet were significantly larger in size, close to being obese. This result was similar to the experiment done by other scientist who showed that Cortex Lycii helps prevent obesity [30]. The rats that received Cortex Lycii and also have the same high glucose diet were smaller in size and similar to an average rat. Due to the nature of this experiment on blood glucose, no weighing test was done on the rats.

One challenge faced in this experiment is the small sample size. Due to time limitation, this experiment was only able to test 8 rats per trial over 3 trials. However, with the trials that were conducted, the data presented was highly constant and showed a significant difference of blood glucose levels to reach a conclusion. A minor problem faced in this experiment was the difficulties of collecting blood sample from the rats. The lancet in the blood glucose kit was meant for human use so the needle was not able to prick through the skin of the rats’ tough tail. After few failures, the cap of the pen was removed to increase the depth of the lancet. This method of collecting blood was then used for rest of the trials.

The main purpose in studies of agriculture is to benefit people through the use of plants and animals. This research can benefit the agriculture field due to the potential medical advancement on diabetic treatment. Since current treatment for lack of insulin is to inject body with more insulin, with further research Cortex Lycii could be an alternative treatment due to its ability to stimulate pancreas to produce its own insulin rather than injecting external hormone. This could be a potential market for growers to become a part of. Growing the Cortex Lycii herb can increase jobs, as well as profit for farmers and plant producers.

Acknowledgements

The John Bowne agriculture department provided funding and animals for this experiment. Both authors Hongping Tan and Cristian Vinanzaca were the main experimenters and did all the actions listed in the procedure. Both authors wrote in this manuscript and research data. Some assistances were provided by Raj Patel and Sebastian Wirawan for recording some of data in the glucometer while blood sample was being collected, Erika Asitimbay and Karen Cruz cleaned the rat’s cages when time was limited, Chelsea Aviles assisted in boiling Cortex Lycii for the rats, Karla Bunay assisted with restraining the rats while collecting blood sample from the rats from time to time. Ms. Weinstein assisted by breeding the amount of rats needed for the project. Ms. Jamiolkowska assisted by purchasing the materials needed for the project and she helped in editing this paper. There is no conflict of interest in this experiment, as everyone was credited for their attribution. Ms Jamiolkowska the instructor of this experiment will be the guarantor of this work, as such, had full access to all the data in the study and takes responsibility for the integrity of the data and the accuracy of the data analysis.

References

  1. Chan JY, Lam F, Leung P, Che C, Fung K (2008) Antihyperglycemic and antioxidative effects of an herbal formulation of Radix Astragali, Radix Codonopsis and Cortex Lycii in a mouse model of type 2 diabetes mellitus. 23: 658-665.
  2. National Center for Chronic Disease Prevention and Health Promotion (2017) National Diabetes Statistics Report: Estimates of Diabetes and Its Burden in the United States.
  3. Mokdad AH, Bowman BA, Ford ES, Vinicor F, Marks JS, et al. (2001) The Continuing Epidemics of Obesity and Diabetes in the United States. JAMA 286: 1195–1200.
  4. Lee IM, Shiroma EJ, Lobelo F, Puska P, Katzmarzyk PT, et al. (2012) Effect of physical inactivity on major non-communicable diseases worldwide: an analysis of burden of disease and life expectancy. Lancet 380: 219-229.
  5. Tuomi T (2005) Type 1 and Type 2 Diabetes: What Do They Have in Common? Aspects of Pathophysiology 54: S40-S45.
  6. Garvey WT, Olefsky JM, Griffin J, Hamman RF, Kolterman OG (1985) The Effect of Insulin Treatment on Insulin Secretion and Insulin Action in Type II Diabetes Mellitus. 34: 222-234.
  7. Kasuga M (2006) Insulin resistance and pancreatic β cell failure. Journal of Clinical Investigation 116: 1756–1760.
  8. Ghorbani A (2014) Clinical and experimental studies on polyherbal formulations for diabetes: current status and future prospective. J Int Med 12: 336-345
  9. Gao J, Liu ZJ, Chen T, Zhao D (2014) Pharmaceutical properties of calycosin, the major bioactive isoflavonoid in the dry root extract of Radix astragali. Pharm Biol 52: 1217-1222.
  10. Su K, Zhu F, Guo L, Zhu Y, Li W, et al. (2013) Retrospective study on Professor Zhongying Zhou's experience in Traditional Chinese Medicine treatment on diabetic nephropathy. J Tradit Chin Med. 33: 262-267.
  11. Yahara S, Shigeyama C, Nohara T, Okuda H, Wakamatsu K, et al. (1989) Structures of anti-ace and -renin peptides from lycii radicis cortex. Tetrahedron Letters 30: 6041-6042.
  12. LI Y, Hu S, Huang Y, Han Y, Cheung H (2015) Preventing H2O2-induced toxicity in primary cerebellar granule neurons via activating the PI3-K/Akt/GSK3β pathway by kukoamine from Lycii Cortex. J Func Foods 17: 709-721.
  13. Liu X, Zheng X, Long Y, Cao H, Wang N, et al. (2011) Dual targets guided screening and isolation of Kukoamine B as a novel natural anti-sepsis agent from traditional Chinese herb Cortex lycii. Int Immunopharmacol 11: 110-120.
  14. Yusuf S, Sleight P, Pogue J, Bosch J, Davies R, et al. (2000) Effects of an Angiotensin-Converting–Enzyme Inhibitor, Ramipril, on Cardiovascular Events in High-Risk Patients. N Engl J Med 342: 145-153.
  15. Tomkin G H (2010) Atherosclerosis, diabetes and lipoproteins. Expert Rev Cardiovasc Ther 8: 1015-1029.
  16. Chan JY, Koon JC, Leung P, Che C, Fung K (2011) Suppression of low-density lipoprotein oxidation, vascular smooth muscle cell proliferation and migration by a herbal extract of Radix Astragali, Radix Codonopsis and Cortex Lycii.
  17. He K, Li X, Chen X, Ye X, Huang J, et al. (2011) Evaluation of antidiabetic potential of selected traditional Chinese medicines in STZ-induced diabetic mice. J Ethnopharmacol 137: 1135-1142.
  18. Tsuneki H, Ishizuka M, Wu J, Sasaoka T, Kimura I (2004) Effect of green tea on blood glucose levels and serum proteomic patterns in diabetic (db/db) mice and on glucose metabolism in healthy humans. BMC Pharmacol 4: 18.
  19. Yeo J, Kang Y, Cho S, Jung M (2011) Effects of a multi-herbal extract on type 2 diabetes. Chin Med 6: 10.
  20. Oh TW, Kang SY, Kim KH, Song M, Park Y (2013) Anti-diabetic effect of medicinal plants used for lower wasting-thirst in streptozotocin-induced diabetic rats. Korea J Herbol 28: 53-60.
  21. Chen KN, Peng WH, Hou Cw, Chen Cy, Chen Hh, et al. (2013) Codonopsis javanica root extracts attenuate hyperinsulinemia and lipid peroxidation in fructose-fed insulin resistant rats. J Food Drug Anal 21: 347-355.
  22. Muruganandan S, Srinvasan K, Gupta S, Gupta P, Lal J (2005) Effect of mangiferin on hyperglycemia and atherogenicity in streptozotocin diabetic rats. J Ethnopharmacol 97: 497-501.
  23. Parasuraman S, Raveendran R, Kesavan R (2010) Blood sample collection in small laboratory animals. J Pharmacol Pharmacother 1: 87-93.
  24. Lee G, Goosens KA (2015) Sampling Blood from the Lateral Tail Vein of the Rat. J Vis Exp 99: 52766.
  25. IACUC Guidelines: Blood Collection (2018) Office of Animal Resources Institutional Animal Care and Use Committee.
  26. Quesenberry KE, Donnelly TM, Mans C (2012) Chapter 22 – Biology, Husbandry, and Clinical Techniques of Guinea Pigs and Chinchillas. Clin Med Surg 279-294.
  27. Cortright RN, Collins HL, Chandler MP, Lemon PW, Dicarlo SE (1999) Diabetes Reduces Growth and Body Composition More in Male Than in Female Rats. Physiol Behav 60: 1233-1238.
  28. Ye Z, Huang Q, Ni HX, Wang D (2008) Cortex Lycii Radicis extracts improve insulin resistance and lipid metabolism in obese‐diabetic rats Phytother Res 22: 1665-1670.
