Benign Thoracic Lesions and Disorders: F-18 FDG PET/CT Features

Saphier Nicole*
Department of Radiology, Mayo Clinic Arizona, Phoenix, AZ, 85054, USA
Corresponding Author : Nicole S
Department of Radiology
Mayo Clinic Arizona, Phoenix, AZ, 85054, USA
Tel: 480-301-4898
E-mail: [email protected]
Received March 06, 2014; Accepted March 23, 2014; Published March 25, 2014
Citation: Nicole S (2014) Benign Thoracic Lesions and Disorders: F-18 FDG PET/CT Features. OMICS J Radiol 3:161. doi:10.4172/2167-7964.1000161
Copyright: © 2014 Nicole S. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.

Visit for more related articles at OMICS Journal of Radiology

Abstract

Objective: During PET/CT chest interpretation the imager may encounter non-malignant positive findings originating from physiologic variants, inflammation, infection, iatrogenic causes, post-surgical/post-therapeutic changes and benign tumors of different components of the thorax. This article illustrates and raises the awareness of these benign FDG-avid findings.
Conclusion: Knowledge of the benign FDG-avid findings of the thorax will help the imager to provide an accurate PET/CT interpretation and to avoid false-positive diagnosis of malignancy.

Keywords
Computed Tomography (PET/CT) Imaging; Benign tumors
Introduction
Positron emission/computed tomography (PET/CT) imaging with [fluorine-18] fluoro-2-deoxy-D-glucose (FDG) is a combined functional and anatomic imaging modality widely used to evaluate, stage and monitor malignancy [1]. Abnormal areas of FDG accumulation are identified by qualitatively comparing the tracer uptake with normal background activity. However, FDG affinity is not malignancy-specific and during the PET/CT oncologic evaluation, imagers may encounter incidental and/or co-existing FDG-avid findings, which are not related to the investigated malignant processes. This may lead to false-positive results and incorrect diagnostic predicaments, which may significantly impact the care and welfare of patients.
Accurate diagnosis can reduce unnecessary invasive procedures such as biopsy and thoracotomy in patients with benign disease [2] and therefore familiarity with the different causes of increased F-18 FDG uptake in the thorax mimicking cancer is imperative. The pictorial essay encompasses inflammation, infection, physiologic variants, trauma, iatrogenic processes, post-therapeutic changes and benign diseases of the lung parenchyma, pleura, and different components of the mediastinum and chest walls. Each etiology is illustrated and discussed for optimized diagnosis based on its thoracic location.
Physiologic Variants

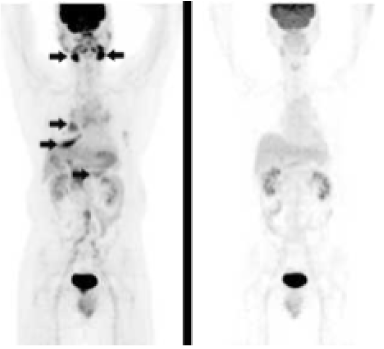

Muscle tracer uptake is related to voluntary or involuntary exertion, increased insulin level or post-procedural changes. Exertion up to 48 hours before PET/CT imaging may result in muscle uptake [3]. Positive uptake features are mostly demonstrated in the head and neck, trunk, extremities and diffusely throughout the body from different causes such as neck strain lying on stretcher, chewing gum, talking, finger tapping, cough, labored breathing, muscle spasms, jerking movements from seizure and more. Familiarity with muscle uptake features (anatomic locations and symmetrical patterns) and knowledge of recent voluntary or involuntary exertion prior to PET/CT imaging are helpful to avoid false positive diagnosis of cancer (Figure 1).

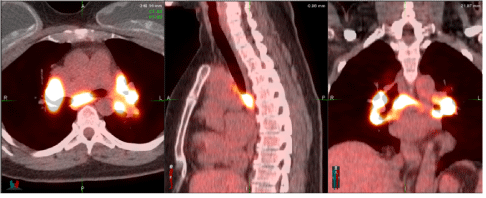

Brown adipose tissue is a well-known cause of false positive uptake on PET due to the hypermetabolic nature of the tissue [4,5]. Brown fat may be detected in 4-5% of all PET/CT cases more frequently in women than in men [6]. The frequently encountered patterns of brown adipose tissue are bilateral and symmetrical at sites of CT-depicted fat tissue attenuation of sub-occipital, cervical, supraclavicular, axillary, paraspinal and intercostal regions (Figure 2). Intermittently, brown fat deposit may be at less common and asymmetrical locations potentially leading to an interpretation error, specifically along the sternum mimicking mammary lymph nodes.
Myocardial metabolism may be from free fatty acid or glucose substrates depending on the fasting or non-fasting status of the patient. During oncologic imaging, the required patient’s fasting forces the heart to use free fatty acid as substrate and should result in low and uniformed cardiac uptake features [7]. In real practice, the cardiac uptake patterns are variable even in serial PET exams of the same patient. F-18 FDG uptake by atrial appendages or atria is related to atrial fibrillation or overload physiology. The less frequent tracer uptake by ventricles or simultaneously to all chambers of the heart may be secondary to pressure overload or underlying valvular heart diseases [8]. Correlation with additional cardiac imaging (CT, echocardiography, MRI) may be useful to distinguish benign cardiac uptake from metastatic tumor and mediastinal lymphadenopathy [9] (Figure 3).

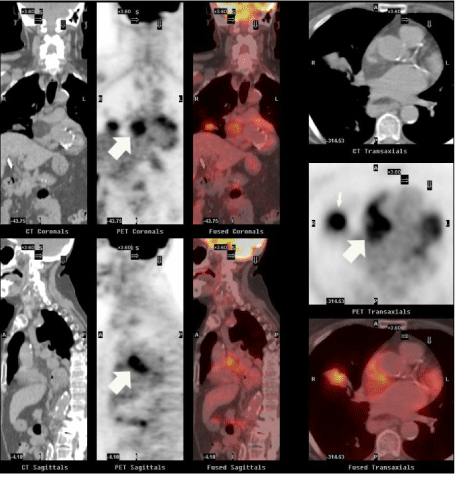

Lipomatous hypertrophy of the interatrial septum (LHIS) is a benign fat accumulation in the interatrial septum with a prevalence of 2-3%. CT at the level of the fossa ovalis shows a “dumbbell” shape due to sparing of the fossa in 78% of patients with LHIS. LHIS demonstrates a greater mean standardized uptake value (SUV) on PET/CT when compared to chest wall fat [10]. This is due to the increased amount of brown fat in LHIS, making it more metabolically active and thus FDGavid. These features will help differentiate LHIS from malignant cardiac processes. Fat accumulation in the interatrial septum increases with patient’s age and obesity [11]. The thicker and bulkier the fat infiltration of the interatrial septum, the more prominent F-18 FDG uptake is seen. The diagnosis of LHIS rests on the fat attenuation characteristics demonstrated by the transmission CT (Figure 4).
Inflammation

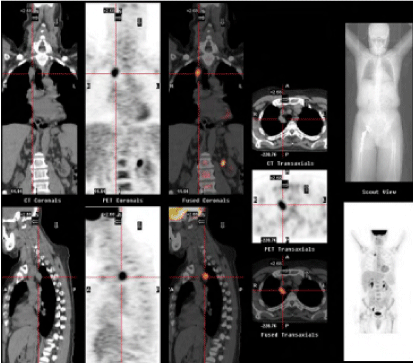

Lung inflammatory pseudotumor, also known as inflammatory myofibroblastic tumor, represents a spectrum of myofibroblastic proliferations containing a varying infiltrate of chronic inflammatory cells [12]. Radiographically, it is nonspecific featuring round/oval lung nodule or mass with possible spiculations and variable degrees of contrast enhancement. Due to infiltrating inflammatory cell composition, it exhibits FDG uptake simulating malignancy (Figure 5). Resection of the lesion is the treatment of choice. However, nonsurgical treatments such as radiotherapy and steroids have been employed in the setting of incomplete surgical resection, tumor recurrence, and patients being unfit for surgery. PET/ CT can play a role in monitoring postradiation changes attempting to decrease surgical and further radiation treatments [13]. The definitive identification of lung inflammatory pseudotumor is histological.
Systemic IgG4-related sclerosing disease is characterized by lesions with lymphoplasmacytic infiltrative fibrosis. Also known as autoimmune pancreatitis (AIP) due to the originally reported involvement of the pancreas, this disorder also features lesions of different organ systems of the body such as the orbits, salivary glands, thyroid, gallbladder, biliary ducts, retroperitoneum, aorta, kidneys, prostate, lymphatic system, airways and lungs (Figure 6). Lung involvement is related to IgG4-positive plasma cell and lymphocyte infiltrating the parenchyma with immunohistochemically evident fibrous interstitial proliferation in the background. Correct diagnosis of this condition is crucial because steroid therapy can be curative. Unfortunately, malignancy cannot be differentiated from the imaging findings, and tissue sampling is necessary to confirm the diagnosis of IgG4-related lung disease [14]. Within the mediastinum it can present with nonspecific bronchial wall thickening (Figure 7). Recognizing additional areas of involvement, especially the bilateral and symmetrical orbital and salivary gland FDG-avid features, is helpful in differentiating the correct diagnosis from malignancy.
Sarcoidosis is a chronic systemic inflammatory disease of unknown origin involving preferentially lungs often with associated hilar and mediastinal adenopathy. Characteristic radiologic and PET features of thoracic sarcoidosis are well recognized by clinicians and imagers and are actually used to follow the status of patients undergoing treatment [15,16]. Since the PET features are frequently indistinguishable from other advanced neoplasms with mediastinal lymphadenopathy, histologic proof is typically necessary for the correct diagnosis of systemic inflammatory disease (Figure 8).
Nodal reactive process The false positive PET findings from reactive process to foreign material mimic nodal metastasis from lung malignancy. Mediastinal node staging with FDG-PET/CT in coal workers has been rendered insufficient due to the high false-positive rates given the presence of pneumoconiosis with positive predicted values as low as 66% [17,18]. Therefore more invasive methods of nodal sampling are necessary in differentiating anthracosis from malignancy in patients with PET positive lymph nodes and known pneumoconiosis exposure (Figure 9).
Thyroid uptake in PET imaging poses a common conundrum amongst imagers. Diffuse uptake is typically associated with a benign pathology such as thyroiditis and focal nodular uptake may be related to hyperfunctioning nodules or malignancy [19]. Occasionally a substernal thyroid is present and can present as a focal hypermetabolic mediastinal mass on PET (Figure 10). Three-dimensional PET/CT evaluation of the thoracic inlet is helpful to ascertain the origin of this potential lesion.
Infection
Thoracic infectious diseases may target the lung parenchyma, mediastinum or chest wall. The high concentration of macrophages and inflammatory cells and consequently high FDG avidity at sites of infection and abscess formation may mimic cancer especially at prior sites of resected/treated malignancy and the existence of cavitation reminiscent of malignant central necrosis (Figure 11) [9,20].
Coccidioidomycosis is an endemic fungal disease of the arid and semi-arid regions of the North, Central and South American continent and is secondary to inhalation of the arthroconidia form of Coccidioides immitis. This disease, primarily a regional public health concern, may be encountered worldwide due to the large population migration, and seasonal and recreational transit through the endemic areas. Risk factors are pregnancy, extreme stages of life, diabetes, corticosteroid use, immunocompromised health conditions and dark-skinned ethnics. Although the pulmonary manifestations of this infection vary and resemble those seen in mycobacterial infections [21], the acute phase of the disease may present with nonspecific infectious findings such as infiltrates, consolidation, adenopathy and pleural effusion [22] giving the appearance of a primary lung malignancy (Figure 12).
Trauma, Iatrogenic and Post-Procedural Changes

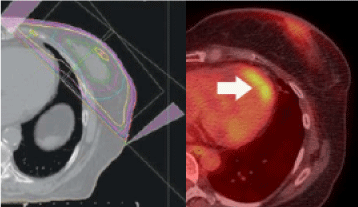

Post-radiation changes usually present with geographic/straightmargin features involving organs and anatomic structures subjected to this procedure such as lungs and heart. Pulmonary parenchyma involvement exhibits features of consolidation with fibrotic retraction with associated FDG uptake [5]. Patient’s history and recognition of a radiation portal pattern are essential to avoid misdiagnosis (Figure 13). Tracer uptake at the cardiac apex is related to the oblique/tangential radiation portals used for treatment of left breast cancer. Radiationinduced cardiac toxicity using myocardial imaging has demonstrated perfusion defects in 0% to 70% of patients from 1 to 18 years post- RT for left-sided breast cancer. Radiation therapy may cause perfusion defects, wall motion abnormalities, and subtle changes in cardiac ejection fraction from 0.5 to 2 years post-radiotherapy. These perfusion defects may persist from 3 to 6 years post-radiotherapy. Furthermore, new perfusion defects may appear 3 to 6 years post-treatment in patients who had initially normal cardiac SPECT scans after treatment [23,24]. It has been suggested that a radiation dose greater than 35 Gy is required to result in increased FDG activity [7] (Figure 14).

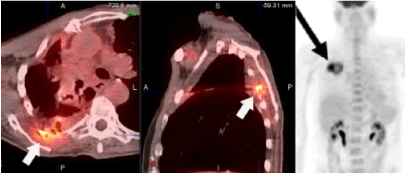

Talc pleurodesis is a procedure to treat persistent pneumothorax or recurrent pleural effusion. The pleural deposits stimulate a chronic granulomatous reaction that may be FDG-avid and thus mimic tumor recurrence on PET in patients treated for pulmonary or pleural malignancy (Figure 15). The characteristic high CT attenuation of talc density from matched FDG-avid curvi-linear features helps to differentiate this entity from pleural tumors [1,25].
Hypermetabolic lung clot as focal tracer accumulation without corresponding CT abnormality has been associated with emboli; an inflammatory reaction of a pre-existing vascular thrombus and iatrogenic from injection [26]. Occasionally a complicated tracer injection can induce an F-18 FDG-labeled platelet aggregated clot to embolize causing a focus of tracer accumulation in a vascular branch without corresponding CT findings of visible thrombus (Figure 16).
Mediastinal and cardiac procedures or other recent instrumentation and invasive procedures induce local and regional concentration of inflammatory cells exhibiting increased tracer uptake [5] on PET imaging. Curvi-linear and well-defined geometric features are strongly suggestive of sequela of man-made processes such as mediastinoscopy (Figure 17) and porcine pericardial patch repair (Figure 18).

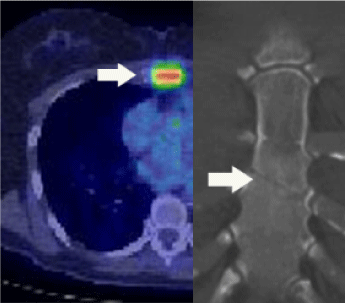

Osseous injury whether from trauma (fracture) and iatrogenic (sternotomy) can lead to increased tracer accumulation on PET due to buildup and high turnover of inflammatory cells during active osseous repair and healing processes [4,5,27] (Figure 19). The difference between SUV values of benign and malignant fractures has been shown to be statistically significant and therefore can aid in interpretation of abnormal uptake in the sternum [28]. A precise surgical/oncologic history is important when assessing the positive PET osseous findings.

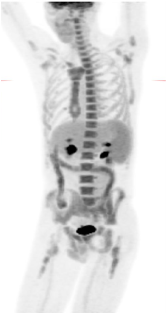

Reactive bone marrow process The FDG uptake in normal bone marrow is typically of low level. This uptake is increased diffusely with a homogenous or heterogenous manner in patients receiving chemotherapy and colony-stimulating factor medications [4] (Figure 20). The increased bone marrow activity may simulate malignant infiltration or interfere with the detection any underlying focal viable malignancy. Knowledge of the patient’s therapeutic regimen and interval of time between the use colony-stimulating factors and the PET/CT imaging is important to accurate evaluation the bone marrow uptake.
Benign Tumors

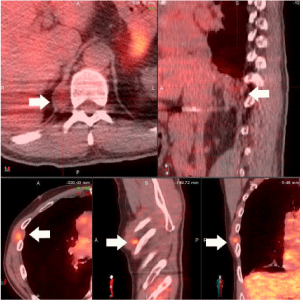

Schwannomas involve frequently spinal nerve roots, and nerves of the head and neck, and flexor surfaces of extremities. They are usually solitary in a patient population of third to fifth decades of life [29] with or without association with neurofibromatosis type 1. Their prominent F-18 FDG uptake, not related to size or tumor proliferation rate characterized by the Ki-67 index may be linked to overexpression of glucose transporter proteins by the tumor cells [30]. Thoracic schwannomas may involve the mediastinum or chest wall (Figure 21). PET/CT cannot distinguish schwannomas from malignant peripheral nerve sheath tumors or malignant nodal disease based solely on the uptake values. The diagnosis of schwannomas rests on histological identification.

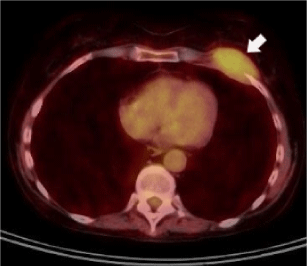

Fibromatosis is a group of benign soft tissue tumors with locally aggressive behavior characterized by proliferation of fibroblasts with mature collagen [31]. It is mostly associated with Gardner’s syndrome. This syndrome is a rare autosomal dominant inherited disorder characterized by intestinal polyposis, bone and soft-tissue tumors, including osteomas, epidermal inclusion cysts, lipomas, fibromas, gastric and duodenal polyposis, frequently complicated by subsequent desmoid tumors of the mesenteric and abdominal/chest wall (Figure 22). The PET uptake features are probably related to high cellularity and mitotic activity of fibromatosis.
Elastofibromas dorsi are benign soft tissue tumors characterized by fibroblastic proliferation and accumulation of abnormal elastic fibers with a reported prevalence on CT of 2% in the elderly population. These lesions are predominantly encountered in elderly women. They may be bilateral and asymmetrical in size in about 10% of all cases. MRI and CT show elongated soft tissue masses with combined characteristics of muscle and fat tissue. Elastofibromas are located between the ribs and serratus and latissimus dorsi musculature, deep to the inferior angle of the scapula. PET shows mild to moderate degree of F-18 FDG uptake. These cross-sectional and PET features are helpful to avoid unnecessary biopsy during evaluation of primary and secondary malignancies [32] (Figure 23).
Other benign bones tumors may be FDG-avid. They include osteoblastoma, chondromyxoid fibroma, aneurysmal bone cyst (Figure 24), giant cell and brown tumor. These lesions cannot be distinguished from malignant bone tumors based on SUV and additional imaging methods (MRI, CT, and radiograph) and ultimately tissue sampling may be required for further characterization [33,34].
Conclusion
Significant overlap regarding the appearance of inflammatory, infectious and malignant processes exists causing a potential problem in accurate PET/CT interpretation [35]. Benign processes are more inclined to exhibit symmetrical, curvilinear, geometric, anatomic and diffuse scintigraphic features. Malignant lesions usually show a random distribution with nodular, mass-like and amorphous PET features. Correlation with clinical, radiation and surgical history remains the mainstay of PET imaging as well as the importance of cross-check evaluation of the transmission CT of PET/CT, contemporary CT, MR and radiographs for the anatomic location and further imaging characterization of positive PET findings. For indeterminate cases, tissue sampling remains the only option to adequately identify these indeterminate lesions. The awareness of and familiarity with falsepositive findings should improve the PET/CT evaluation accuracy of the thorax.
MCQ’s
1. Abnormal areas of FDG accumulation are identified by
a. Comparing to gray matter brain activity
b. Any area of visualized tracer accumulation
c. Qualitatively comparing the tracer uptake with normal background activity (Introduction)
d. SUV >2.5 regardless of background activity
e. Anything with SUV >3
2. Myocardial hypermetabolism is:
a. From free fatty acids only
b. From glucose substrates only when non-fasting
c. From free fatty acids or glucose independent on the fasting or non-fasting status of the patient
d. Always abnormal and warrants an echocardiogram
e. From free fatty acids or glucose dependent on the fasting or nonfasting status of the patient (Page 1 of manuscript last paragraph)
3. Uptake in patients with Systemic IgG4-related sclerosing disease:
a. Is due to IgG4-positive plasma cell and lymphocyte infiltrating the parenchyma and responds well to steroids (Page 2 of manuscript last paragraph)
b. Suggests lymphomatous transformation and patient should be referred for chemotherapy
c. Indicates irreversible fibrosis not respondent to steroids
d. Has a classic appearance on PET/CT and should not warrant a biopsy
e. Is only seen in the pancreas
4. Focal hypermetabolism in thyroid:
a. Is considered normal
b. Is only seen in autoimmune thyroiditis
c. Indicates a hyper functioning nodule and can be left alone if the patient is asymptomatic
d. Needs further work up to differential malignancy from hyper functioning nodule (Manuscript page 3, paragraph 4)
e. Indicates prior I-131 therapy
5. Malignant features on PET/CT:
a. Symmetric distribution
b. Geographic areas of hypermetabolism
c. Smooth, band-like regions
d. Mass-like and amorphous (Manuscript page, last paragraph)
e. Puntate, discoid
